These high-performance RS-485 transceivers are designed for robust, long-distance data transmission over twisted-pair cables. Providing TIA/EIA-485A compliance, they feature low quiescent power and exceptional ESD protection up to 15 kV. Ideal for critical industrial environments such as energy meter networks, building automation, and motor control systems. The manual provides comprehensive specifications, thermal ratings, and application guides necessary for reliable integration into demanding utility and telecom infrastructure projects.

📄 Preview 📖 Table of Contents Contents PAGE OF 20

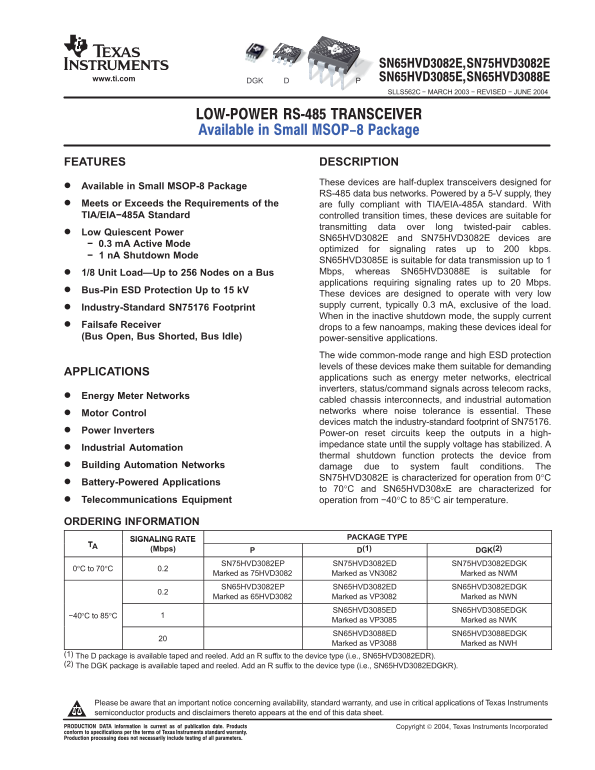

Page 1 Text Content

www.ti.com

SLLS562C − MARCH 2003 − REVISED − JUNE 2004

FEATURES DESCRIPTION

These devices are half-duplex transceivers designed for

Available in Small MSOP-8 Package

RS-485 data bus networks. Powered by a 5-V supply, they

Meets or Exceeds the Requirements of the are fully compliant with TIA/EIA-485A standard. With TIA/EIA−485A Standard controlled transition times, these devices are suitable for

transmitting data over long twisted-pair cables.

Low Quiescent Power

SN65HVD3082E and SN75HVD3082E devices are

− 0.3 m A Active Mode

optimized for signaling rates up to 200 kbps.

− 1 n A Shutdown Mode

SN65HVD3085E is suitable for data transmission up to 1 1/8 Unit Load—Up to 256 Nodes on a Bus Mbps, whereas SN65HVD3088E is suitable for applications requiring signaling rates up to 20 Mbps.

Bus-Pin ESD Protection Up to 15 k V

These devices are designed to operate with very low supply current, typically 0.3 m A, exclusive of the load.

Industry-Standard SN75176 Footprint

When in the inactive shutdown mode, the supply current

Failsafe Receiver

drops to a few nanoamps, making these devices ideal for

(Bus Open, Bus Shorted, Bus Idle) power-sensitive applications.

The wide common-mode range and high ESD protection levels of these devices make them suitable for demanding

APPLICATIONS

applications such as energy meter networks, electrical inverters, status/command signals across telecom racks,

Energy Meter Networks

cabled chassis interconnects, and industrial automation Motor Control networks where noise tolerance is essential. These devices match the industry-standard footprint of SN75176.

Power Inverters

Power-on reset circuits keep the outputs in a high- impedance state until the supply voltage has stabilized. A

Industrial Automation

thermal shutdown function protects the device from

Building Automation Networks damage due to system fault conditions. The

SN75HVD3082E is characterized for operation from 0°C

Battery-Powered Applications

to 70°C and SN65HVD308x E are characterized for

Telecommunications Equipment operation from −40°C to 85°C air temperature.

ORDERING INFORMATION

SIGNALING RATE PACKAGE TYPE

(Mbps) D(1) DGK(2)

SN75HVD3082EP SN75HVD3082ED SN75HVD3082EDGK

0°C to 70°C 0.2

Marked as 75HVD3082 Marked as VN3082 Marked as NWM SN65HVD3082EP SN65HVD3082ED SN65HVD3082EDGK

Marked as 65HVD3082 Marked as VP3082 Marked as NWN

SN65HVD3085ED SN65HVD3085EDGK

−40°C to 85°C

Marked as VP3085 Marked as NWK SN65HVD3088ED SN65HVD3088EDGK Marked as VP3088 Marked as NWH

(1) The D package is available taped and reeled. Add an R suffix to the device type (i.e., SN65HVD3082EDR). (2) The DGK package is available taped and reeled. Add an R suffix to the device type (i.e., SN65HVD3082EDGKR).

Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet. !)*+",*! - %.++!, - *) /.%,*! 0,1 +*0.%,- Copyright  2004, Texas Instruments Incorporated
