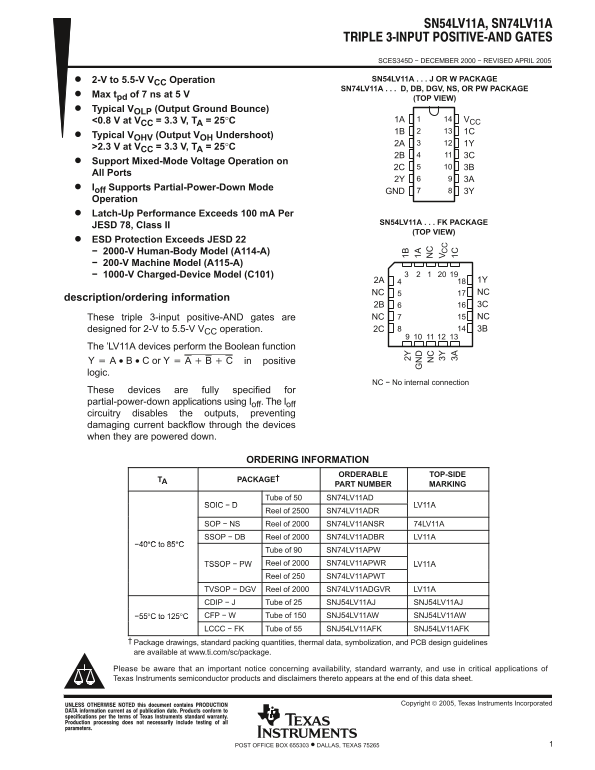

Texas Instruments SN54LV11A SN74LV11A Data Sheet Manual
Summary
This datasheet details a robust series of positive-AND logic gates engineered for reliable operation in wide voltage ranges (2V to 5.5V). It provides hardware designers with comprehensive technical specifications, including performance data, ESD protection ratings, power-down support, and detailed thermal characteristics. The manual serves as an essential guide for embedded system engineers and circuit developers who require high-quality, low-power switching logic that performs reliably across various environmental temperatures and mixed-mode voltage applications.
Manual Details
| Brand | Texas Instruments |
|---|---|
| Pages | 15 |
| File Size | 506.98 KB |
| Published | June 15, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What type of logic function does the LV11A perform?
The 'LV11A devices perform the Boolean function Y = A • B • C in positive logic.
Is this device suitable for partial-power-down applications?
Yes, these devices are fully specified for partial-power-down applications using the I circuitry.
What is the required supply voltage range (VCC)?
The absolute maximum operating VCC range is -0.5 V to 7 V.
How durable are the storage temperature ratings?
Some variants, like SNJ54LV11AFK, have a wide storage range of -55°C to 125°C.
