Texas Instruments SN54HC266 SN74HC266 Data Sheet Manual

Summary

Designed for engineers developing digital logic circuits, this integrated circuit provides four independent 2-input exclusive-NOR gates with versatile open-drain outputs. The component features low power consumption and operates across a wide voltage range (2V to 6V). This technical manual offers comprehensive details on electrical specifications, including absolute maximum ratings, critical operating conditions like transition times, detailed ordering information for various packages (DIP/SOIC), and guidelines essential for accurate PCB design and reliable circuit implementation.

📄 Preview PAGE OF 12

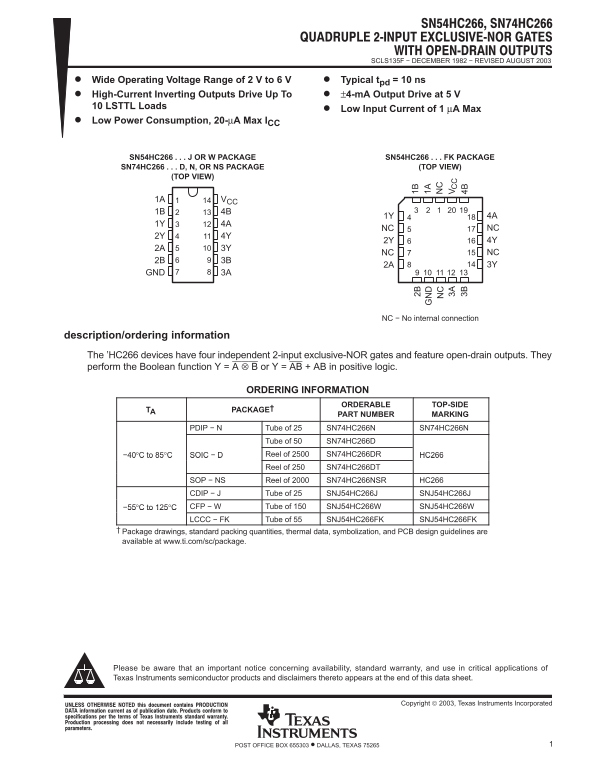

Page 1 Text Content

SCLS135F − DECEMBER 1982 − REVISED AUGUST 2003

Wide Operating Voltage Range of 2 V to 6 V Typical tpd = 10 ns High-Current Inverting Outputs Drive Up To ±4-m A Output Drive at 5 V 10 LSTTL Loads

Low Input Current of 1 µA Max

Low Power Consumption, 20-µA Max ICC

SN54HC266 J OR W PACKAGE SN54HC266 FK PACKAGE SN74HC266 D, N, OR NS PACKAGE (TOP VIEW)

(TOP VIEW)

1A VCC

NC NC

NC NC

GND 3A

NC − No internal connection

description/ordering information The ’HC266 devices have four independent 2-input exclusive-NOR gates and feature open-drain outputs. They perform the Boolean function Y = A ⊗ B or Y = AB + AB in positive logic.

ORDERING INFORMATION

ORDERABLE TOP-SIDE

TA PACKAGE†

PART NUMBER MARKING 1B

PDIP − N Tube of 25 SN74HC266N SN74HC266N 1A

Tube of 50 SN74HC266D

Reel of 2500 SN74HC266DR 3A

−40°C to 85°C SOIC − D HC266

Reel of 250 SN74HC266DT

SOP − NS Reel of 2000 SN74HC266NSR HC266 CDIP − J Tube of 25 SNJ54HC266J SNJ54HC266J −55°C to 125°C CFP − W Tube of 150 SNJ54HC266W SNJ54HC266W LCCC − FK Tube of 55 SNJ54HC266FK SNJ54HC266FK

Package drawings, standard packing quantities, thermal data, symbolization, and PCB design guidelines are available at www.ti.com/sc/package.

Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.

Copyright  2003, Texas Instruments Incorporated     !"#$%& "!&'&

1POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

Page Summary Contents For Texas Instruments SN54HC266 SN74HC266 Data Sheet Manual

Page 1 SCLS135F − DECEMBER 1982 − REVISED AUGUST 2003 Wide Operating Voltage Range of 2 V to 6 V Typical tpd = 10 ns High-Current Inverting Outputs Drive Up To ±4-m A Output Drive at 5 V 10 LSTTL Loads Low I...
Page 2 SCLS135F − DECEMBER 1982 − REVISED AUGUST 2003 FUNCTION TABLE INPUTS OUTPUT logic diagram, each gate (positive logic) absolute maximum ratings over operating free-air temperature range (unless otherwi...
Page 3 SCLS135F − DECEMBER 1982 − REVISED AUGUST 2003 electrical characteristics over recommended operating free-air temperature range (unless otherwise noted) TA = 25°C SN54HC266 SN74HC266 PARAMETER TEST CO...
Page 4 SCLS135F − DECEMBER 1982 − REVISED AUGUST 2003 PARAMETER MEASUREMENT INFORMATION VCC RL = 1 kΩ From Output Test Input 50% 50% Under Test Point CL = 50 p F t PLH t PHL (see Note A) In-Phase Output LOAD...
Page 5 IMPORTANT NOTICE Texas Instruments Incorporated and its subsidiaries (TI) reserve the to make corrections, modifications, enhancements, improvements, and other changes to its products and services at ...
Page 6 PACKAGE OPTION ADDENDUM www.ti.com 4-Jun-2007 PACKAGING INFORMATION Orderable Device Status Package Package Pins Package Eco Plan Lead/Ball Finish MSL Peak Temp Type Drawing Qty SN74HC266D ACTIVE SOIC...
Page 7 PACKAGE OPTION ADDENDUM www.ti.com 4-Jun-2007 provided. TI bases its knowledge and belief on information provided by third parties, and makes no representation or warranty as to the accuracy of such i...
Page 8 PACKAGE MATERIALS INFORMATION www.ti.com 11-Mar-2008 TAPE AND REEL INFORMATION *All dimensions are nominal Device Package Package Pins SPQ Reel Reel A0 (mm) B0 (mm) K0 (mm) P1 Pin1 Type Drawing Diamet...
Page 9 PACKAGE MATERIALS INFORMATION www.ti.com 11-Mar-2008 *All dimensions are nominal Device Package Type Package Drawing Pins SPQ Length (mm) Width (mm) Height (mm) SN74HC266DR SOIC 346.0 346.0 33.0 SN74H...
