Texas Instruments SN54AC86 SN74AC86 Data Sheet Manual

Summary

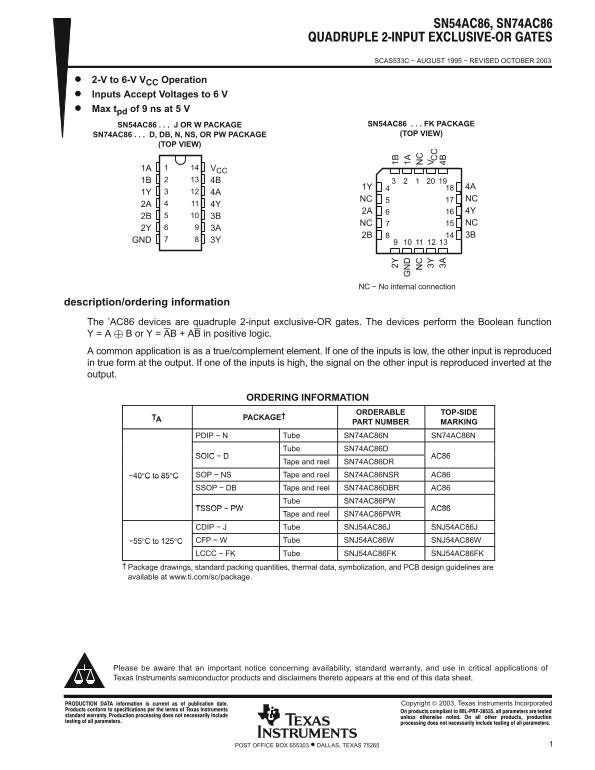

This datasheet from Texas Instruments documents the SN54AC86 and SN74AC86 quadruple 2-input exclusive-OR gates fabricated in advanced CMOS technology. The devices operate over a 2 V to 6 V supply range with a maximum propagation delay of 9 ns at 5 V and feature inputs that tolerate voltages up to 6 V. The document includes comprehensive ordering information for multiple package options including PDIP, SOIC, SOP, SSOP, TSSOP, CDIP, CFP, and LCCC, covering both commercial (minus 40 to 85 degrees C
