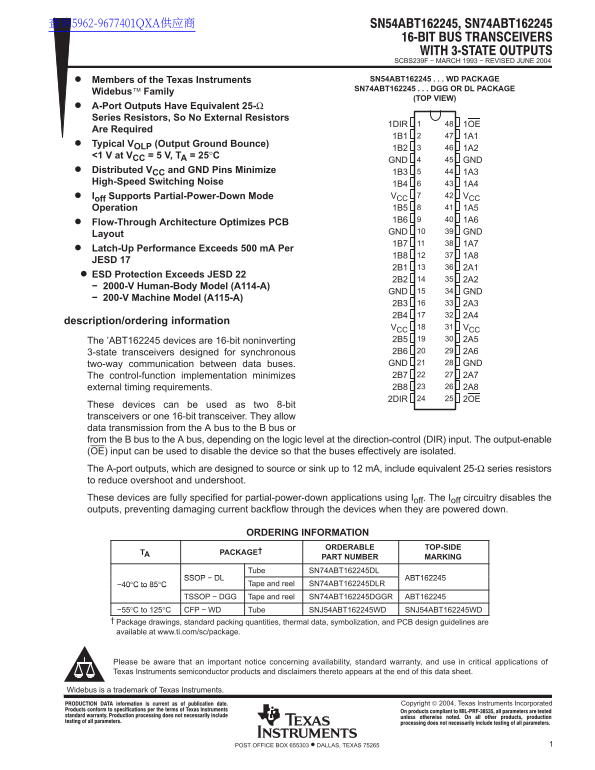

Texas Instruments SN54ABT162245, SN74ABT162245 Data Sheet Manual

查询5962-9677401QXA供应商

SCBS239F − MARCH 1993 − REVISED JUNE 2004

Members of the Texas Instruments SN54ABT162245 WD PACKAGE SN74ABT162245 DGG OR DL PACKAGE

Widebus Family

(TOP VIEW)

A-Port Outputs Have Equivalent 25-Ω Series Resistors, So No External Resistors

1DIR 1OE

Are Required

Typical VOLP (Output Ground Bounce)

<1 V at VCC = 5 V, TA = 25°C

GND GND

Distributed VCC and GND Pins Minimize 1B3 1A3 High-Speed Switching Noise 1B4 1A4

Ioff Supports Partial-Power-Down Mode VCC VCC Operation 1B5 1A5 1B6 1A6

Flow-Through Architecture Optimizes PCB

Layout GND GND 1B7 1A7

Latch-Up Performance Exceeds 500 m A Per

JESD 17

ESD Protection Exceeds JESD 22

− 2000-V Human-Body Model (A114-A)

GND GND

− 200-V Machine Model (A115-A)

description/ordering information

VCC VCC The ’ABT162245 devices are 16-bit noninverting 2B5 2A5 3-state transceivers designed for synchronous 2B6 2A6 two-way communication between data buses. GND GND The control-function implementation minimizes 2B7 2A7 external timing requirements. 2B8 2A8 2DIR 2OE

These devices can be used as two 8-bit transceivers or one 16-bit transceiver. They allow data transmission from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the direction-control (DIR) input. The output-enable (OE) input can be used to disable the device so that the buses effectively are isolated. The A-port outputs, which are designed to source or sink up to 12 m A, include equivalent 25-Ω series resistors to reduce overshoot and undershoot. These devices are fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the devices when they are powered down.

ORDERING INFORMATION

ORDERABLE TOP-SIDE

TA PACKAGE†

PART NUMBER MARKING

Tube SN74ABT162245DL

SSOP − DL ABT162245

−40°C to 85°C Tape and reel SN74ABT162245DLR

TSSOP − DGG Tape and reel SN74ABT162245DGGR ABT162245

−55°C to 125°C CFP − WD Tube SNJ54ABT162245WD SNJ54ABT162245WD Package drawings, standard packing quantities, thermal data, symbolization, and PCB design guidelines are available at www.ti.com/sc/package.

Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.

Widebus is a trademark of Texas Instruments.
