Texas Instruments SN5474, SN54LS74A, SN54S74, SN7474, SN74LS74A, SN74S74 Data Sheet Manual

Summary

Essential technical guide covering the specifications and packaging options for foundational D-Type Flip-Flops (SN54 series). This addendum is crucial for hardware engineers and designers working with digital logic circuits, providing detailed status updates on active and obsolete parts across various packages (SOIC, SSOP, CDIP). Use this manual to ensure component compatibility, identify proper replacements, and select the perfectly specified chip needed for reliable electronic system development.

📄 Preview ‹ PAGE OF 18 ›
‹ Texas Instruments SN5474, SN54LS74A, SN54S74, SN7474, SN74LS74A, SN74S74 Data Sheet Manual - Page 1 ›

Page 1 Text Content

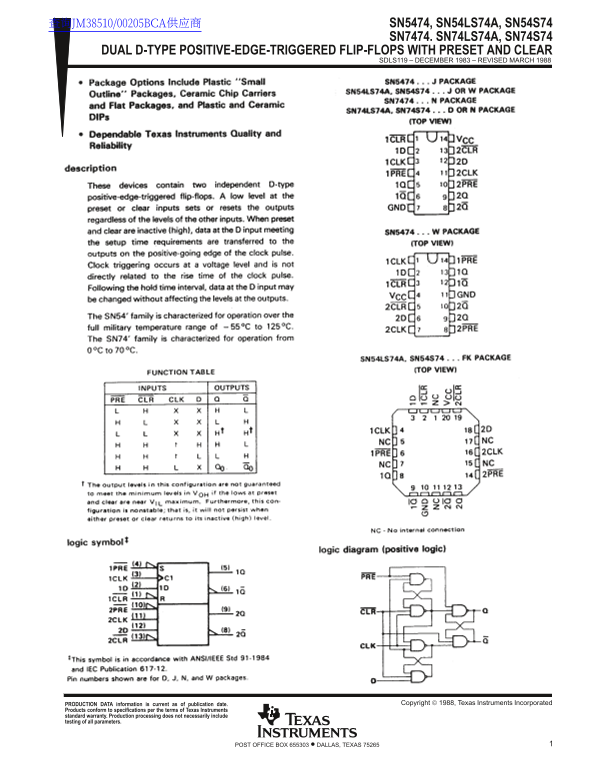

查询JM38510/00205BCA供应商 SN5474, SN54LS74A, SN54S74

SN7474. SN74LS74A, SN74S74

DUAL D-TYPE POSITIVE-EDGE-TRIGGERED FLIP-FLOPS WITH PRESET AND CLEAR

SDLS119 – DECEMBER 1983 – REVISED MARCH 1988

Copyright  1988, Texas Instruments Incorporated PRODUCTION DATA information is current as of publication date.

Products conform to specifications per the terms of Texas Instruments standard warranty. Production processing does not necessarily include testing of all parameters.

1POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
