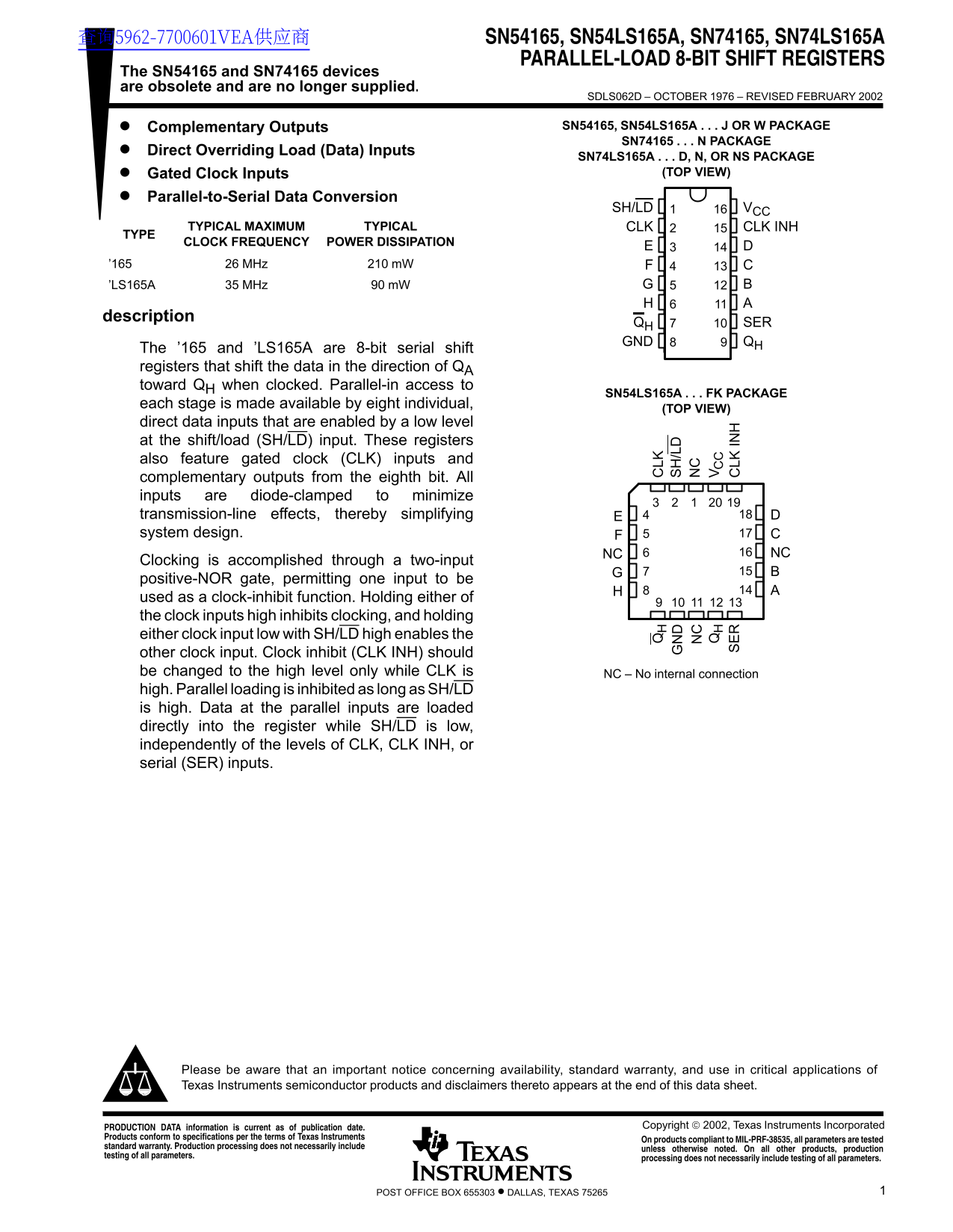

Texas Instruments SN54165, SN54LS165A, SN74165, SN74LS165A Data Sheet Manual

查询5962-7700601VEA供应商 SN54165, SN54LS165A, SN74165, SN74LS165A

PARALLEL-LOAD 8-BIT SHIFT REGISTERS

The SN54165 and SN74165 devices are obsolete and are no longer supplied.

SDLS062D – OCTOBER 1976 – REVISED FEBRUARY 2002

Complementary Outputs SN54165, SN54LS165A J OR W PACKAGE

SN74165 N PACKAGE

Direct Overriding Load (Data) Inputs

SN74LS165A D, N, OR NS PACKAGE

Gated Clock Inputs (TOP VIEW)

Parallel-to-Serial Data Conversion

SH/LD VCC

TYPICAL MAXIMUM TYPICAL CLK CLK INH

CLOCK FREQUENCY POWER DISSIPATION

’165 26 MHz 210 m W ’LS165A 35 MHz 90 m W

description

QH SER

GND QH

The ’165 and ’LS165A are 8-bit serial shift registers that shift the data in the direction of QA toward QH when clocked. Parallel-in access to

SN54LS165A FK PACKAGE

each stage is made available by eight individual,

(TOP VIEW)

direct data inputs that are enabled by a low level at the shift/load (SH/LD) input. These registers also feature gated clock (CLK) inputs and complementary outputs from the eighth bit. All inputs are diode-clamped to minimize transmission-line effects, thereby simplifying system design.

NC NC

Clocking is accomplished through a two-input positive-NOR gate, permitting one input to be used as a clock-inhibit function. Holding either of the clock inputs high inhibits clocking, and holding either clock input low with SH/LD high enables the other clock input. Clock inhibit (CLK INH) should

be changed to the high level only while CLK is NC – No internal connection

high. Parallel loading is inhibited as long as SH/LD is high. Data at the parallel inputs are loaded directly into the register while SH/LD is low,

LK IN

independently of the levels of CLK, CLK INH, or serial (SER) inputs.
