Texas Instruments SLTS179A Data Sheet / Manual
Summary
Discover the PT6360 series of integrated switching regulators, engineered for high-performance power management in compact electronic designs. These modules take a 12V input to provide flexible outputs ranging from 1.0 VDC up to 11A while maintaining an extremely low profile (8mm). The datasheet provides comprehensive technical documentation detailing operational parameters, including adjustable voltage control, remote sense capability, high efficiency metrics, and specific pin-out information. This guide is essential for engineers designing advanced systems utilizing DSPs and microprocessors where board space is limited and reliable power density is critical.

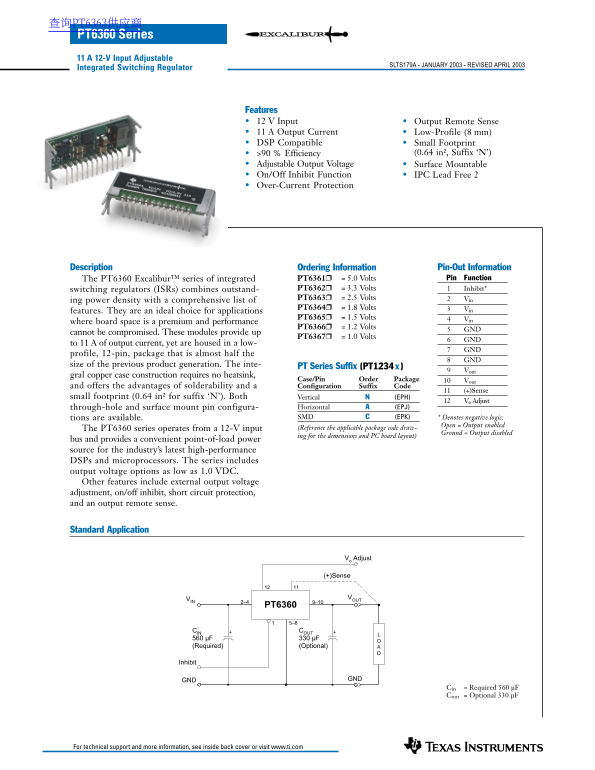

Page 1 Text Content
查询PT6363供应商 PT6360 Series 11 A 12-V Input Adjustable
SLTS179A - JANUARY 2003 - REVISED APRIL 2003
Integrated Switching Regulator
Features 12 V Input Output Remote Sense 11 A Output Current Low-Profile (8 mm) DSP Compatible Small Footprint
>90 % Efficiency (0.64 in², Suffix ‘N’)
Adjustable Output Voltage Surface Mountable On/Off Inhibit Function IPC Lead Free 2 Over-Current Protection
Description Ordering Information Pin-Out Information
The PT6360 Excalibur™ series of integrated PT6361 = 5.0 Volts Pin Function
switching regulators (ISRs) combines outstand- PT6362 = 3.3 Volts Inhibit* PT6363 = 2.5 Volts Vin
ing power density with a comprehensive list of
PT6364 = 1.8 Volts Vin
features. They are an ideal choice for applications
PT6365 = 1.5 Volts Vin
where board space is a premium and performance
PT6366 = 1.2 Volts
cannot be compromised. These modules provide up
PT6367 = 1.0 Volts
to 11 A of output current, yet are housed in a low-
profile, 12-pin, package that is almost half the
size of the previous product generation. The inte- PT Series Suffix (PT1234x)
gral copper case construction requires no heatsink,
Case/Pin Order Package Vout and offers the advantages of solderability and a Configuration Suffix Code
(+)Sense
small footprint (0.64 in² for suffix ‘N’). Both Vertical (EPH)
Vo Adjust
through-hole and surface mount pin configura- Horizontal (EPJ) tions are available. SMD (EPK) * Denotes negative logic:
Open = Output enabled
The PT6360 series operates from a 12-V input (Reference the applicable package code draw-
Ground = Output disabled
ing for the dimensions and PC board layout)
bus and provides a convenient point-of-load power source for the industry’s latest high-performance DSPs and microprocessors. The series includes output voltage options as low as 1.0 VDC. Other features include external output voltage adjustment, on/off inhibit, short circuit protection, and an output remote sense.
Standard Application
Vo Adjust
(+)Sense
VIN VOUT
PT6360 5–8
CIN COUT 560 µF 330 µF (Required) (Optional)
Inhibit
GND GND
Cin = Required 560 µF Cout = Optional 330 µF
For technical support and more information, see inside back cover or visit www.ti.com
Page Summary Contents For Texas Instruments SLTS179A Data Sheet / Manual
Manual Details
| Brand | Texas Instruments |
|---|---|
| Pages | 14 |
| File Size | 290.53 KB |
| Published | June 18, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What type of input power does the PT6360 series require?
The PT6360 series operates from a 12-V input bus.
Can the output voltage be adjusted, and what is the lowest possible setting?
Yes, external output voltage adjustment is available, and the series includes options as low as 1.0 VDC.
Does the module require an external heatsink for cooling?
No, its integral copper case construction requires no separate heatsink.
Is this regulator suitable for space-constrained applications?
Yes, the modules are designed with a small footprint (0.64 in² for suffix ‘N’) and low profile (8 mm).
What is required for proper operation regarding capacitance?
A 560 µF electrolytic input capacitor is required for proper operation.
