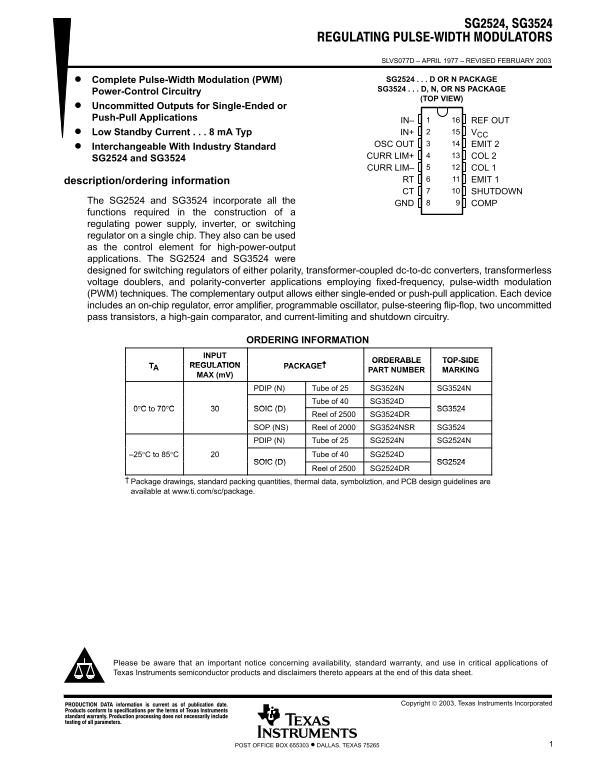

Texas Instruments SG2524 SG3524 Data Sheet Manual
Summary
TI SG2524/SG3524 are monolithic PWM power-control ICs integrating regulator, error amplifier, programmable oscillator, dual pass transistors, comparator, and current-limit/shutdown circuitry. They support fixed-frequency PWM for switching regulators, DC-DC converters, and voltage doublers. Available in PDIP/SOIC/SOP, they target power supply designers for industrial and consumer systems.
Manual Details
| Brand | Texas Instruments |
|---|---|
| Pages | 23 |
| File Size | 711.03 KB |
| Published | June 17, 2026 |
2 views
Enter the captcha to get the download link:
Frequently Asked Questions
What supply voltage is needed to power the SG3524?
Maximum supply voltage is 40 V; it can also run from a fixed 5-V supply via REF OUT.
What package types are available for the SG3524?
It is offered in PDIP (N), SOIC (D), and SOP (NS) packages.
Can the SG3524 be used for push-pull applications?
Yes, its complementary outputs support both single-ended and push-pull use.
