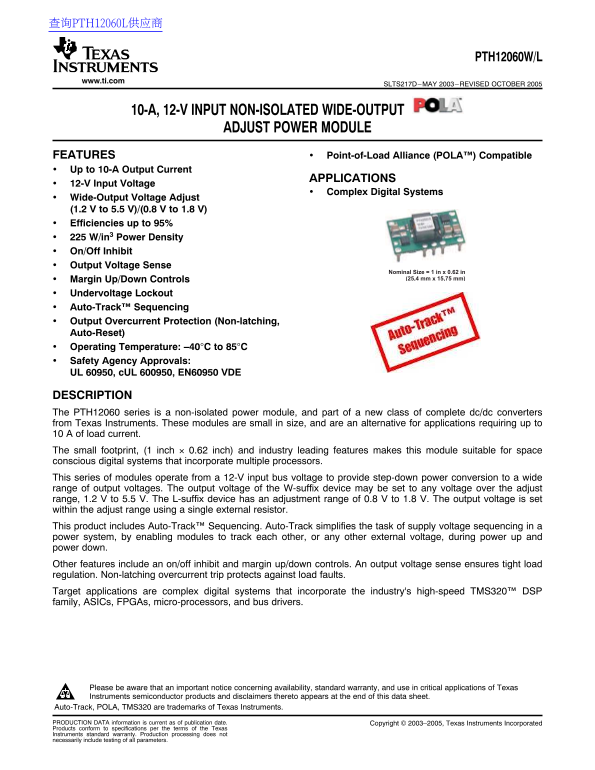

Texas Instruments PTH12060W L 10-10, 12-V Input Non-Isolated Wide-Output Adjustable Power Module Data Sheet User Manual
Summary
The PTH12060 series is a compact, non-isolated power module providing high-efficiency step-down DC/DC conversion of up to 10A from a 12V input. This solution is engineered for space-constrained digital systems that rely on complex processors like DSPs and FPGAs. The manual details advanced functionality crucial for modern electronics, including Auto-Track sequencing, wide adjustable voltage output (e.g., 1.2 V–5.5 V), and comprehensive protection features like overcurrent trip, ensuring reliable power delivery in demanding applications.
Manual Details
| Brand | Texas Instruments |
|---|---|
| Pages | 30 |
| File Size | 1.02 MB |
| Published | May 31, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the input voltage required for this power module?
The modules operate from a 12-V input bus voltage.
How do I set the desired output voltage range?
The output voltage is set using a single external resistor within the specified adjust range (e.g., 1.2 V to 5.5 V).
What is Auto-Track™ Sequencing used for?
It simplifies supply voltage sequencing by enabling modules to track each other during power up and power down.
How should I handle or store the device to prevent damage?
Short the leads together or place the device in conductive foam during storage or handling to prevent electrostatic damage.
