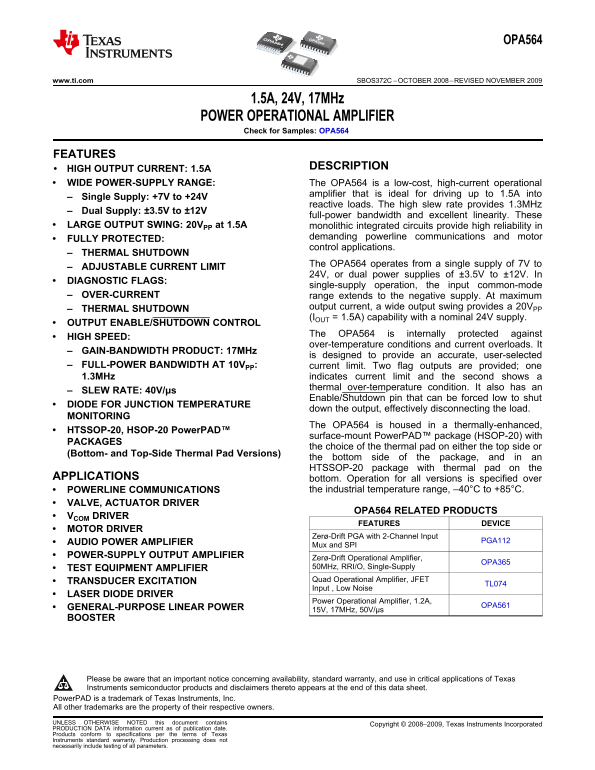

Texas Instruments OPA564 Data Sheet/Manual
Summary
The OPA564 is a robust, high-current operational amplifier designed for demanding applications like powerline communications and motor/actuator driving. This manual provides comprehensive details on its performance characteristics, including 1.5A output capability, large swing voltage (20V), and wide supply range. Users can rely on its integrated features, such as thermal shutdown, adjustable current limit, and built-in over-current protection, making it ideal for engineers requiring high reliability in industrial control systems operating across -40°C to +85°C.
Manual Details
| Brand | Texas Instruments |
|---|---|
| Pages | 32 |
| File Size | 1.06 MB |
| Published | June 17, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the OPA564's operating voltage range?
It can operate from a single supply of +7V to +24V or dual supplies of ±3.5V to ±12V.
How high is the maximum output current?
The device can provide up to 1.5A into reactive loads.
What protection features does the OPA564 include?
It includes internal protection against thermal shutdown, over-current range, and has an Output Enable/Shutdown pin.
Is the OPA564 resistant to ESD damage?
The manual notes that the integrated circuit can be damaged by ESD and recommends appropriate handling precautions.
