Texas Instruments ONET2591TA Data Sheet/Manual

Summary

Engineered for high-speed optical networking, this 2.5 Gbps transimpedance amplifier features critical functions like Automatic Gain Control (AGC), Received Signal Strength Indication (RSSI), and ultra-low input noise. Ideal for designing robust receivers in telecommunication systems (SONET/SDH, Fibre Channel, Gigabit Ethernet). The manual provides complete technical specifications, detailed block diagrams of the signal path, filter circuits, and control block functionality required by electrical engineers integrating this component into demanding high-bandwidth applications.

📄 Preview PAGE OF 15

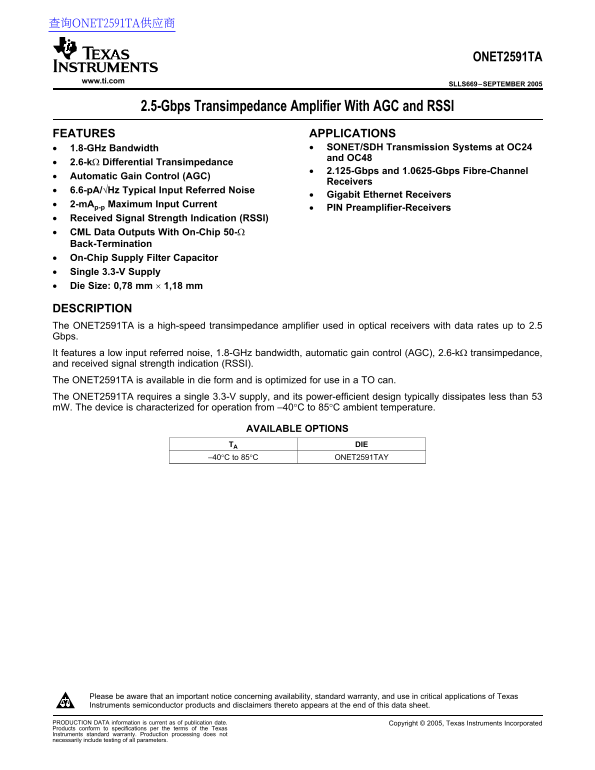

Page 1 Text Content

查询ONET2591TA供应商

ONET2591TA

www.ti.com

SLLS669–SEPTEMBER

2.5-Gbps Transimpedance Amplifier With AGC and RSSI

FEATURES APPLICATIONS

1.8-GHz Bandwidth SONET/SDH Transmission Systems at OC24•

and OC48•

2.6-kΩ Differential Transimpedance

2.125-Gbps and 1.0625-Gbps Fibre-Channel•

Automatic Gain Control (AGC)

Receivers

6.6-p A/√Hz Typical Input Referred Noise

Gigabit Ethernet Receivers

2-m Ap-p Maximum Input Current

PIN Preamplifier-Receivers

Received Signal Strength Indication (RSSI)

CML Data Outputs With On-Chip 50-Ω

Back-Termination

On-Chip Supply Filter Capacitor

Single 3.3-V Supply

Die Size: 0,78 mm 1,18 mm

DESCRIPTION

The ONET2591TA is high-speed transimpedance amplifier used in optical receivers with data rates up to 2.5

Gbps.

It features low input referred noise, 1.8-GHz bandwidth, automatic gain control (AGC), 2.6-kΩ transimpedance,

and received signal strength indication (RSSI).

The ONET2591TA is available in die form and is optimized for use in TO can.

The ONET2591TA requires single 3.3-V supply, and its power-efficient design typically dissipates less than

m W. The device is characterized for operation from –40°C to 85°C ambient temperature.

AVAILABLE OPTIONS

TA DIE

–40°C to 85°C ONET2591TAY

Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas

Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.

PRODUCTION DATA information is current as of publication date. Copyright 2005, Texas Instruments Incorporated

Products conform to specifications per the terms of the Texas

Instruments standard warranty. Production processing does not

necessarily include testing of all parameters.

Page Summary Contents For Texas Instruments ONET2591TA Data Sheet/Manual

Page 1 查询ONET2591TA供应商 ONET2591TA www.ti.com SLLS669–SEPTEMBER 2.5-Gbps Transimpedance Amplifier With AGC and RSSI FEATURES APPLICATIONS 1.8-GHz Bandwidth SONET/SDH Transmission Systems at OC24• and OC48• 2....
Page 2 ONET2591TA www.ti.com SLLS669–SEPTEMBER BLOCK DIAGRAM The ONET2591TA is high-performance, 2.5-Gbps transimpedance amplifier consisting of the signal path, supply filter, control block for dc input cur...
Page 3 ONET2591TA www.ti.com SLLS669–SEPTEMBER FILTER CIRCUITRY The filter pin provides filtered VCC for the photodiode bias. The on-chip, low-pass filter for the photodiode VCC is implemented using filter r...
Page 4 ONET2591TA www.ti.com SLLS669–SEPTEMBER BOND PAD ASSIGNMENT The ONET2591TA is available as bare die. The locations of the bond pads are shown in the following figure. GND GND GND GND OUT+ OUT– BOND PA...
Page 5 ONET2591TA www.ti.com SLLS669–SEPTEMBER ABSOLUTE MAXIMUM RATINGS over operating free-air temperature range (unless otherwise noted) VCC Supply voltage –0.3 to VFILTER, VOUT+, VOUT–, Voltage at FILTER,...
Page 6 ONET2591TA www.ti.com SLLS669–SEPTEMBER In t R ef er re is rr en t − AC ELECTRICAL CHARACTERISTICS over recommended operating conditions (unless otherwise noted). Typical values are at VCC 3.3 and TA ...
Page 7 ONET2591TA www.ti.com an id th SLLS669–SEPTEMBER Tr an si ed an ce TYPICAL CHARACTERISTICS (continued) Typical operating condition is at VCC 3.3 and TA 25°C. SMALL-SIGNAL TRANSIMPEDANCE TRANSIMPEDANCE...
Page 8 ONET2591TA www.ti.com SLLS669–SEPTEMBER if fe re ti al tp lta 5m /D iv I O tp t C rr en t − TYPICAL CHARACTERISTICS (continued) Typical operating condition is at VCC 3.3 and TA 25°C. RSSI OUTPUT CURRE...
Page 9 ONET2591TA www.ti.com SLLS669–SEPTEMBER if fe re ti al tp lta /D iv TYPICAL CHARACTERISTICS (continued) Typical operating condition is at VCC 3.3 and TA 25°C. OUTPUT EYE DIAGRAM AT 2.5 GBPS AND 1-m Ap...
Page 10 ONET2591TA www.ti.com SLLS669–SEPTEMBER APPLICATION INFORMATION Figure shows an application circuit for an ONET2591TA being used in typical fiber-optic receiver. The ONET2591TA converts the electrical...
Page 11 ONET2591TA www.ti.com SLLS669–SEPTEMBER CHIP DIMENSIONS AND PAD LOCATIONS Overall chip dimensions and depiction of the bond-pad locations are given in Figure 15. Layout of the chip componentry is show...
Page 12 ONET2591TA www.ti.com SLLS669–SEPTEMBER Pad Locations and Descriptions for the ONET2591TA COORDINATES PAD SYMBOL TYPE DESCRIPTION GND Supply Circuit ground GND Supply Circuit ground OUT+ Analog output...
Page 13 ONET2591TA www.ti.com SLLS669–SEPTEMBER VCC OUT+ Figure 18. TO46 4-Pin Layout Example Using the ONET2591TA 13Submit Documentation Feedback
Page 14 PACKAGE OPTION ADDENDUM www.ti.com 2-Feb-2006 PACKAGING INFORMATION Orderable Device Status Package Package Pins Package Eco Plan Lead/Ball Finish MSL Peak Temp Type Drawing Qty ONET2591TAY ACTIVE XCE...
Page 15 IMPORTANT NOTICE Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, modifications, enhancements, improvements, and other changes to its products and servic...

Manual Details

Brand Texas Instruments
Pages 15
File Size 940.83 KB
Published June 20, 2026
1 views

Enter the captcha to get the download link:

captcha

Frequently Asked Questions

What is the maximum data rate supported by this amplifier?

The ONET2591TA supports data rates up to 2.5 Gbps.

What kind of power supply voltage does the device require?

It requires a single 3.3-V supply for operation.

How do I adjust the input filter cutoff frequency?

If a lower cutoff frequency is needed, an external capacitor can be connected to one of the FILTER pins.

What are its automatic control functions?

It features Automatic Gain Control (AGC) and Received Signal Strength Indication (RSSI).

What is the operating temperature range?

The device is characterized for operation from –40°C to 85°C ambient temperature.
