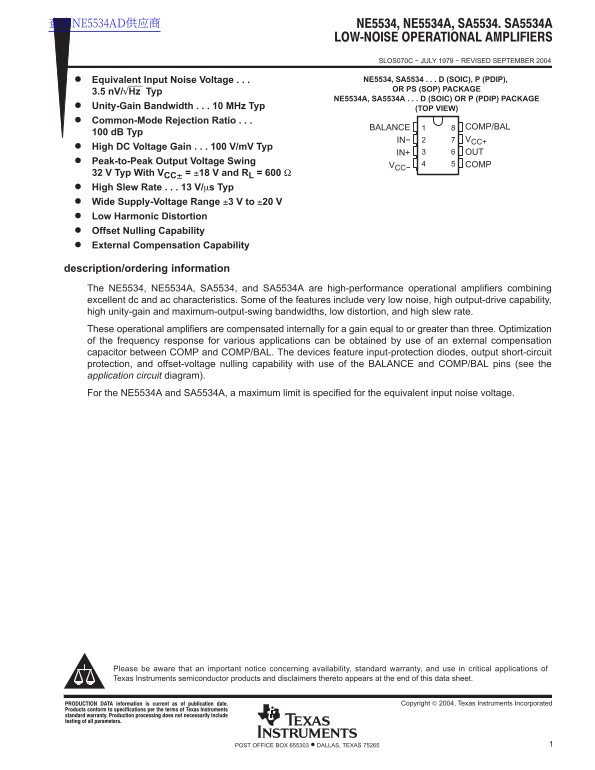

Equivalent Input Noise Voltage NE5534, SA5534 D (SOIC), P (PDIP), OR PS (SOP) PACKAGE
3.5 n V/Hz Typ
NE5534A, SA5534A D (SOIC) OR P (PDIP) PACKAGE
Unity-Gain Bandwidth 10 MHz Typ (TOP VIEW) Common-Mode Rejection Ratio
BALANCE COMP/BAL
100 d B Typ
IN− VCC+
High DC Voltage Gain 100 V/m V Typ
IN+ OUT
Peak-to-Peak Output Voltage Swing
VCC− COMP
32 V Typ With VCC = 18 V and RL = 600 High Slew Rate 13 V/s Typ Wide Supply-Voltage Range 3 V to 20 V Low Harmonic Distortion Offset Nulling Capability External Compensation Capability
description/ordering information The NE5534, NE5534A, SA5534, and SA5534A are high-performance operational amplifiers combining excellent dc and ac characteristics. Some of the features include very low noise, high output-drive capability, high unity-gain and maximum-output-swing bandwidths, low distortion, and high slew rate. These operational amplifiers are compensated internally for a gain equal to or greater than three. Optimization of the frequency response for various applications can be obtained by use of an external compensation capacitor between COMP and COMP/BAL. The devices feature input-protection diodes, output short-circuit protection, and offset-voltage nulling capability with use of the BALANCE and COMP/BAL pins (see the application circuit diagram). For the NE5534A and SA5534A, a maximum limit is specified for the equivalent input noise voltage.
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
Copyright 2004, Texas Instruments Incorporated !"# $"%&! ' #
1POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
