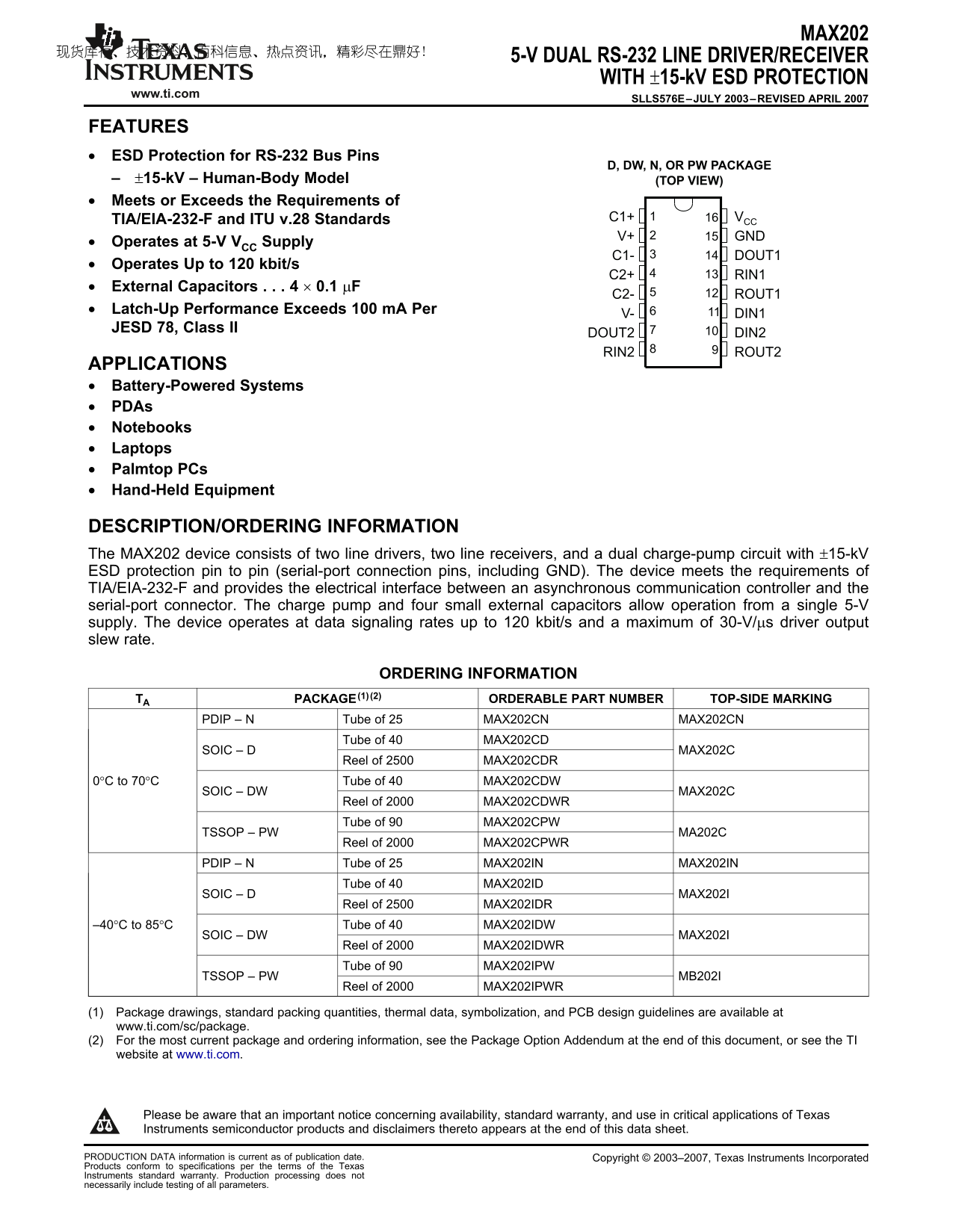

Page 1 Text Content
MAX202
5-V DUAL RS-232 LINE DRIVER/RECEIVER
WITH ±15-k V ESD PROTECTION
www.ti.com
SLLS576E–JULY 2003–REVISED APRIL
FEATURES
ESD Protection for RS-232 Bus Pins
D, DW, N, OR PW PACKAGE
±15-k V Human-Body Model (TOP VIEW)
Meets or Exceeds the Requirements of
TIA/EIA-232-F and ITU v.28 Standards C1+
V+ GND
Operates at 5-V VCC Supply
C1- DOUT1
Operates Up to kbit/s
C2+ RIN1
External Capacitors 0.1 µF
C2- ROUT1
Latch-Up Performance Exceeds m A Per
V- DIN1
JESD 78, Class II
DOUT2 DIN2 RIN2 ROUT2
APPLICATIONS
Battery-Powered Systems
Notebooks
Laptops
Palmtop PCs
Hand-Held Equipment
DESCRIPTION/ORDERING INFORMATION
The MAX202 device consists of two line drivers, two line receivers, and dual charge-pump circuit with ±15-k V
ESD protection pin to pin (serial-port connection pins, including GND). The device meets the requirements of
TIA/EIA-232-F and provides the electrical interface between an asynchronous communication controller and the
serial-port connector. The charge pump and four small external capacitors allow operation from single 5-V
supply. The device operates at data signaling rates up to kbit/s and maximum of 30-V/µs driver output
slew rate.
ORDERING INFORMATION
TA PACKAGE ORDERABLE PART NUMBER TOP-SIDE MARKING
PDIP Tube of MAX202CN MAX202CN
Tube of MAX202CD
SOIC MAX202C
Reel of MAX202CDR
0°C to 70°C Tube of MAX202CDW
SOIC DW MAX202C
Reel of MAX202CDWR
Tube of MAX202CPW
TSSOP PW MA202C
Reel of MAX202CPWR
PDIP Tube of MAX202IN MAX202IN
Tube of MAX202ID
SOIC MAX202I
Reel of MAX202IDR
–40°C to 85°C Tube of MAX202IDW
SOIC DW MAX202I
Reel of MAX202IDWR
Tube of MAX202IPW
TSSOP PW MB202I
Reel of MAX202IPWR
(1) Package drawings, standard packing quantities, thermal data, symbolization, and PCB design guidelines are available at
www.ti.com/sc/package.
(2) For the most current package and ordering information, see the Package Option Addendum at the end of this document, or see the TI
website at www.ti.com.
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas
Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
PRODUCTION DATA information is current as of publication date. Copyright 2003–2007, Texas Instruments Incorporated
Products conform to specifications per the terms of the Texas
Instruments standard warranty. Production processing does not
necessarily include testing of all parameters.
