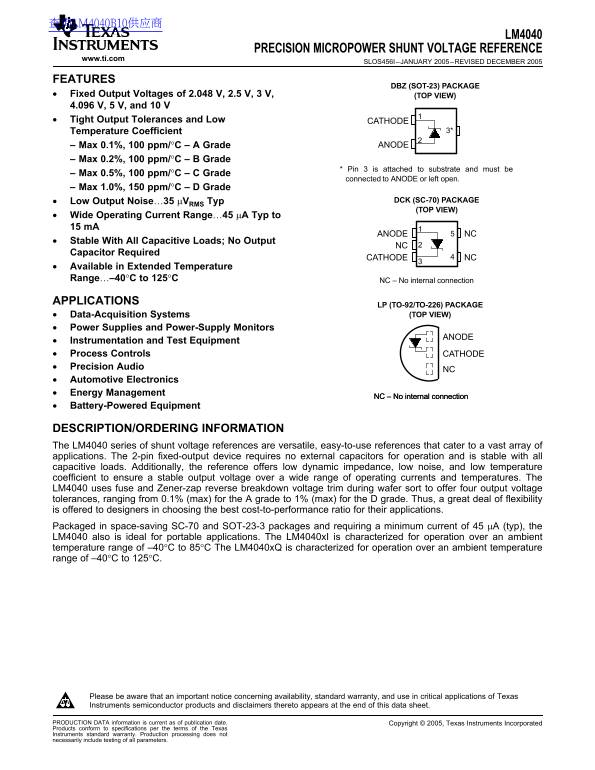

Page 1 Text Content
查询LM4040B10供应商
LM4040
PRECISION MICROPOWER SHUNT VOLTAGE REFERENCE
www.ti.com
SLOS456I–JANUARY 2005–REVISED DECEMBER
FEATURES
DBZ (SOT-23) PACKAGE
Fixed Output Voltages of 2.048 V, 2.5 V, V, (TOP VIEW)
4.096 V, V, and
Tight Output Tolerances and Low CATHODE
Temperature Coefficient 3*
Max 0.1%, ppm/°C Grade ANODE
Max 0.2%, ppm/°C Grade
* Pin 3 is attached to substrate and must be
Max 0.5%, ppm/°C Grade
connected to ANODE or left open.
Max 1.0%, ppm/°C Grade
Low Output Noise…35 µVRMS Typ DCK (SC-70) PACKAGE
(TOP VIEW)
Wide Operating Current Range…45 µA Typ to
ANODE NC
Stable With All Capacitive Loads; No Output
Capacitor Required
CATHODE NC
Available in Extended Temperature
Range…–40°C to 125°C NC – No internal connection
APPLICATIONS
LP (TO-92/TO-226) PACKAGE
Data-Acquisition Systems (TOP VIEW)
Power Supplies and Power-Supply Monitors
ANODE
Instrumentation and Test Equipment
Process Controls CATHODE
Precision Audio
Automotive Electronics
Energy Management
NC – No internal connection
Battery-Powered Equipment
DESCRIPTION/ORDERING INFORMATION
The LM4040 series of shunt voltage references are versatile, easy-to-use references that cater to vast array of
applications. The 2-pin fixed-output device requires no external capacitors for operation and is stable with all
capacitive loads. Additionally, the reference offers low dynamic impedance, low noise, and low temperature
coefficient to ensure stable output voltage over wide range of operating currents and temperatures. The
LM4040 uses fuse and Zener-zap reverse breakdown voltage trim during wafer sort to offer four output voltage
tolerances, ranging from 0.1% (max) for the grade to 1% (max) for the grade. Thus, great deal of flexibility
is offered to designers in choosing the best cost-to-performance ratio for their applications.
Packaged in space-saving SC-70 and SOT-23-3 packages and requiring minimum current of µA (typ), the
LM4040 also is ideal for portable applications. The LM4040x I is characterized for operation over an ambient
temperature range of –40°C to 85°C The LM4040x Q is characterized for operation over an ambient temperature
range of –40°C to 125°C.
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas
Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
PRODUCTION DATA information is current as of publication date. Copyright 2005, Texas Instruments Incorporated
Products conform to specifications per the terms of the Texas
Instruments standard warranty. Production processing does not
necessarily include testing of all parameters.
