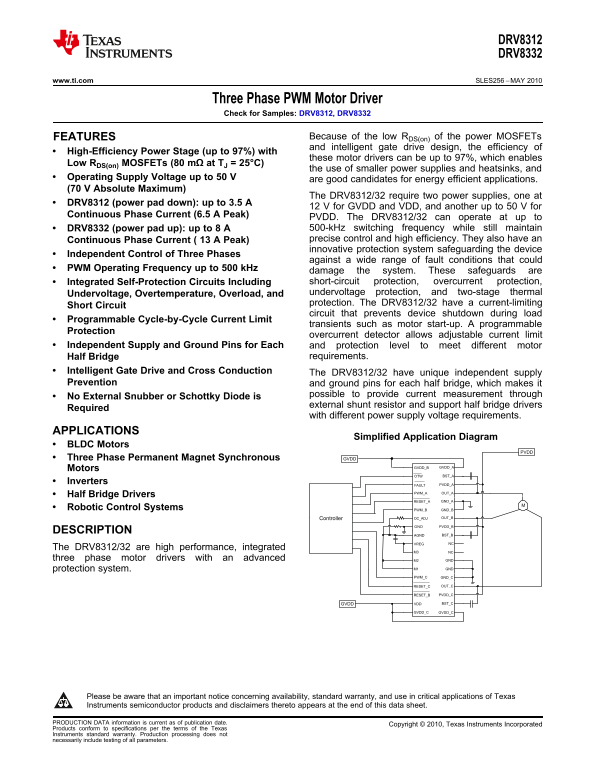

Texas Instruments - DRV8312 DRV8332 Data Sheet Manual

Summary

This datasheet from Texas Instruments documents the DRV8312 and DRV8332 three-phase PWM motor drivers featuring low on-resistance power MOSFETs at 80 milliohms typical, enabling up to 97 percent efficiency for energy-sensitive applications. The DRV8312 with power pad down supports up to 3.5 A continuous and 6.5 A peak phase current, while the DRV8332 with power pad up supports up to 8 A continuous and 13 A peak. Both devices operate from a 50 V maximum PVDD supply with a separate 12 V GVDD/VDD s
