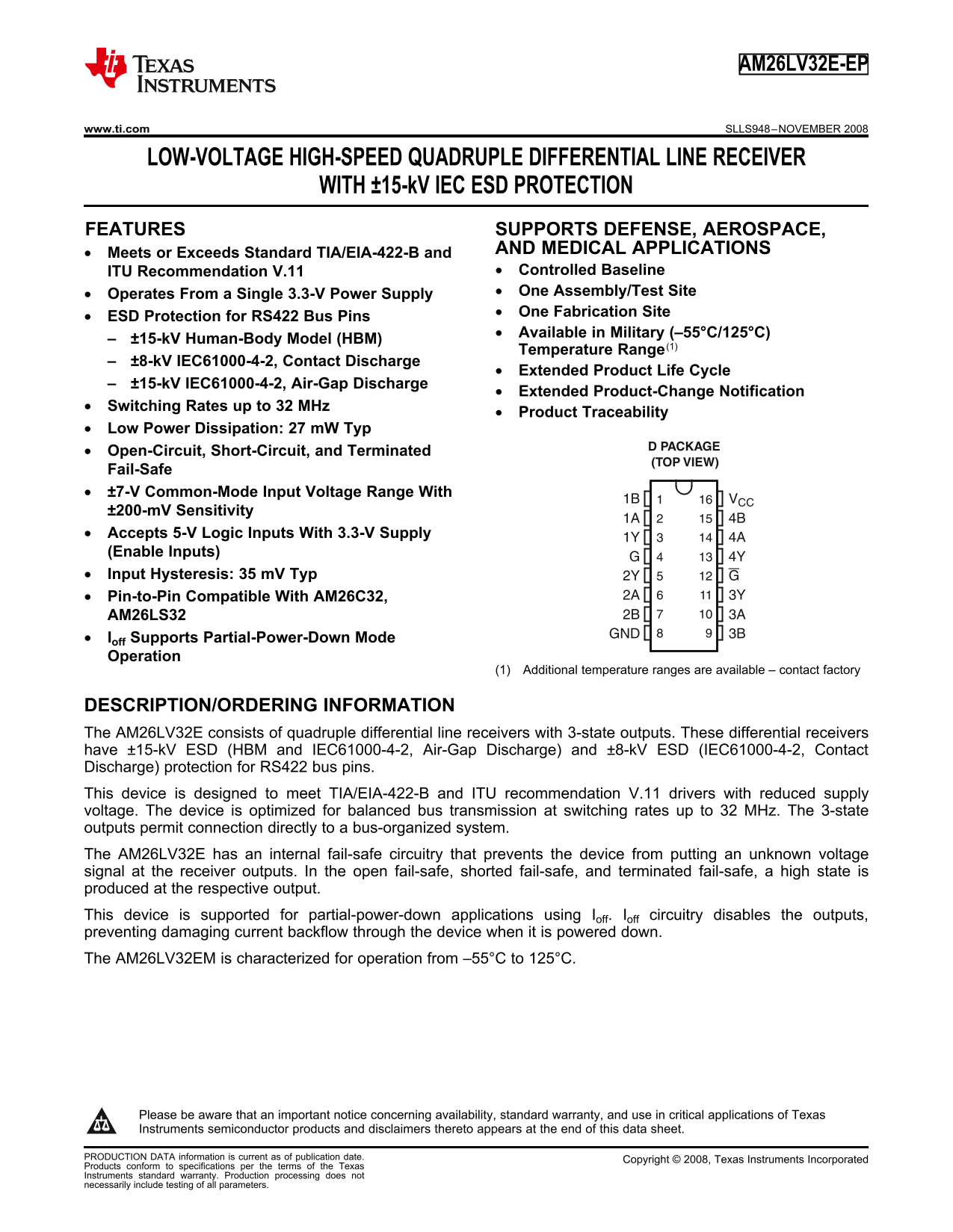

Texas Instruments AM26LV32E-EP Data Sheet
Summary
This quadruple differential line receiver is engineered for robust data transmission over RS422 buses. Optimized for low-voltage (3.3V) operation and high speeds up to 32 MHz, it provides advanced ESD protection (up to ±15kV). The device features integrated fail-safe circuitry, ensuring reliability in mission-critical environments. It is designed to meet TIA/EIA-422-B standards and is ideal for demanding applications in the Aerospace, Defense, and Medical sectors.
Manual Details
| Brand | Texas Instruments |
|---|---|
| Pages | 11 |
| File Size | 326.34 KB |
| Published | July 15, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What standards does this device meet?
It meets or exceeds TIA/EIA-422-B and Controlled Baseline ITU Recommendation V.11, while also supporting RS422 bus pins.
How is output status maintained for open circuits or shorts?
The internal fail-safe circuitry ensures a high state is produced at the respective output when the circuit is open, shorted, or terminated.
What are the operational speed and power requirements?
It supports switching rates up to 32 MHz and has a low typical power dissipation of 27 mW, operating from a single 3.3-V supply.
Which other AM series chips are compatible with this product?
The device is pin-to-pin compatible with model numbers AM26C32 and AM26LS32.
