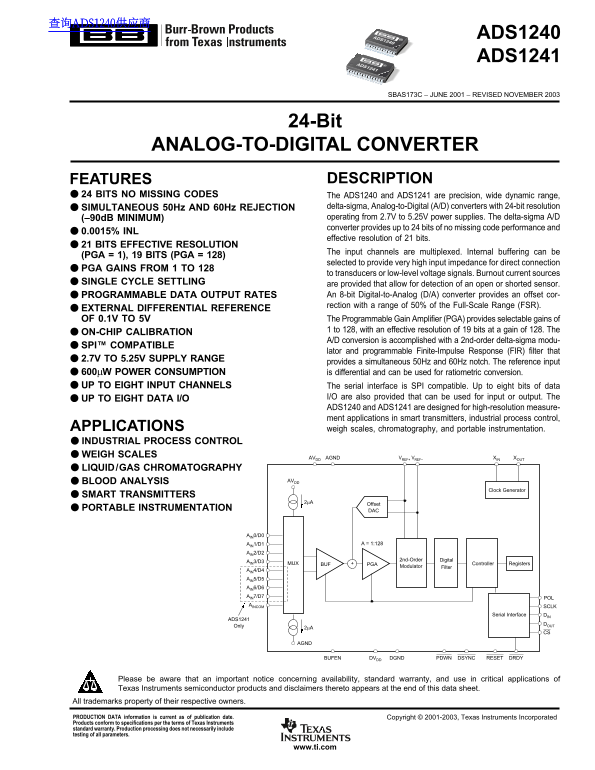

Page 1 Text Content

查询ADS1240供应商

ADS1240 ADS1240

ADS1241

ADS1241

SBAS173C – JUNE 2001 – REVISED NOVEMBER 2003

24-Bit

ANALOG-TO-DIGITAL CONVERTER

FEATURES DESCRIPTION

24 BITS NO MISSING CODES The ADS1240 and ADS1241 are precision, wide dynamic range,

SIMULTANEOUS 50Hz AND 60Hz REJECTION delta-sigma, Analog-to-Digital (A/D) converters with 24-bit resolution (–90d B MINIMUM) operating from 2.7V to 5.25V power supplies. The delta-sigma A/D converter provides up to 24 bits of no missing code performance and

0.0015% INL

effective resolution of 21 bits.

21 BITS EFFECTIVE RESOLUTION

The input channels are multiplexed. Internal buffering can be

(PGA = 1), 19 BITS (PGA = 128)

selected to provide very high input impedance for direct connection

PGA GAINS FROM 1 TO 128

to transducers or low-level voltage signals. Burnout current sources

SINGLE CYCLE SETTLING

are provided that allow for detection of an open or shorted sensor. PROGRAMMABLE DATA OUTPUT RATES An 8-bit Digital-to-Analog (D/A) converter provides an offset cor- rection with a range of 50% of the Full-Scale Range (FSR).

EXTERNAL DIFFERENTIAL REFERENCE

OF 0.1V TO 5V The Programmable Gain Amplifier (PGA) provides selectable gains of 1 to 128, with an effective resolution of 19 bits at a gain of 128. The

ON-CHIP CALIBRATION

A/D conversion is accomplished with a 2nd-order delta-sigma modu-

SPI™ COMPATIBLE

lator and programmable Finite-Impulse Response (FIR) filter that

2.7V TO 5.25V SUPPLY RANGE

provides a simultaneous 50Hz and 60Hz notch. The reference input

600µW POWER CONSUMPTION is differential and can be used for ratiometric conversion. UP TO EIGHT INPUT CHANNELS The serial interface is SPI compatible. Up to eight bits of data

UP TO EIGHT DATA I/O I/O are also provided that can be used for input or output. The ADS1240 and ADS1241 are designed for high-resolution measure- ment applications in smart transmitters, industrial process control, weigh scales, chromatography, and portable instrumentation.APPLICATIONS

INDUSTRIAL PROCESS CONTROL WEIGH SCALES VREF+ VREF–

AGNDAVDD XIN XOUT

LIQUID/GAS CHROMATOGRAPHY

BLOOD ANALYSIS AVDD

Clock Generator

SMART TRANSMITTERS

2µA Offset

PORTABLE INSTRUMENTATION DAC

AIN0/D0

AIN1/D1 A = 1:128

AIN2/D2

AIN3/D3 2nd-Order Digital

MUX BUF PGA Controller Registers

Modulator Filter

AIN4/D4 AIN5/D5 AIN6/D6 AIN7/D7 POL AINCOM SCLK

Serial Interface DIN

ADS1241

Only DOUT

DGNDDVDD DSYNCPDWN RESET DRDYBUFEN

Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.

All trademarks property of their respective owners. PRODUCTION DATA information is current as of publication date. Copyright © 2001-2003, Texas Instruments Incorporated Products conform to specifications per the terms of Texas Instruments standard warranty. Production processing does not necessarily include testing of all parameters.

www.ti.com

Page Summary Contents For Texas Instruments ADS1240 ADS1241 Data Sheet Manual

Page 1 查询ADS1240供应商 ADS1240 ADS1240 ADS1241 ADS1241 SBAS173C – JUNE 2001 – REVISED NOVEMBER 2003 24-Bit ANALOG-TO-DIGITAL CONVERTER FEATURES DESCRIPTION 24 BITS NO MISSING CODES The ADS1240 and ADS1241 are p...
Page 2 ABSOLUTE MAXIMUM RATINGS(1) ELECTROSTATIC AVDD to DGND –0.3V to +6V DISCHARGE SENSITIVITY DVDD to DGND –0.3V to +6V Input Current 100m A, Momentary This integrated circuit can be damaged by ESD. Texas...
Page 3 ELECTRICAL CHARACTERISTICS: AVDD = 5V All specifications TMIN to TMAX, AVDD = +5V, DVDD = +2.7V to 5.25V, f MOD = 19.2k Hz, PGA = 1, Buffer ON, f DATA = 15Hz, and VREF = +2.5V, unless otherwise specif...
Page 4 ELECTRICAL CHARACTERISTICS: AVDD = 3V All specifications –40°C to +85°C, AVDD = +3V, DVDD = +2.7V to 5.25V, f MOD = 19.2k Hz, PGA = 1, Buffer ON, f DATA = 15Hz, and VREF = +1.25V, unless otherwise spe...
Page 5 PIN CONFIGURATION (ADS1240) PIN CONFIGURATION (ADS1241) Top View SSOP Top View SSOP DVDD BUFEN DVDD BUFEN DGND DRDY DGND DRDY XIN SCLK XIN SCLK XOUT DOUT XOUT DOUT RESET DIN RESET DIN DSYNC CS DSYNC C...
Page 6 TIMING DIAGRAMS SCLK (POL = 0) SCLK (POL = 1) DIN MSB LSB (Command or Command and Data) DOUT MSB(1) LSB(1) NOTE: (1) Bit order = 0. SCLK Reset Waveform ADS1240 or ADS1241 Resets On Falling Edge 300 • ...
Page 7 TYPICAL CHARACTERISTICS All specifications, AVDD = +5V, DVDD = +5V, f OSC = 2.4576MHz, PGA = 1, f DATA = 15Hz, and VREF ≡ (REF IN+) – (REF IN–) = +2.5V, unless otherwise specified. rm s) rm s) EFFECTI...
Page 8 TYPICAL CHARACTERISTICS (Cont.) ffs et pp f F LO µA IN (p pm f F All specifications, AVDD = +5V, DVDD = +5V, f OSC = 2.4576MHz, PGA = 1, f DATA = 15Hz, and VREF ≡ (REF IN+) – (REF IN–) = +2.5V, unless...
Page 9 TYPICAL CHARACTERISTICS (Cont.) All specifications, AVDD = +5V, DVDD = +5V, f OSC = 2.4576MHz, PGA = 1, f DATA = 15Hz, and VREF ≡ (REF IN+) – (REF IN–) = +2.5V, unless otherwise specified. ai (N or al...
Page 10 OVERVIEW channel. With this method, it is possible to have up to eight single-ended input channels or four independent differential INPUT MULTIPLEXER input channels for the ADS1241, and four single-en...
Page 11 The buffer draws additional current when activated. The AVDD current required by the buffer depends on the PGA setting. When the PGA is set to 1, the buffer uses approximately 50µA; when the PGA is se...
Page 12 SELFGCAL. Afterwards set PGA = 64 and issue SELFOCAL. For operation with a reference voltage greater than (AVDD – 1.5) volts, the buffer must also be turned off during gain self- C1 calibration to avo...
Page 13 ADS1240 AND ADS1241 FREQUENCY RESPONSE FROM 45Hz to 65Hz FILTER RESPONSE WHEN f DATA = 15Hz WHEN f DATA = 15Hz ai (d ai (d ai (d Frequency (Hz) Frequency (Hz) ADS1240 AND ADS1241 FREQUENCY RESPONSE FR...
Page 14 logic one or zero when configured as an input to prevent Data Continuous Mode (RDATAC) command should not be excess current dissipation. If the pin is configured as an issued when DIN and DOUT are con...
Page 15 ADS1240 AND ADS1241 tion needed to configure the part, such as data format, multiplexer settings, calibration settings, data rate, etc. The REGISTER set of the 16 registers are shown in Table III. The...
Page 16 ACR (Address 02H) Analog Control Register ODAC (Address 03 ) Offset DAC Reset Value = X0H Reset Value = 00H bit 7 bit 6 bit 5 bit 4 bit 3 bit 2 bit 1 bit 0 bit 7 bit 6 bit 5 bit 4 bit 3 bit 2 bit 1 bi...
Page 17 OCR1 (Address 08H) Offset Calibration Coefficient FSR2 (Address 0CH) Full-Scale Register (Middle Byte) (Most Significant Byte) Reset Value = 00H Reset Value = 55H bit 7 bit 6 bit 5 bit 4 bit 3 bit 2 b...
Page 18 ADS1240 AND ADS1241 CONTROL COMMAND DEFINITIONS The commands listed in Table IV control the operations of Operands: the ADS1240 and ADS1241. Some of the commands are n = count (0 to 127) stand-alone c...
Page 19 STOPC–Stop Continuous SELFCAL–Offset and Gain Self Calibration Description: Ends the continuous data output mode. Issue Description: Starts the process of self calibration. The Offset after DRDY goes ...
Page 20 SYSOCAL–System Offset Calibration DSYNC–Sync DRDY Description: Initiates a system offset calibration. The input Description: Synchronizes the ADS1240 and ADS1241 to an should be set to 0V, and the ADS...
Page 21 APPLICATION EXAMPLES ADS1240. GENERAL-PURPOSE WEIGH SCALE HIGH PRECISION WEIGH SCALE Figure 8 shows a typical schematic of a general-purpose Figure 9 shows the typical schematic of a high-precision we...
Page 22 OSC OSC MOD SPEED mfactor 2• DEFINITION OF TERMS f SAMP—the frequency, or switching speed, of the input sam- An attempt has been made to be consistent with the termi- nology used in this data sheet. I...
Page 23 IMPORTANT NOTICE Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, modifications, enhancements, improvements, and other changes to its products and servic...
