ST P0130AA Data Sheet - Sensitive SCR, 0.8A Current Limitation
Summary
This product manual details the P0130AA sensitive SCR, an essential power electronic component housed in TO-92 packaging. Designed for use in fluorescent tubelamp electronic starters, it provides reliable switching capability optimized for specific applications. The comprehensive guide covers all absolute electrical ratings, detailed operating characteristics, and thermal performance data critical for engineers and designers integrating this component into high-reliability lamp starting circuits.

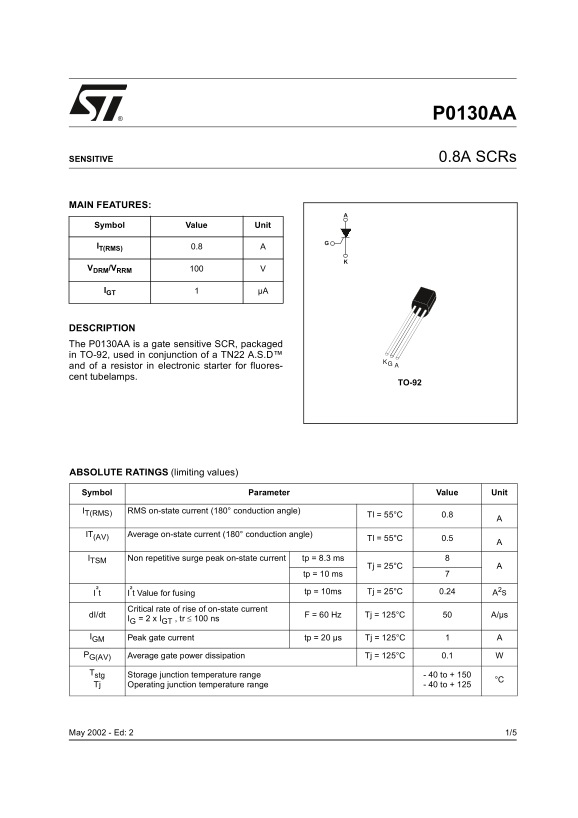

Page 1 Text Content
P0130AA
SENSITIVE 0.8A SCRs
MAIN FEATURES:
Symbol Value Unit
IT(RMS) 0.8
VDRM/VRRM
IGT µA
DESCRIPTION The P0130AA is a gate sensitive SCR, packaged in TO-92, used in conjunction of a TN22 A.S.D™ and of a resistor in electronic starter for fluores- cent tubelamps.
TO-92
ABSOLUTE RATINGS (limiting values)
Symbol Parameter Value Unit
IT(RMS) RMS on-state current (180° conduction angle)
Tl = 55°C 0.8
IT(AV) Average on-state current (180° conduction angle)
Tl = 55°C 0.5
ITSM Non repetitive surge peak on-state current tp = 8.3 ms
Tj = 25°C
tp = 10 ms
I²t I²t Value for fusing tp = 10ms Tj = 25°C 0.24 A2S
Critical rate of rise of on-state current
d I/dt F = 60 Hz Tj = 125°C A/µs
IG = 2 x IGT , tr ≤ 100 ns
IGM Peak gate current tp = 20 µs Tj = 125°C
PG(AV) Average gate power dissipation Tj = 125°C 0.1
Storage junction temperature range - 40 to + 150
Tj Operating junction temperature range - 40 to + 125
May 2002 - Ed: 2 1/5
Page Summary Contents For ST P0130AA Data Sheet - Sensitive SCR, 0.8A Current Limitation
Manual Details
| Brand | Current |
|---|---|
| Pages | 5 |
| File Size | 102.11 KB |
| Published | May 18, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the intended application of the P0130AA SCR?
It is used in conjunction with a TN22 A.S.D™ and a resistor for electronic start in fluorescent tube lamps.
What are the maximum temperature ratings (Junction) for this component?
The operating junction temperature range is -40 to +125°C.
How does I_t(Avg) change with lead temperature at 25°C ambient?
At 25°C, the maximum average on-state current (I_t(Av)) can reach approximately 0.8A.
What is the minimum peak gate current specified for this SCR?
The minimum specified gate current (I_GT) varies depending on voltage and resistor values, but one set specifies a minimum of 0.1 μA.
