ST ANT1-1-M24LR16E 45 mm x 75 mm Antenna Reference Board User Manual - for M24LR16E-8 Dual Interface EEPROM

Summary

This antenna reference board is a ready-to-use PCB designed for evaluating NFC and RFID systems using the M24LR16E-R Dual Interface EEPROM. Featuring an integrated 45 mm x 75 mm, 13.56 MHz inductive antenna and energy harvesting output circuit, it simplifies wireless connectivity testing. The documentation provides comprehensive details on system integration, including required associated firmware and PC software to configure and manage energy harvesting capabilities. Ideal for system designers and developers needing a reliable platform to prototype low-power wireless applications and optimize data transfer solutions.

📄 Preview 📖 Table of Contents Contents PAGE OF 4

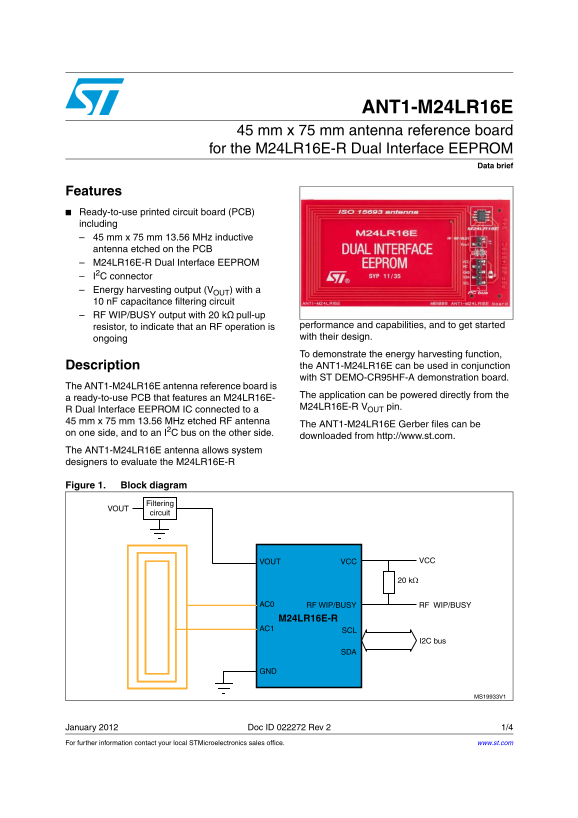

Page 1 Text Content

ANT1-M24LR16E

45 mm x 75 mm antenna reference board for the M24LR16E-R Dual Interface EEPROM

Data brief

Features Ready-to-use printed circuit board (PCB) including 45 mm x 75 mm 13.56 MHz inductive antenna etched on the PCB M24LR16E-R Dual Interface EEPROM I2C connector Energy harvesting output (VOUT) with a

n F capacitance filtering circuit RF WIP/BUSY output with 20 kΩ pull-up

resistor, to indicate that an RF operation is performance and capabilities, and to get started ongoing with their design. To demonstrate the energy harvesting function, Description the ANT1-M24LR16E can be used in conjunction with ST DEMO-CR95HF-A demonstration board.

The ANT1-M24LR16E antenna reference board is

The application can be powered directly from the

a ready-to-use PCB that features an M24LR16E-

M24LR16E-R VOUT pin.

R Dual Interface EEPROM IC connected to a mm x 75 mm 13.56 MHz etched RF antenna

The ANT1-M24LR16E Gerber files can be

on one side, and to an I2C bus on the other side.

downloaded from http://www.st.com.

The ANT1-M24LR16E antenna allows system designers to evaluate the M24LR16E-R

Figure 1. Block diagram

January 2012 Doc ID 022272 Rev 2 1/4 For further information contact your local STMicroelectronics sales office. www.st.com

Page Summary Contents For ST ANT1-1-M24LR16E 45 mm x 75 mm Antenna Reference Board User Manual - for M24LR16E-8 Dual Interface EEPROM

Page 1 ANT1-M24LR16E 45 mm x 75 mm antenna reference board for the M24LR16E-R Dual Interface EEPROM Data brief Features Ready-to-use printed circuit board (PCB) including 45 mm x 75 mm 13.56 MHz inductive an...
Page 2 Associated firmware and PC software ANT1-M24LR16E Associated firmware and PC software The ANT1-M24LR16E board is supported by a PC software, the Dual Interface EEPROM tool software, that allows to con...
Page 3 ANT1-M24LR16E Revision history 1 Revision history Table 1. Document revision history Date Revision Changes 27-Sep-2011 Initial release. 23-Jan-2012 Added value of filtering capacitance in Features. Do...
Page 4 ANT1-M24LR16E Please Read Carefully: Information in this document is provided solely in connection with ST products. STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes...

Manual Details

Brand Dual
Pages 4
File Size 141.09 KB
Published June 05, 2026
21 views

Enter the captcha to get the download link:

captcha

Frequently Asked Questions

Where can I find the Gerber files for custom design?

The ANT1-M24LR16E Gerber files can be downloaded from http://www.st.com.

What hardware demo board is compatible with this antenna reference board?

It can be used in conjunction with the ST DEMO-CR95HF-A demonstration board.

How do I configure and control the energy harvesting features?

The function can be controlled using PC software, which is available from http://www.st.com.

What are the key specifications of the RF antenna included?

It includes a 45 mm x 75 mm, 13.56 MHz etched inductive antenna on one side.
