ST AN4006 Application Note: Designing a High-Efficiency (60 W on 4 Pairs) PoE Converter Using the PM8803 and an External Current Booster

Summary

Design robust, high-power Power over Ethernet (PoE) solutions with this comprehensive application note. We introduce a complete reference design for building an ultra-efficient 60W PoE converter based on the PM8803 controller and integrated current booster module. This guide is essential for electrical engineers developing advanced power systems that exceed standard IEEE specifications by utilizing a high-power, four-pair delivery method. The manual provides full schematics, bill of materials, detailed efficiency measurements, and operational waveforms to ensure optimal design performance validation.

📄 Preview 📖 Table of Contents Contents PAGE OF 19

Page 1 Text Content

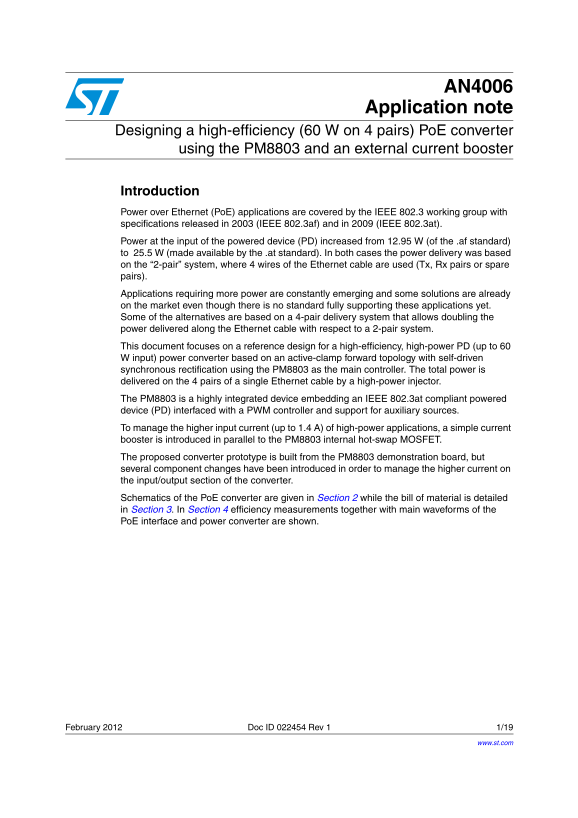

AN4006

Application note

Designing a high-efficiency (60 W on 4 pairs) Po E converter

using the PM8803 and an external current booster

Introduction Power over Ethernet (Po E) applications are covered by the IEEE 802.3 working group with specifications released in 2003 (IEEE 802.3af) and in 2009 (IEEE 802.3at). Power at the input of the powered device (PD) increased from 12.95 W (of the .af standard) to 25.5 W (made available by the .at standard). In both cases the power delivery was based on the “2-pair” system, where 4 wires of the Ethernet cable are used (Tx, Rx pairs or spare pairs). Applications requiring more power are constantly emerging and some solutions are already on the market even though there is no standard fully supporting these applications yet. Some of the alternatives are based on a 4-pair delivery system that allows doubling the power delivered along the Ethernet cable with respect to a 2-pair system. This document focuses on a reference design for a high-efficiency, high-power PD (up to 60 W input) power converter based on an active-clamp forward topology with self-driven synchronous rectification using the PM8803 as the main controller. The total power is delivered on the 4 pairs of a single Ethernet cable by a high-power injector. The PM8803 is a highly integrated device embedding an IEEE 802.3at compliant powered device (PD) interfaced with a PWM controller and support for auxiliary sources. To manage the higher input current (up to 1.4 A) of high-power applications, a simple current booster is introduced in parallel to the PM8803 internal hot-swap MOSFET. The proposed converter prototype is built from the PM8803 demonstration board, but several component changes have been introduced in order to manage the higher current on the input/output section of the converter. Schematics of the Po E converter are given in Section 2 while the bill of material is detailed in Section 3. In Section 4 efficiency measurements together with main waveforms of the Po E interface and power converter are shown.

February 2012 Doc ID 022454 Rev 1 1/19

www.st.com

Page Summary Contents For ST AN4006 Application Note: Designing a High-Efficiency (60 W on 4 Pairs) PoE Converter Using the PM8803 and an External Current Booster

Page 1 AN4006 Application note Designing a high-efficiency (60 W on 4 pairs) Po E converter using the PM8803 and an external current booster Introduction Power over Ethernet (Po E) applications are covered b...
Page 2 Contents AN4006 Contents High-power Po E converter electrical specifications . . . . . . . . . . . . . . . 4 High-power converter schematic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ...
Page 3 AN4006 List of figures List of figures Figure 1. High-power converter schematic: detail of the input section including data transformers, bridges, protection and optional CM choke . . . . . . . . . . ...
Page 4 High-power Po E converter electrical specifications AN4006 1 High-power Po E converter electrical specifications Table 1. Specifications for 3.3 V output Parameter Description Min Typ Max Unit Input v...
Page 5 AN4006 High-power converter schematic 2 High-power converter schematic Figure 1. High-power converter schematic: detail of the input section including data transformers, bridges, protection and option...
Page 6 High-power converter schematic AN4006 Figure 2. High-power converter: detail of the Po E converter based on active-clamp forward topology with self-driven synchronous rectification 6/19 Doc ID 022454 ...
Page 7 AN4006 Bill of material 3 Bill of material The following table summarizes the bill of material for the high-power Po E converter based on the PM8803, configured in active-clamp forward topology with s...
Page 8 Bill of material AN4006 Table 2. Bill of material (continued) Reference Description Value Tol Voltage Body Vendor D11 TVS diode SMAJ58A SMA STMicroelectronics D28,D30,D31, D33,D37,D38, Schottky diode ...
Page 9 AN4006 Bill of material Table 2. Bill of material (continued) Reference Description Value Tol Voltage Body Vendor R44,R52,R119 Chip resistor 1 kΩ Std R45 Chip resistor 47 kΩ Std R53,R59 Chip resistor ...
Page 10 Test results AN4006 4 Test results 4.1 Efficiency measurements with synchronous rectification Figure 3. Efficiency measurements at 48 V input The difference between dc-dc and overall measurements is a...
Page 11 AN4006 Test results Figure 4 shows the various contributions to the total losses of the PD interface section of the converter: RJ45 and data transformer value is small but not negligible at high input...
Page 12 Test results AN4006 4.2 Converter waveforms 4.2.1 Startup sequence using Power Dsine 9501G injector Figure 7. Startup with 0 A load Figure 8. Startup with 10 A load The current unbalance in the Ethern...
Page 13 AN4006 Test results 4.2.2 Primary-side MOSFET Figure 9. Primary-side power MOSFET waveforms at 0 A load Figure 10. Primary-side power MOSFET waveforms at 16 A load Doc ID 022454 Rev 1 13/19
Page 14 Test results AN4006 4.2.3 Secondary-side MOSFET Figure 11. Secondary-side power MOSFET waveforms at 0 A load Figure 12. Secondary-side power MOSFET waveforms at 16 A load 14/19 Doc ID 022454 Rev 1
Page 15 AN4006 Test results 4.2.4 Output ripple Figure 13. Output ripple measurement at 0 A Figure 14. Output ripple measurement at 16 A Doc ID 022454 Rev 1 15/19
Page 16 Test results AN4006 Figure 15. Output ripple measurement at 16 A with infinite persistance 16/19 Doc ID 022454 Rev 1
Page 17 AN4006 Test results 4.2.5 Gloop measurement and load transient response Figure 16. Control loop of the converter at 48 V input and 18 A output Figure 17. Response of the converter to a 8 A - 16 A load...
Page 18 Revision history AN4006 5 Revision history Table 3. Document revision history Date Revision Changes 22-Feb-2012 Initial release 18/19 Doc ID 022454 Rev 1
