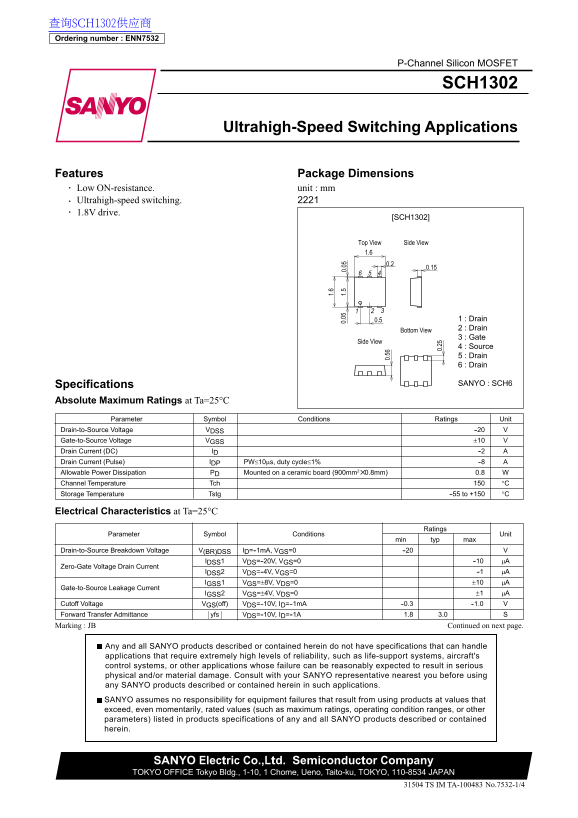

Page 1 Text Content
查询SCH1302供应商 Ordering number : ENN7532
SCH1302
P-Channel Silicon MOSFET
SCH1302
Ultrahigh-Speed Switching Applications
Features Package Dimensions Low ON-resistance. unit : mm Ultrahigh-speed switching. 1.8V drive.
[SCH1302]
Top View Side View
0.5 1 : Drain 2 : Drain
Bottom View 1.
3 : Gate
Side View 0.
4 : Source 5 : Drain 6 : Drain
Specifications SANYO : SCH6 0.
Absolute Maximum Ratings at Ta=25°C
Parameter Symbol Conditions Ratings Unit
Drain-to-Source Voltage VDSS --20
Gate-to-Source Voltage VGSS 0. ±10
Drain Current (DC) ID --2 Drain Current (Pulse) IDP PW≤10µs, duty cycle≤1% --8 Allowable Power Dissipation PD Mounted on a ceramic board (900mm2✕0.8mm) 0.8 Channel Temperature Tch °C Storage Temperature Tstg --55 to +150 °C
Electrical Characteristics at Ta=25°C
Ratings
Parameter Symbol Conditions Unit
min typ max
Drain-to-Source Breakdown Voltage V(BR)DSS ID=--1m A, VGS=0 --20
IDSS1 VDS=--20V, VGS=0 --10 µA
Zero-Gate Voltage Drain Current
IDSS2 VDS=--4V, VGS=0 --1 µA IGSS1 VGS=±8V, VDS=0 ±10 µA
Gate-to-Source Leakage Current
IGSS2 VGS=±4V, VDS=0 ±1 µA
Cutoff Voltage VGS(off) VDS=--10V, ID=--1m A --0.3 --1.0 Forward Transfer Admittance yfs VDS=--10V, ID=--1A 1.8 3.0 Marking : JB Continued on next page.
Any and all SANYO products described or contained herein do not have specifications that can handle applications that require extremely high levels of reliability, such as life-support systems, aircraft's control systems, or other applications whose failure can be reasonably expected to result in serious physical and/or material damage. Consult with your SANYO representative nearest you before using any SANYO products described or contained herein in such applications. SANYO assumes no responsibility for equipment failures that result from using products at values that exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or other parameters) listed in products specifications of any and all SANYO products described or contained herein.
SANYO Electric Co.,Ltd. Semiconductor Company TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110-8534 JAPAN
31504 TS IM TA-100483 No.7532-1/4
