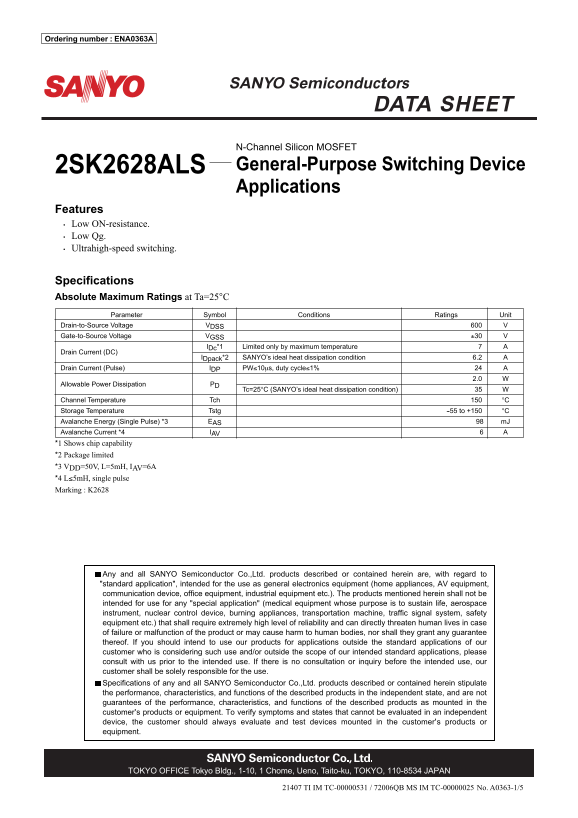

SANYO 2SK2628ALS Handbook(1)

现货库存、技术资料、百科信息、热点资讯，精彩尽在鼎好!2SK2628ALS Ordering number : ENA0363A

SANYO Semiconductors

DATA SHEET

N-Channel Silicon MOSFET

2SK2628ALS General-Purpose Switching Device Applications

Features Low ON-resistance. Low Qg. Ultrahigh-speed switching.

Specifications Absolute Maximum Ratings at Ta=25°C

Parameter Symbol Conditions Ratings Unit

Drain-to-Source Voltage VDSS Gate-to-Source Voltage VGSS ±30

IDc*1 Limited only by maximum temperature

Drain Current (DC)

IDpack*2 SANYO’s ideal heat dissipation condition 6.2

Drain Current (Pulse) IDP PW≤10µs, duty cycle≤1%

Allowable Power Dissipation PD

Tc=25°C (SANYO’s ideal heat dissipation condition)

Channel Temperature Tch °C Storage Temperature Tstg --55 to +150 °C Avalanche Energy (Single Pulse) *3 EAS m J Avalanche Current *4 IAV *1 Shows chip capability *2 Package limited *3 VDD=50V, L=5m H, IAV=6A *4 L≤5m H, single pulse Marking : K2628

Any and all SANYO Semiconductor Co.,Ltd. products described or contained herein are, with regard to "standard application", intended for the use as general electronics equipment (home appliances, AV equipment, communication device, office equipment, industrial equipment etc.). The products mentioned herein shall not be intended for use for any "special application" (medical equipment whose purpose is to sustain life, aerospace instrument, nuclear control device, burning appliances, transportation machine, traffic signal system, safety equipment etc.) that shall require extremely high level of reliability and can directly threaten human lives in case of failure or malfunction of the product or may cause harm to human bodies, nor shall they grant any guarantee thereof. If you should intend to use our products for applications outside the standard applications of our customer who is considering such use and/or outside the scope of our intended standard applications, please consult with us prior to the intended use. If there is no consultation or inquiry before the intended use, our customer shall be solely responsible for the use. Specifications of any and all SANYO Semiconductor Co.,Ltd. products described or contained herein stipulate the performance, characteristics, and functions of the described products in the independent state, and are not guarantees of the performance, characteristics, and functions of the described products as mounted in the customer's products or equipment. To verify symptoms and states that cannot be evaluated in an independent device, the customer should always evaluate and test devices mounted in the customer's products or equipment.

TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110-8534 JAPAN

21407 TI IM TC-00000531 / 72006QB MS IM TC-00000025 No. A0363-1/5
