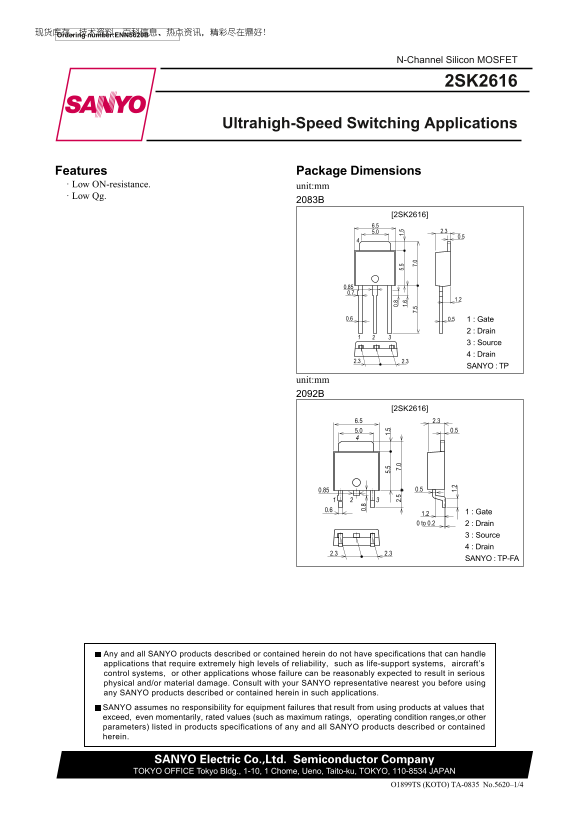

Page 1 Text Content
现货库存、技术资料、百科信息、热点资讯，精彩尽在鼎好! Ordering number:ENN5620B
N-Channel Silicon MOSFET
2SK2616
Ultrahigh-Speed Switching Applications
Features Package Dimensions · Low ON-resistance. unit:mm · Low Qg.
[2SK2616] 6.5
0.6 0.5 1 : Gate
2 : Drain 3 : Source 4 : Drain
SANYO : TP
unit:mm
[2SK2616]
1.2 1 : Gate
0 to 0.2 2 : Drain
3 : Source 4 : Drain
SANYO : TP-FA
Any and all SANYO products described or contained herein do not have specifications that can handle applications that require extremely high levels of reliability, such as life-support systems, aircraft’s control systems, or other applications whose failure can be reasonably expected to result in serious physical and/or material damage. Consult with your SANYO representative nearest you before using any SANYO products described or contained herein in such applications. SANYO assumes no responsibility for equipment failures that result from using products at values that exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges,or other parameters) listed in products specifications of any and all SANYO products described or contained herein.
SANYO Electric Co.,Ltd. Semiconductor Company TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110-8534 JAPAN
O1899TS (KOTO) TA-0835 No.5620–1/4
Page Summary Contents For SANYO 2SK2616 Handbook(1)
Manual Details
| Brand | Sanyo |
|---|---|
| Pages | 4 |
| File Size | 123.88 KB |
| Published | May 29, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
Can this MOSFET be used in life-support or aerospace control systems?
No. SANYO warns that these products do not have specifications for applications requiring extremely high levels of reliability, such as life-support systems or aircraft’s control systems.
What is the maximum continuous drain current and allowable power dissipation at room temperature?
The continuous Drain Current (Id) is 2A, and the Allowable Power Dissipation (Pd) at a case temperature (Tc) of 25°C is 1W.
If I use this component in my own product design, what safety guidelines must I follow?
Designers must adopt protective circuits and error prevention circuits for safe design to prevent accidents or events that could endanger human lives.
