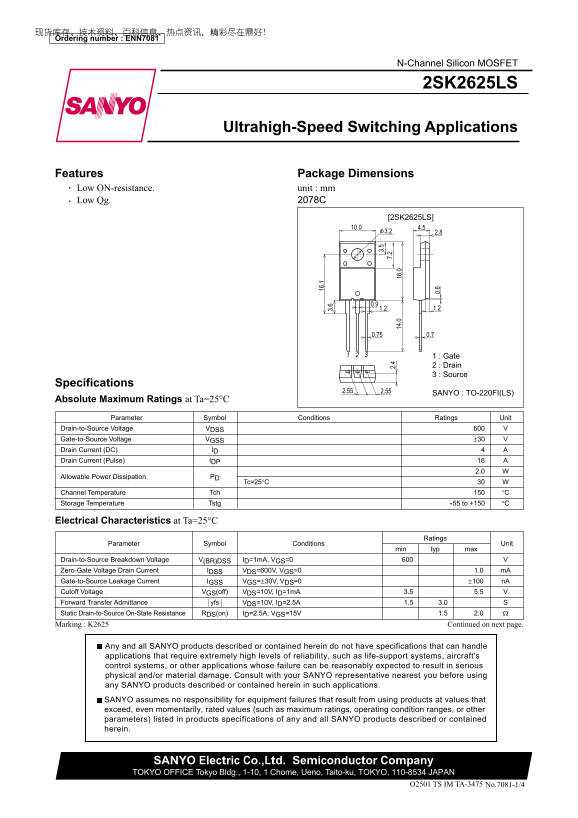

2SK2625LS
N-Channel Silicon MOSFET
2SK2625LS
Ultrahigh-Speed Switching Applications
Preliminary Features Package Dimensions Low ON-resistance. unit : mm Low Qg. 2078C
[2SK2625LS]
1 : Gate 2 : Drain 3 : Source
Specifications
SANYO : TO-220FI(LS) 2.
Absolute Maximum Ratings at Ta=25°C .0 .0
Parameter Symbol Conditions Ratings Unit
Drain-to-Source Voltage VDSS
Gate-to-Source Voltage VGSS ±30 0.
Drain Current (DC) ID Drain Current (Pulse) IDP
Allowable Power Dissipation PD
Tc=25°C
Channel Temperature Tch °C Storage Temperature Tstg --55 to +150 °C
Electrical Characteristics at Ta=25°C
Ratings
Parameter Symbol Conditions Unit
min typ max
Drain-to-Source Breakdown Voltage V(BR)DSS ID=1m A, VGS=0 Zero-Gate Voltage Drain Current IDSS VDS=600V, VGS=0 1.0 m A Gate-to-Source Leakage Current IGSS VGS=±30V, VDS=0 ±100 n A Cutoff Voltage VGS(off) VDS=10V, ID=1m A 3.5 5.5 Forward Transfer Admittance yfs VDS=10V, ID=2.5A 1.5 3.0 Static Drain-to-Source On-State Resistance RDS(on) ID=2.5A, VGS=15V 1.5 2.0 Marking : K2625 Continued on next page.
Any and all SANYO products described or contained herein do not have specifications that can handle applications that require extremely high levels of reliability, such as life-support systems, aircraft's control systems, or other applications whose failure can be reasonably expected to result in serious physical and/or material damage. Consult with your SANYO representative nearest you before using any SANYO products described or contained herein in such applications. SANYO assumes no responsibility for equipment failures that result from using products at values that exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or other parameters) listed in products specifications of any and all SANYO products described or contained herein.
SANYO Electric Co.,Ltd. Semiconductor Company TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110-8534 JAPAN
O2501 TS IM TA-3475 No.7081-1/4
