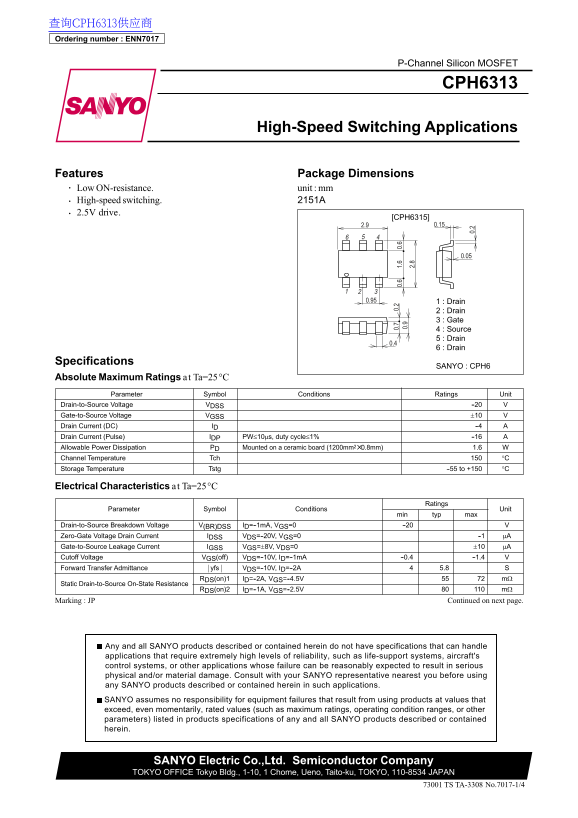

查询CPH6313供应商 Ordering number : ENN7017

CPH6313

P-Channel Silicon MOSFET

CPH6313

High-Speed Switching Applications

Features Package Dimensions Low ON-resistance. unit : mm High-speed switching. 2151A 2.5V drive.

[CPH6315]

0.95 1 : Drain

2 : Drain 3 : Gate 4 : Source 5 : Drain

6 : Drain

Specifications

SANYO : CPH6

Absolute Maximum Ratings a t Ta=25°C

Parameter Symbol Conditions Ratings Unit

Drain-to-Source Voltage VDSS --20 0.

Gate-to-Source Voltage VGSS ±10 Drain Current (DC) ID --4 Drain Current (Pulse) IDP PW≤10µs, duty cycle≤1% --16 Allowable Power Dissipation PD Mounted on a ceramic board (1200mm2✕0.8mm) 1.6 Channel Temperature Tch °C Storage Temperature Tstg --55 to +150 °C

Electrical Characteristics a t Ta=25°C

Ratings

Parameter Symbol Conditions Unit

min typ max

Drain-to-Source Breakdown Voltage V(BR)DSS ID=--1m A, VGS=0 --20 Zero-Gate Voltage Drain Current IDSS VDS=--20V, VGS=0 --1 µA Gate-to-Source Leakage Current IGSS VGS=±8V, VDS=0 ±10 µA Cutoff Voltage VGS(off) VDS=--10V, ID=--1m A --0.4 --1.4 Forward Transfer Admittance yfs VDS=--10V, ID=--2A 5.8

RDS(on)1 ID=--2A, VGS=--4.5V mΩ

Static Drain-to-Source On-State Resistance

RDS(on)2 ID=--1A, VGS=--2.5V mΩ

Marking : JP Continued on next page.

Any and all SANYO products described or contained herein do not have specifications that can handle applications that require extremely high levels of reliability, such as life-support systems, aircraft's control systems, or other applications whose failure can be reasonably expected to result in serious physical and/or material damage. Consult with your SANYO representative nearest you before using any SANYO products described or contained herein in such applications. SANYO assumes no responsibility for equipment failures that result from using products at values that exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or other parameters) listed in products specifications of any and all SANYO products described or contained herein.

SANYO Electric Co.,Ltd. Semiconductor Company TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110-8534 JAPAN

73001 TS TA-3308 No.7017-1/4
