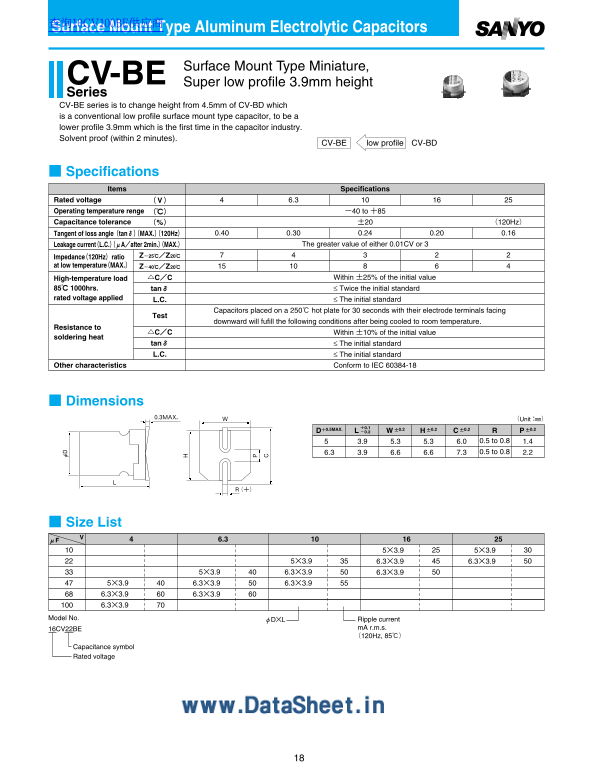

Page 1 Text Content
查询10CV100BE供应商 Surface Mount Type Aluminum Electrolytic Capacitors
Surface Mount Type Miniature,
CV-BE Super low profile 3.9mm height Series CV-BE series is to change height from 4.5mm of CV-BD which is a conventional low profile surface mount type capacitor, to be a lower profile 3.9mm which is the first time in the capacitor industry. Solvent proof (within 2 minutes).
CV-BE CV-BDlow profile
Specifications Items Specifications Rated voltage （V） 6.3 Operating temperature renge （℃） －40 to ＋85 Capacitance tolerance （%） ±20 （120Hz）
Tangent of loss angle（tanδ）（MAX.）（120Hz） 0.40 0.30 0.24 0.20 0.16
Leakage current（L.C.）（μA／after 2min.）（MAX.） The greater value of either 0.01CV or 3
Impedance（120Hz）ratio Z－25℃／Z20℃
at low temperature（MAX.） Z－40℃／Z20℃
High-temperature load △C／C Within±25% of the initial value
85℃ 1000hrs. tanδ Twice the initial standard rated voltage applied L.C. The initial standard
Capacitors placed on a 250℃ hot plate for 30 seconds with their electrode terminals facing
downward will fufill the following conditions after being cooled to room temperature.
Resistance to
△C／C Within±10% of the initial value
soldering heat
tanδ The initial standard L.C. The initial standard
Other characteristics Conform to IEC 60384-18
Dimensions
0.3ＭＡＸ． （Unit：A）
D＋0.5MAX. L＋0.1 0.2 W±0.2 H±0.2 C±0.2 P±0.2
5.0 3.9 5.3 5.3 6.0 0.5 to 0.8 1.4 6.3 3.9 6.6 6.6 7.3 0.5 to 0.8 2.2
Size List VμF
Model No. φD×L Ripple current
16CV22BE m A r.m.s. （120Hz, 85℃）
Capacitance symbol Rated voltage
