Samsung YP-520HP Quick User Guide
Summary
Master your YP-T5 media player with this comprehensive quick start guide. Learn how to successfully set up the device, install necessary USB drivers, and operate core functions including power management, playback control, and file synchronization. This manual provides detailed steps for connecting and safely transferring music files to or from a PC, making it essential reading for new users who need quick mastery of data transfer and basic operation protocols.

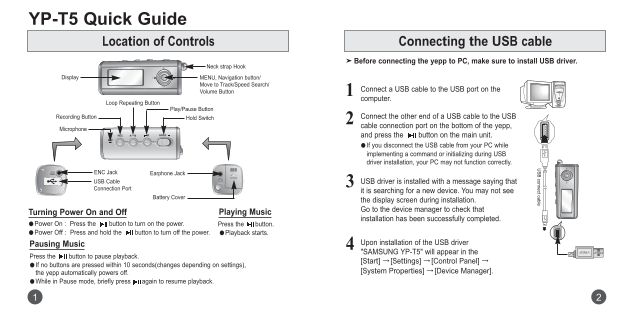

Page 1 Text Content
YP-T5 Quick Guide
Location of Controls Connecting the USB cable
Before connecting the yepp to PC, make sure to install USB driver.
Neck strap Hook
Display MENU, Navigation button/
Move to Track/Speed Search/
Volume Button Connect a USB cable to the USB port on the
connect cable
computer.
Loop Repeating Button
Play/Pause Button
Recording Button Hold Switch Connect the other end of a USB cable to the USB
cable connection port on the bottom of the yepp,
Microphone
and press the button on the main unit. If you disconnect the USB cable from your PC while implementing a command or initializing during USB driver installation, your PC may not function correctly.
ENC Jack Earphone Jack USB Cable USB driver is installed with a message saying that Connection Port
it is searching for a new device. You may not see
Battery Cover
the display screen during installation. Go to the device manager to check that
Turning Power On and Off Playing Music
installation has been successfully completed.
●Power On : Press the button to turn on the power. Press the button. ●Power Off : Press and hold the button to turn off the power. ●Playback starts.
Pausing Music Upon installation of the USB driver "SAMSUNG YP-T5" will appear in the
Press the button to pause playback.
[Start] [Settings] [Control Panel]
If no buttons are pressed within 10 seconds(changes depending on settings),
the yepp automatically powers off. [System Properties] [Device Manager].
●While in Pause mode, briefly press again to resume playback.
Page Summary Contents For Samsung YP-520HP Quick User Guide
Manual Details
| Brand | Samsung |
|---|---|
| Pages | 2 |
| File Size | 194.55 KB |
| Published | June 01, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
How do I connect the YP-T5 to my PC for file transfer?
Connect the unit, turn it on, and follow typical Windows drag-and-drop procedures. When prompted 'Stop a Hardware device,' press OK before disconnecting.
What should I do if my PC doesn't recognize the YP-T5 after setup?
Check your computer's Device Manager by going to [System Properties] → [Device Manager]. The USB driver installation process might require this check.
How do I safely disconnect the USB cable while downloading or uploading files?
Do not disconnect the USB cable if 'WRITING/READING' is displayed. Wait until a 'READY' message appears on the device display before removing the cable.
Can I pause and resume music playback using the manual controls?
Press the button to pause playback, and then briefly press it again while in Pause mode to resume playing.
