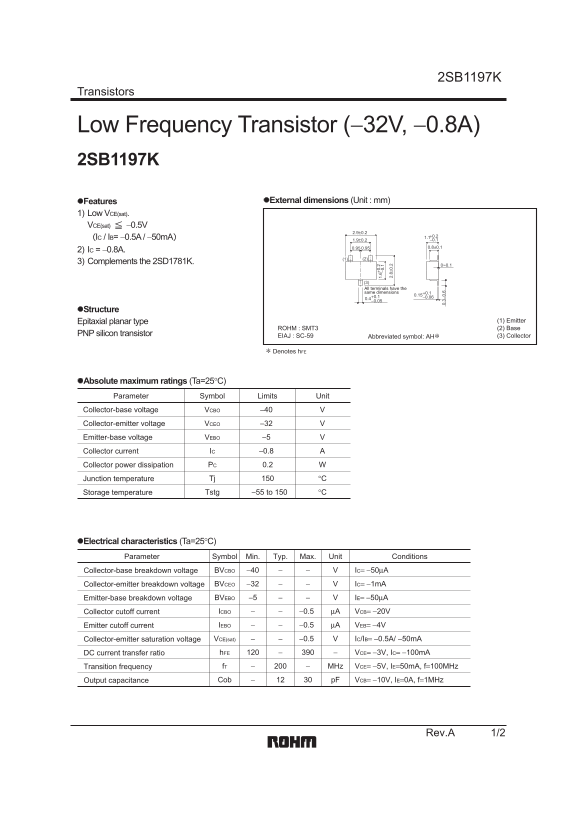

2SB1197K

Transistors

Low Frequency Transistor ( 32V, 0.8A) 2SB1197K

Features External dimensions (Unit : mm)

1) Low VCE(sat).

VCE(sat) 0.5V

IC / IB= 0.5A / 50m A 1.9±0.2 −0.1

2) IC = 0.8A.

3) Complements the 2SD1781K.

(3) All terminals have the same dimensions +0.1

Structure

Epitaxial planar type (1) Emitter ROHM : SMT3 (2) Base

PNP silicon transistor EIAJ : SC-59 (3) Collector

Abbreviated symbol: AH∗

∗ Denotes h FE

Absolute maximum ratings (Ta=25 C) −0 .1

Parameter Symbol Limits Unit

Collector-base voltage VCBO −40

Collector-emitter voltage VCEO −32

Emitter-base voltage VEBO −5

Collector current IC −0.8

Collector power dissipation PC 0.2

Junction temperature Tj °C

Storage temperature Tstg −55 to 150 °C

Electrical characteristics (Ta=25 C)

Parameter Symbol Min. Typ. Max. Unit Conditions

Collector-base breakdown voltage BVCBO −40 IC= −50μA

Collector-emitter breakdown voltage BVCEO −32 IC= −1m A

Emitter-base breakdown voltage BVEBO −5 IE= −50μA

Collector cutoff current ICBO −0.5 μA VCB= −20V

Emitter cutoff current IEBO −0.5 μA VEB= −4V

Collector-emitter saturation voltage VCE(sat) −0.5 IC/IB= −0.5A/ −50m A

DC current transfer ratio h FE VCE= −3V, IC= −100m A

Transition frequency f T −− MHz VCE= −5V, IE=50m A, f=100MHz

Output capacitance Cob p F VCB= −10V, IE=0A, f=1MHz

Rev.A 1/2
