This advanced thick film thermal printhead features integrated thermal history control and high durability, supporting super high speeds of up to 10 inches/s. Designed for mission-critical applications requiring continuous operation, such as factory production lines, it is ideal for users of high-speed label, barcode, ticket, and terminal printers. This technical manual provides specifications, operational characteristics, electrical interfaces, and application guidance necessary for successful integration into industrial printing systems.
Page 1 Text Content
ax .4 ax .3

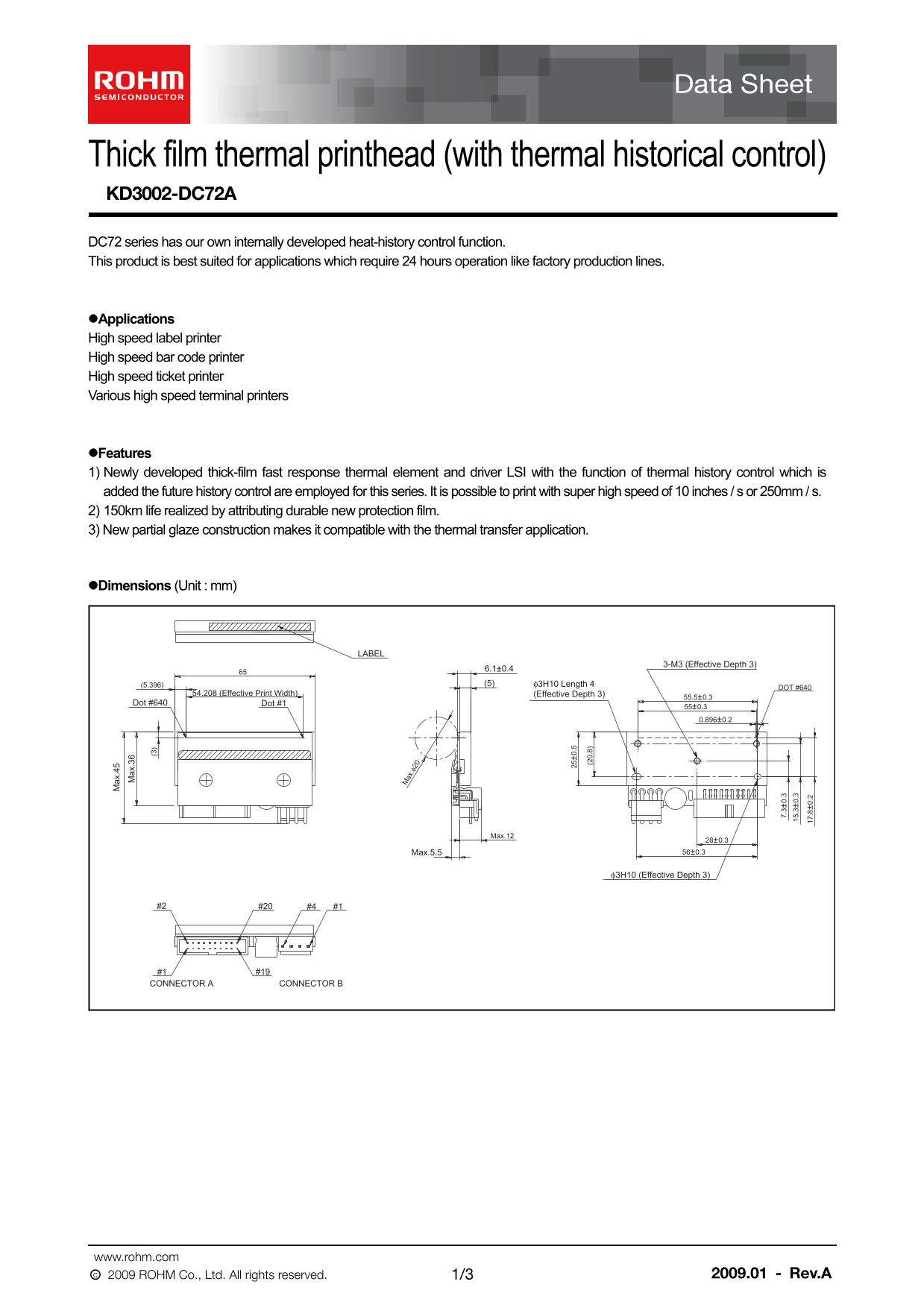

Thick film thermal printhead (with thermal historical control) KD3002-DC72A DC72 series has our own internally developed heat-history control function. This product is best suited for applications which require 24 hours operation like factory production lines.
Applications High speed label printer High speed bar code printer High speed ticket printer Various high speed terminal printers
ax .φ
Features 1) Newly developed thick-film fast response thermal element and driver LSI with the function of thermal history control which is added the future history control are employed for this series. It is possible to print with super high speed of 10 inches / s or 250mm / s. 2) 150km life realized by attributing durable new protection film. 3) New partial glaze construction makes it compatible with the thermal transfer application.
Dimensions (Unit : mm) (2 0. 8)
LABEL
3-M3 (Effective Depth 3)
6.1±0.4 (5.396) (5) φ3H10 Length 4
DOT #640
54.208 (Effective Print Width) (Effective Depth 3)
Dot #640 Dot #1
Max.12
28±0.3 Max.5.5 56±0.3
φ3H10 (Effective Depth 3)
CONNECTOR A CONNECTOR B
