2SA1037AK / 2SA1576A / 2SA1774 /
Transistors 2SA2029 / 2SA933AS

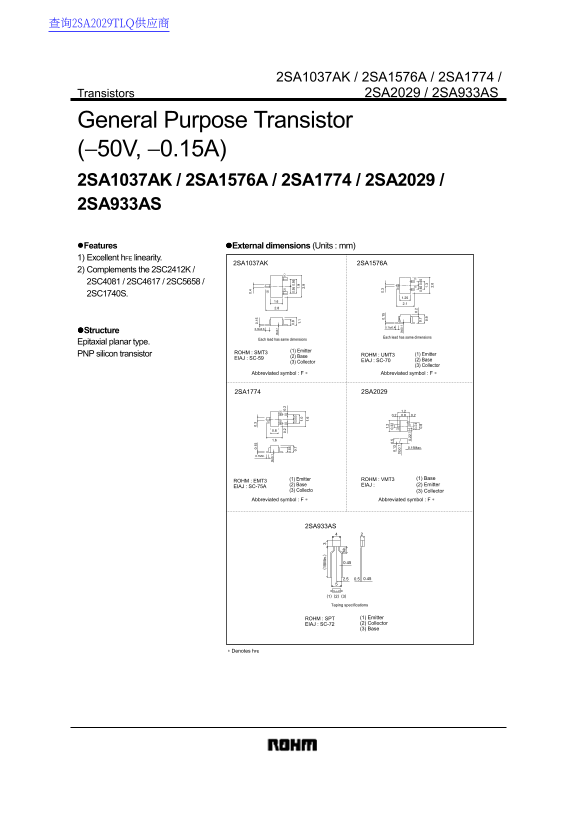

General Purpose Transistor (−50V, −0.15A) 2SA1037AK / 2SA1576A / 2SA1774 / 2SA2029 / 2SA933AS
!Features !External dimensions (Units : mm)
1) Excellent h FE linearity.
2SA1037AK 2SA1576A
2) Complements the 2SC2412K / 0t o0 .1
0t o0 .10.3to0.6
2SC4081 / 2SC4617 / 2SC5658 / 0. 0.
2SC1740S. 0. 70. 0. .5
5M in
!Structure
Each lead has same dimensions
Each lead has same dimensions
Epitaxial planar type. 3M in.
ROHM : SMT3 (1) Emitter
PNP silicon transistor ROHM : UMT3 (1) Emitter
EIAJ : SC-59 (2) Base
EIAJ : SC-70 (2) Base
(3) Collector
(3) Collector
Abbreviated symbol : F ∗ Abbreviated symbol : F ∗
2SA1774 2SA2029 0. 0. 0t o0 .1
0t o0 .10.1to0.4
0.15Max.
0.1Min.
(1) Emitter ROHM : VMT3 (1) Base
ROHM : EMT3
EIAJ : SC-75A (2) Base EIAJ : (2) Emitter
(3) Collecto (3) Collector
Abbreviated symbol : F ∗ Abbreviated symbol : F ∗
2SA933AS
Taping specifications
ROHM : SPT (1) Emitter EIAJ : SC-72 (2) Collector (3) Base
∗ Denotes h FE
