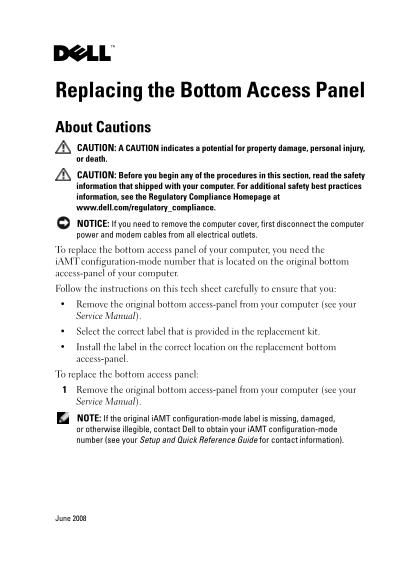

Page 1 Text Content
T539H0am0-edited.fm Page 1 Tuesday, November 3, 2009 4:57 PM
Replacing the Bottom Access Panel About Cautions CAUTION: A CAUTION indicates a potential for property damage, personal injury, or death. CAUTION: Before you begin any of the procedures in this section, read the safety information that shipped with your computer. For additional safety best practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance. NOTICE: If you need to remove the computer cover, first disconnect the computer power and modem cables from all electrical outlets. To replace the bottom access panel of your computer, you need the i AMT configuration-mode number that is located on the original bottom access-panel of your computer. Follow the instructions on this tech sheet carefully to ensure that you: Remove the original bottom access-panel from your computer (see your Service Manual). Select the correct label that is provided in the replacement kit. Install the label in the correct location on the replacement bottom access-panel. To replace the bottom access panel: Remove the original bottom access-panel from your computer (see your Service Manual). NOTE: If the original i AMT configuration-mode label is missing, damaged, or otherwise illegible, contact Dell to obtain your i AMT configuration-mode number (see your Setup and Quick Reference Guide for contact information).
June 2008
Page Summary Contents For Replacing the Bottom Access Panel in Dell Systems - Owner's Manual
Manual Details
| Brand | Access |
|---|---|
| Pages | 2 |
| File Size | 116.51 KB |
| Published | May 12, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the first step before replacing the bottom access panel?
Disconnect all power and modem cables from electrical outlets.
Where is the iAMT configuration-mode number located on the original unit?
It is located on the bottom access panel of your computer.
What should I do if the original iAMT label is missing or illegible?
You must contact Dell to obtain the correct iAMT configuration-mode number.
How do I apply the replacement iAMT configuration-mode label?
Select the matching label from the provided set and install it in the correct location on the new panel.
