Extract from the online catalog

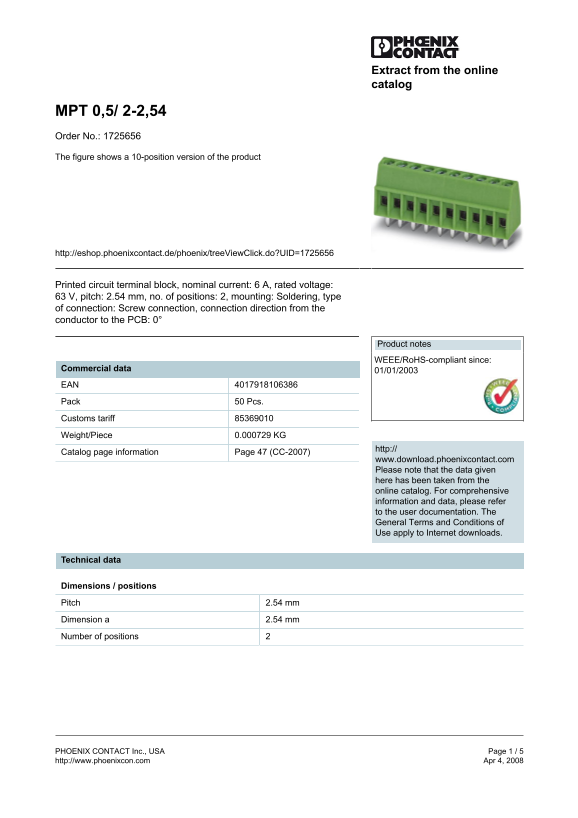

MPT 0,5/ 2-2,54 Order No.: 1725656 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.de/phoenix/tree View Click.do?UID=1725656
Printed circuit terminal block, nominal current: 6 A, rated voltage: 63 V, pitch: 2.54 mm, no. of positions: 2, mounting: Soldering, type of connection: Screw connection, connection direction from the conductor to the PCB: 0°
Product notes WEEE/Ro HS-compliant since:
Commercial data 01/01/2003 EAN Pack 50 Pcs. Customs tariff Weight/Piece 0.000729 KG
http://
Catalog page information Page 47 (CC-2007)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Pitch 2.54 mm Dimension a 2.54 mm Number of positions
