This durable ABS housing cover is designed by Phoenix Contact to provide robust environmental protection for electrical connections. The accompanying documentation serves as a comprehensive technical guide, supplying essential dimensions, operational parameters, and critical mounting drawings tailored for various PCB configurations. Ideal for electrical system designers, industrial engineers, and integration professionals who require reliable, high-compliance enclosures for their permanent installations.

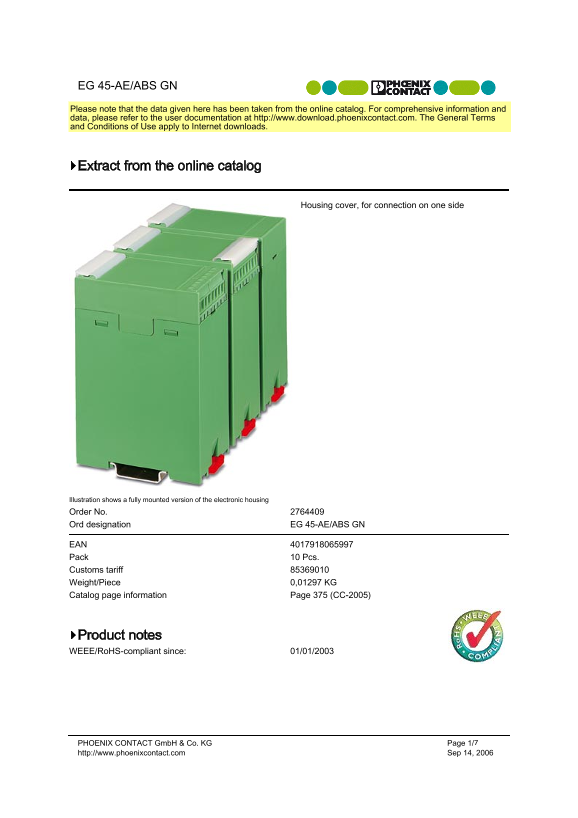

Page 1 Text Content
EG 45-AE/ABS GN Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation at http://www.download.phoenixcontact.com. The General Terms and Conditions of Use apply to Internet downloads.
Extract from the online catalog
Housing cover, for connection on one side
Illustration shows a fully mounted version of the electronic housing Order No. Ord designation EG 45-AE/ABS GN
EAN Pack 10 Pcs. Customs tariff Weight/Piece 0,01297 KG Catalog page information Page 375 (CC-2005)
Product notes WEEE/Ro HS-compliant since: 01/01/2003
PHOENIX CONTACT Gmb H & Co. KG Page 1/7 http://www.phoenixcontact.com Sep 14, 2006
Page Summary Contents For Phoenix Contact EG 45-AE ABS GN Data Handbook Manual
Manual Details
| Brand | Phoenix |
|---|---|
| Pages | 7 |
| File Size | 256.21 KB |
| Published | May 29, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What are the physical dimensions of the EG 45-AE/ABS GN housing cover?
The unit measures 75 mm in length, 17.5 mm in constructional height, and 45 mm in width.
Is this product compliant with environmental standards like RoHS?
Yes, it has been WEEE/RoHS-compliant since January 1, 2003.
What is the maximum ambient temperature for operation?
The specified ambient operating temperature limit for this device is up to 80 °C.
