Phoenix Contact - 1052002_en Designation: ZB 8 UNBEDRUCKT Quick User Guide
Summary
This unprinted zack strip is an essential labeling component designed for efficiently marking individual terminal blocks up to 100 units in width (8.2 mm). The durable, high-contrast product ensures clear labeling across a professional range of industrial electrical systems. This guide details the material specifications, applicable usage with M-PEN, ZB-T, or CMS systems, and operational limits (-40°C to 100°C), making it perfect for engineers and technicians requiring reliable documentation solutions in demanding industrial environments.

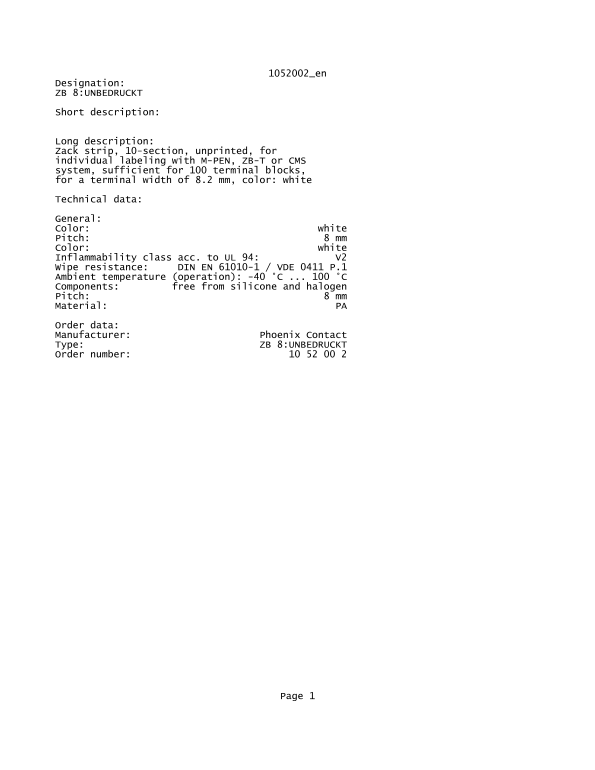

Page 1 Text Content
1052002_en
Designation: ZB 8:UNBEDRUCKT
Short description:
Long description: Zack strip, 10-section, unprinted, for individual labeling with M-PEN, ZB-T or CMS system, sufficient for 100 terminal blocks, for a terminal width of 8.2 mm, color: white
Technical data:
General: Color: white Pitch: 8 mm Color: white Inflammability class acc. to UL 94: V2 Wipe resistance: DIN EN 61010-1 / VDE 0411 P.1 Ambient temperature (operation): -40 °C ... 100 °C Components: free from silicone and halogen Pitch: 8 mm Material: PA
Order data: Manufacturer: Phoenix Contact Type: ZB 8:UNBEDRUCKT Order number: 10 52 00 2
Page Summary Contents For Phoenix Contact - 1052002_en Designation: ZB 8 UNBEDRUCKT Quick User Guide
Manual Details
| Brand | Phoenix |
|---|---|
| Pages | 1 |
| File Size | 19.93 KB |
| Published | May 29, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the purpose of this Zack strip?
It is an unprinted, 10-section strip designed for individual labeling.
How many terminal blocks can this strip accommodate?
It is sufficient for a total of 100 terminal blocks.
What mounting width does the strip require?
The recommended width for the terminal blocks is 8.2 mm.
What are the operating temperature ranges?
The ambient operating temperature range is from -40 °C to 100 °C.
