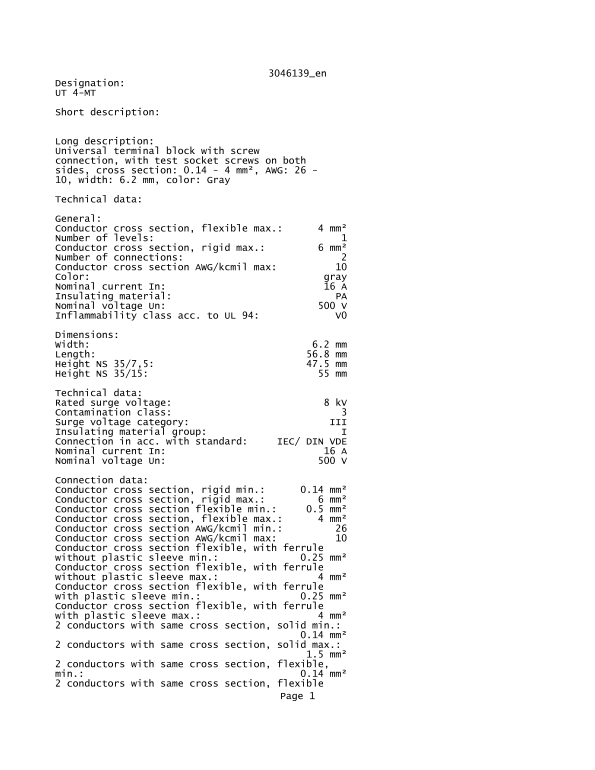

Page 1 Text Content
3046139_en
Designation: UT 4-MT
Short description:
Long description: Universal terminal block with screw connection, with test socket screws on both sides, cross section: 0.14 - 4 mm², AWG: 26 - 10, width: 6.2 mm, color: Gray
Technical data:
General: Conductor cross section, flexible max.: 4 mm² Number of levels: 1 Conductor cross section, rigid max.: 6 mm² Number of connections: 2 Conductor cross section AWG/kcmil max: 10 Color: gray Nominal current In: 16 A Insulating material: PA Nominal voltage Un: 500 V Inflammability class acc. to UL 94: V0
Dimensions: Width: 6.2 mm Length: 56.8 mm Height NS 35/7,5: 47.5 mm Height NS 35/15: 55 mm
Technical data: Rated surge voltage: 8 k V Contamination class: 3 Surge voltage category: III Insulating material group: I Connection in acc. with standard: IEC/ DIN VDE Nominal current In: 16 A Nominal voltage Un: 500 V
Connection data: Conductor cross section, rigid min.: 0.14 mm² Conductor cross section, rigid max.: 6 mm² Conductor cross section flexible min.: 0.5 mm² Conductor cross section, flexible max.: 4 mm² Conductor cross section AWG/kcmil min.: 26 Conductor cross section AWG/kcmil max: 10 Conductor cross section flexible, with ferrule without plastic sleeve min.: 0.25 mm² Conductor cross section flexible, with ferrule without plastic sleeve max.: 4 mm² Conductor cross section flexible, with ferrule with plastic sleeve min.: 0.25 mm² Conductor cross section flexible, with ferrule with plastic sleeve max.: 4 mm² 2 conductors with same cross section, solid min.: 0.14 mm² 2 conductors with same cross section, solid max.: 1.5 mm² 2 conductors with same cross section, flexible, min.: 0.14 mm² 2 conductors with same cross section, flexible
