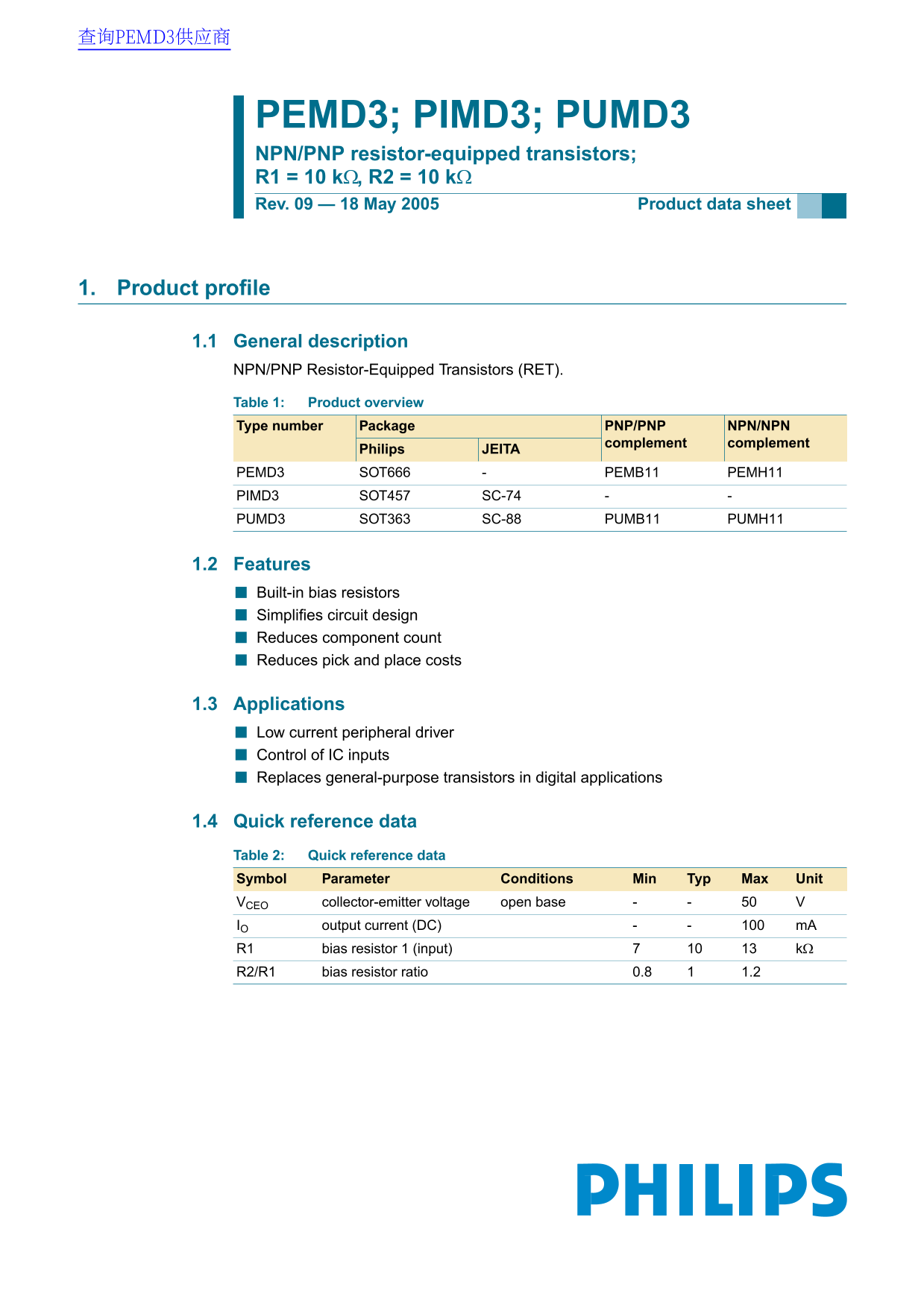

PEMD3; PIMD3; PUMD3 NPN/PNP resistor-equipped transistors; R1 = 10 kΩ, R2 = 10 kΩ Rev. 09 — 18 May 2005 Product data sheet
1. Product profile
1.1 General description NPN/PNP Resistor-Equipped Transistors (RET). Table 1: Product overview Type number Package PNP/PNP NPN/NPN
complement complement Philips
JEITA
PEMD3 SOT666 PEMB11 PEMH11 PIMD3 SOT457 SC-74 PUMD3 SOT363 SC-88 PUMB11 PUMH11
1.2 Features Built-in bias resistors Simplifies circuit design Reduces component count Reduces pick and place costs
1.3 Applications Low current peripheral driver Control of IC inputs Replaces general-purpose transistors in digital applications
1.4 Quick reference data Table 2: Quick reference data Symbol Parameter Conditions Min Typ Max Unit
VCEO collector-emitter voltage open base IO output current (DC) m A
R1 bias resistor 1 (input) kΩ R2/R1 bias resistor ratio 0.8 1.2
