PHILIPS 1PS181 Data Sheet / Manual
Summary
Discrete semiconductor datasheet for the Philips 1PS181 high-speed double diode in SC59 SMD plastic package. Features two switching diodes with common anodes in planar technology rated for 80V continuous reverse voltage, 85V peak repetitive reverse voltage, 500mA peak forward current, and max 4ns switching speed. Package marking code A3T. Applications include high-speed switching in surface-mounted circuits. Electrical characteristics cover forward voltage, reverse current, and capacitance with graphical data across temperature range.
Page 1 Text Content
查询1PS181供应商
DISCRETE SEMICONDUCTORS
DATA SHEET book, halfpage
1PS181 High-speed double diode
Product specification Sep
Supersedes data of April 1996
Page Summary Contents For PHILIPS 1PS181 Data Sheet / Manual

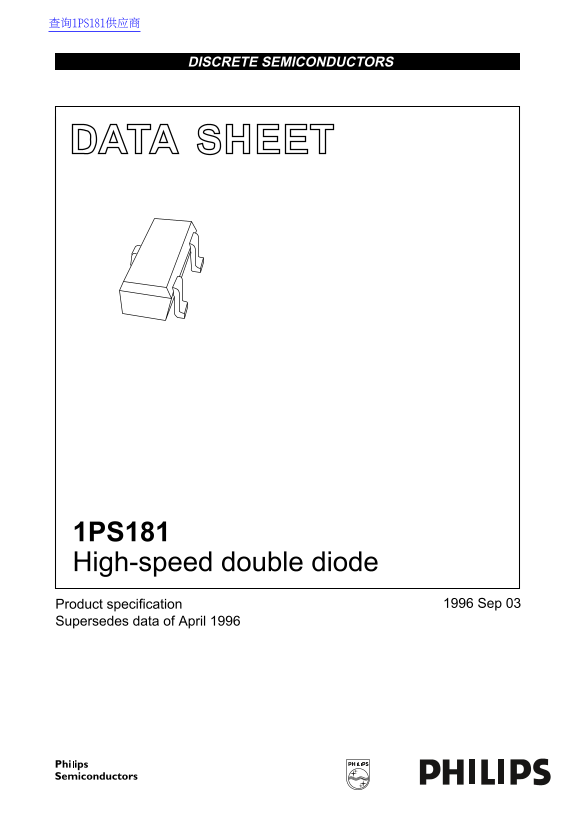

Page 1
查询1PS181供应商 DISCRETE SEMICONDUCTORS DATA SHEET book, halfpage 1PS181 High-speed double diode Product specification Sep Supersedes data of April 1996
Page 2
Philips Semiconductors Product specification High-speed double diode 1PS181 FEATURES DESCRIPTION PINNING Small plastic SMD package The 1PS181 consists of two PIN DESCRIPTION high-speed switching diode...
Page 3
Philips Semiconductors Product specification High-speed double diode 1PS181 ELECTRICAL CHARACTERISTICS Tj °C; unless otherwise specified. SYMBOL PARAMETER CONDITIONS TYP. MAX. UNIT Per diode VF forwar...
Page 4
Philips Semiconductors Product specification High-speed double diode 1PS181 GRAPHICAL DATA MBD033 MBG382 handbook, halfpage single diode loaded double diode loaded VF (V) T ( C)amb (1) Tj °C; typical ...
Page 5
Philips Semiconductors Product specification High-speed double diode 1PS181 handbook, full pagewidth D.U.T. 10% IF R = 50S rr SAMPLING OSCILLOSCOPE V = V I x RR R = 50i MGA881 input signal output sign...
Page 6
Philips Semiconductors Product specification High-speed double diode 1PS181 PACKAGE OUTLINE handbook, full pagewidth 1.65 1.3 0.50 1.25 1.00.100 AM0.2 0.35 0.013 MSA313 - 1 Dimensions in mm. Fig.8 SC5...
Manual Details
| Brand | Philips |
|---|---|
| Pages | 6 |
| File Size | 34.56 KB |
| Published | June 16, 2026 |
