Panasonic Series Chip Type RF, NC, FA, PE, EA RE, NA, FB, PC, ND, FC, SA, PA Owner's Manual and User Guide

Summary

High-performance Chip Inductors are essential components for advanced, high-frequency electronic circuits. This detailed manual serves as a comprehensive resource for selecting and implementing these precision parts across various applications. The documentation provides material specifications, inductance guides, performance data on Q/L ratios, DC current limits, and crucial instructions for optimal soldering and manufacturing practices in high-density assemblies. It is specifically engineered for electronics design engineers and professional prototypers developing reliable communications equipment, including portable phones, video cameras, and industrial modules.

📄 Preview ‹ PAGE OF 15 ›

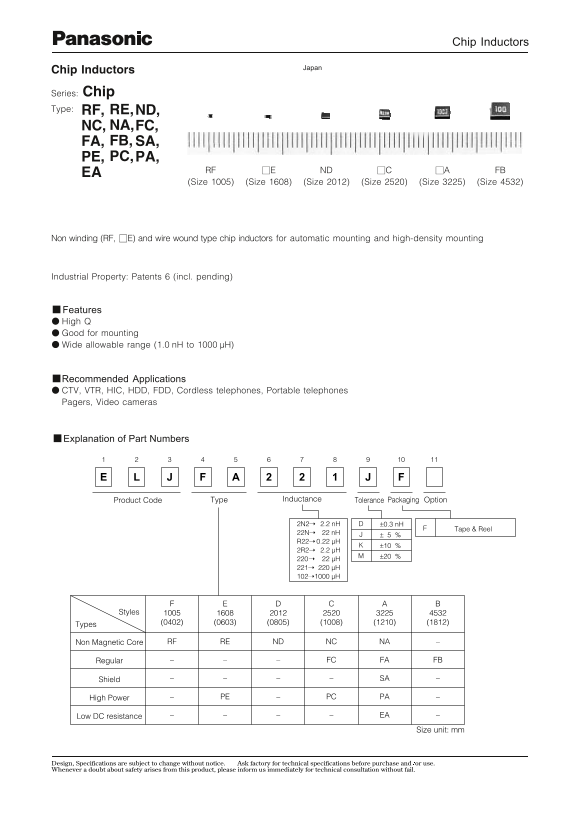

‹ Panasonic Series Chip Type RF, NC, FA, PE, EA RE, NA, FB, PC, ND, FC, SA, PA Owner's Manual and User Guide - Page 1 ›

Page 1 Text Content

Chip Inductors

Japan

Chip Inductors Series: Chip Type: RF, RE, ND,

NC, NA, FC, FA, FB, SA, PE, PC, PA,

RF 1E ND 1C 1A FB

(Size 1005) (Size 1608) (Size 2012) (Size 2520) (Size 3225) (Size 4532)

Non winding (RF, 1E) and wire wound type chip inductors for automatic mounting and high-density mounting

Industrial Property: Patents 6 (incl. pending)

■ Features High Q Good for mounting Wide allowable range (1.0 n H to 1000 µH)

Recommended Applications CTV, VTR, HIC, HDD, FDD, Cordless telephones, Portable telephones Pagers, Video cameras

■ Explanation of Part Numbers

Page Summary Contents For Panasonic Series Chip Type RF, NC, FA, PE, EA RE, NA, FB, PC, ND, FC, SA, PA Owner's Manual and User Guide

Page 1 Chip Inductors Japan Chip Inductors Series: Chip Type: RF, RE, ND, NC, NA, FC, FA, FB, SA, PE, PC, PA, RF 1E ND 1C 1A FB (Size 1005) (Size 1608) (Size 2012) (Size 2520) (Size 3225) (Size 4532) Non win...
Page 2 Chip Inductors ■ Inductance, Size Guide
Page 3 Chip Inductors 1. Non Magnetic Core Types RF, RE, ND, NC, NA ■ Examples : Type 1005(0402)RF Inductnce Test-Freq. Typical SRF.✽1 DCR.✽2 DC current Part No. n H Tolerance (MHz) (800 MHz) min.(MHz) max.(...
Page 4 Chip Inductors ■ Examples : Type 1608(0603)RE Inductance SRF ✽1 DCR ✽2 DC Current Part No. Test-Freq. Typical n H Tolerance min.(MHz) max.(Ω) max.(m A) MHz) (800 MHz) ELJRE1N0DF2 1.0 0.05 ELJRE1N2DF2 ...
Page 5 Chip Inductors Examples : Type 2012(0805)ND Inductance L , Q SRF ✽1 DCR ✽2 DC Current Part No. min. Test-Freq. Typical min.(MHz) max.(Ω) max.(m A) n H Tolerance (800 MHz) ELJND10NKF 0.18 ELJND12NKF 0....
Page 6 Chip Inductors ■ Examples : Type 2520(1008)NC Inductance L , Q Test SRF ✽1 DCR ✽2 DC Current Part No. min. Freq.( MHz) min.(MHz) n H Tolerance max.(Ω) max.(m A) ELJNC10NKF 0.32 ELJNC12NKF 0.34 ELJNC15...
Page 7 Chip Inductors 2. Normal Types FC, FA, SA, FB ■ Examples : Type 2520(1008)FC Inductance SRF ✽1 DC Current L , Q Test DCR ✽2 Part No. Freq.( MHz) min.(MHz) max.(Ω) max.(m A) µH Tolerance ELJFCR22M/KF 0...
Page 8 Chip Inductors ■ Examples : Type 3225(1210)FA Inductance SRF ✽1 DC Current L , Q Test DCR ✽2 Part No. Freq.( MHz) min.(MHz) max.(Ω) max.(m A) µH Tolerance ELJFAR22M/KF2 0.22 0.29 ELJFAR27M/KF2 0.27 0....
Page 9 Chip Inductors ■ Examples : Type 3225(1210)SA Inductance SRF ✽1 DCR ✽2 DC Current Part No. min.(MHz) max.(Ω) max.(m A) µH Freq. (MHz) Tolerance min. Freq. (MHz) ELJSA100KF 1.8 ELJSA120KF 2.0 ELJSA150K...
Page 10 Chip Inductors 3. High Power Types PE, PC, PA ■ xamples : Type 1608(0603)PE Inductance L , Q Test SRF ✽1 DCR ✽2 DC Current Part No. min. Freq.( MHz) min.(MHz) max.(Ω) max.(m A) n H Tolerance ELJPE2N2K...
Page 11 Chip Inductors Examples : Type 3225(1210)PA Inductance L , Q Test SRF ✽1 DCR ✽2 DC Current Part No. Freq.( MHz) min.(MHz) max.(Ω) max.(m A) µH Tolerance ELJPA1R0MF 1.0 0.15 ELJPA1R5MF 1.5 0.18 ELJPA2R...
Page 12 Chip Inductors ■ Dimensions in mm (not to scale) Type RF Type RE, PE (1.0×0.5×0.5) (1.6×0.8×0.8) Type ND (2.0×1.25×1.25) ■ Recommended Land Pattern in mm (not to scale) Type RF 0.5~0.6 1.5~1.7 0.5~0.6...
Page 13 Chip Inductors ■ Paper Tape Dimensions in mm (not to scale) Type RF ■ Embossed Carrier Tape Dimensions in mm (not to scale) Types RE, PE, ND, NC, FC, PC (W=8 mm) Types NA, FA, SA, PA , EA (W=8 mm) Typ...
Page 14 Chip Inductors Dimensions Size/Types 1608(0603) RE, PE 1.0 1.8 3.5 1.75 4.0 2.0 4.0 1.5 0.6 (0.27) 1.2 2012(0805) ND 1.45 2.25 3.5 1.75 4.0 2.0 4.0 1.5 1.0 (0.25) 1.55 2520(1008) NC, FC, PC 2.4 2.9 3....
Page 15 Chip Inductors Cautions for use For securing upgraded reliability and safety, consider following caution items. 1. Land pattern design Refer to the recommended land dimensions of each type at flow and...

Manual Details

Brand Panasonic
Pages 15
File Size 571.50 KB
Published June 01, 2026
68 views

Enter the captcha to get the download link:

captcha

Frequently Asked Questions

What is the typical inductance range supported by these chip inductors?

The allowable wide range spans from 1.0 nH up to 1000 µH.

Are there different mounting methods recommended for installation?

Yes, land pattern design must refer to recommended land dimensions for flow and reflow soldering, avoiding metal patterns except the designated land.

Under what conditions should I avoid using these inductors?

Avoid operating them beyond their specified rated current. Also, do not use acid or alkali agents during cleaning.
