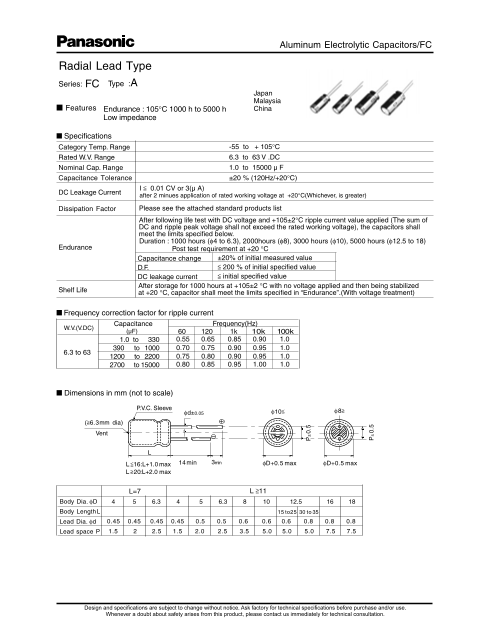

Page 1 Text Content
Aluminum Electrolytic Capacitors/FC
Radial Lead Type
FCSeries: Type :A
Japan Malaysia
Features Endurance : 105°C 1000 h to 5000 h China
Low impedance
Specifications
Category Temp. Range -55 to + 105°C Rated W.V. Range 6.3 to 63 V .DC Nominal Cap. Range 1.0 to 15000 µ F Capacitance Tolerance ±20 % (120Hz/+20°C)
I 0.01 CV or 3(µ A)
DC Leakage Current
after 2 minues application of rated working voltage at +20°C(Whichever, is greater)
Dissipation Factor Please see the attached standard products list After following life test with DC voltage and +105±2°C ripple current value applied (The sum of DC and ripple peak voltage shall not exceed the rated working voltage), the capacitors shall meet the limits specified below. Duration : 1000 hours (φ4 to 6.3), 2000hours (φ8), 3000 hours (φ10), 5000 hours (φ12.5 to 18)
Endurance Post test requirement at +20 °C
Capacitance change ±20% of initial measured value D.F. 200 % of initial specified value DC leakage current initial specified value
After storage for 1000 hours at +105±2 °C with no voltage applied and then being stabilized
Shelf Life
at +20 °C, capacitor shall meet the limits specified in “Endurance”.(With voltage treatment)
Frequency correction factor for ripple current
Capacitance Frequency(Hz)
W.V.(V.DC)
1.0 to 330 0.55 0.65 0.85 0.90 1.0 390 to 1000 0.70 0.75 0.90 0.95 1.0
6.3 to 63
1200 to 2200 0.75 0.80 0.90 0.95 1.0 2700 to 15000 0.80 0.85 0.95 1.00 1.0 0.
Dimensions in mm (not to scale)
P.V.C. Sleeve
(6.3mm dia) Vent
14 min 3 min φD+0.5 max φD+0.5 max
16:L+1.0 max 20:L+2.0 max
Body Dia. φD 4 5 6.3 4 5 6.3 8 10 12.5 16 18 Body Length L to25 30 to 35
Lead Dia. φd 0.45 0.45 0.45 0.45 0.5 0.5 0.6 0.6 0.6 0.8 0.8 0.8 Lead space P 1.5 2 2.5 1.5 2.0 2.5 3.5 5.0 5.0 5.0 7.5 7.5
