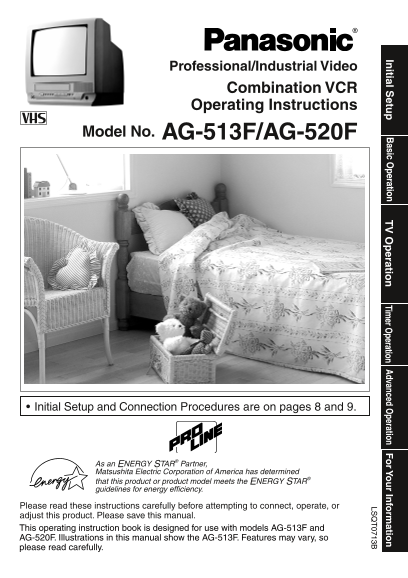

In itial S etu asic O peration eratio Tim er O peration Advanced O peration r Yo r In fo rm atio
LS 0713B
Professional/Industrial Video
Combination VCR Operating Instructions
Model No. AG-513F/AG-520F
Initial Setup and Connection Procedures are on pages 8 and 9.
As an ENERGY STAR® Partner, Matsushita Electric Corporation of Amer i ca has de ter mined that this prod uct or product mod el meets the ENERGY STAR® guide lines for en er gy ef fi cien cy.
Please read these instructions carefully before attempting to connect, operate, or adjust this product. Please save this manual. This operating instruction book is designed for use with models AG-513F and AG-520F. Illustrations in this manual show the AG-513F. Fea tures may vary, so please read care ful ly.
Page Summary Contents For Panasonic AG-513F User Guide
Page 1
In itial S etu asic O peration eratio Tim er O peration Advanced O peration r Yo r In fo rm atio LS 0713B Professional/Industrial Video Combination VCR Operating Instructions Model No. AG-513F/AG-520F...
Page 2
Important Safeguards and Pre cau tions OUTDOOR ANTENNA INSTALLATION READ AND RETAIN ALL SAFETY AND OPERATING INSTRUCTIONS. HEED ALL 1 SAFE ANTENNA AND CABLE CONNECTION WARNINGS IN THE MANUAL AND ON UN...
Page 3
Safety Precautions/Mesures de sécurité Warning : To prevent fi re or shock hazard, do not expose this equipment to rain or moisture. Avertissement : Afi n de prévenir tout risque d’incendie ou de choc...
Page 4
Unit Information Head Cleaning Specifi cations Playing older or damaged tapes may eventually Display cause video heads to become clogged. 13 inch (AG-513F)/ 20 inch (AG-520F) Head Clog Sensor Picture ...
Page 5
In itial S etu asic O peration eratio Tim er O peration dvanced O peration r Yo r In fo rm atio Table of Contents Important Safeguards and Precautions Safety Precautions/Mesures de sécurité..............
Page 6
Location of Controls Remote Control Buttons EJECT NIGHT Color and picture intensity level Ejects tape. are adjusted during night time use. POWER Turns unit on or off. SLEEP Turns off the unit automati...
Page 7
In itial S etu Front View of the Unit and Indicators <Model AG-513F unit shown> POWER VOL CH STOP/EJECT REW/ PLAY/REPEAT FF/ REC INPUT REC ON TIMER PROG TIMER ACTION VIDEO IN AUDIO IN Built-In S...
Page 8
Connections Please make all cable or antenna connections before power on. Connecting For ANT./Cable Connect the cable from Antenna/Cable to the VHF/UHF terminal on the unit. UNIT (rear view) VHF/UHF V...
Page 9
Initial Setup In itial S etu Set the Clock (Initial Power On) Tuner ON/OFF Your unit can be set to Tuner ON or Tuner OFF. When Tuner OFF is selected, your unit is When the unit is fi rst turned on, th...
Page 10
Initial Setup (continued) POWER NUMBER Keys ADD/DLT SELECT/SET :CH UP ACTION :CH DOWN :VOL UP :VOL DOWN
Page 11
In itial S etu Reset all unit Memory Functions Add or Delete a Channel To add channel: When moving unit to a new location, or if a mistake Select channel with number keys and was made in the Initial S...
Page 12
Reset Language, Channels, Clock, M A I N MENU Press ACTION to display MAIN MENU. LOCKT V LANGUAGE EX I TCLOCKC H SELECT : SET : ACT I ON Language Channels Clock (TUNER: ON only) 1) Press to 1) Press t...
Page 13
asic O peration Time Zone Adjust POWER Time Zone Adjust (TUNER: ON only) (Only when Auto Clock is set.) 1) Press to select “CLOCK.” SELECT/SET :CH UP M A I N MENU :CH DOWN ACTION :VOL UP :VOL DOWN T V...
Page 14
Record On a Tape Playback a Tape Insert a cassette with record tab Check List • The unit power comes on automatically. Cable or antenna is connected. Power cord is plugged in. Press CH or number keys ...
Page 15
asic O peration Copy Your Tapes (Dubbing) Connections you’ll need to make. Recording (Editing) unit Playing (Source) VCR AUDIO VID EO IN FROM ANT. AUDIO INVIDEO IN OUT TO TV Playback (Source) Recordin...
Page 16
TV Operation Check List Press POWER on the remote or unit. Cable or antenna is connected. Power cord is plugged in. Use CH CH 08 or number keys to select a channel. Press VOL + or VOL - to adjust volu...
Page 17
eratio Picture Adjustment Press ACTION to display MAIN MENU. M A I N MENU 1) Press to select “TV.” LOCKT V LANGUAGE 2) Press ACTION NIGHT to display SET EX I TCLOCKC H NUMBER UP TV screen. POWER SELEC...
Page 18
TV Timer Features ON-TIMER with Alarm Check List This unit can be set to automatically power on in one of 2 The clock is set to the correct time. modes (TV or Playback). Even if you set the On Timer, ...
Page 19
eratio Sleep Timer This unit can be set for auto power off. Press SLEEP repeatedly SLEEP to set SLEEP TIMER. • Pressing DISPLAY with sleep timer set displays remaining DISPLAY time. • Sleep Timer will...
Page 20
Closed Caption System Closed Caption is ... This multi-use system not only allows the hearing impaired to enjoy selected programs, but also makes useful information from TV stations available to every...
Page 21
eratio Caption On Mute Feature Closed Caption narration, if available, is displayed when MUTE button is pressed. Press ACTION to display MAIN MENU. 1) Press to M A I N MENU select “TV.” 2) Press ACTIO...
Page 22
Timer Recording You can set up to 8 programs to be recorded while you are Check List away. Cable or antenna is connected. Press PROG to display SET PROGRAM screen. Power cord is plugged in. The clock ...
Page 23
Tim er O peration Cancel a Timer Recording: Review, Replace or Clear Program (Recording is in progress) Contents : (Recording is not in progress) Hold down STOP for a few Repeat steps 1 and 2 on page ...
Page 24
Tape Operation Search System is ... Each time a recording is made, an invisible index mark is placed on the tape. When timer recordings are made, program index and information are also included. These...
Page 25
dvanced O peration Auto Operation Functions ■ Auto Shut Off No broadcast signal in TV (Only when Weak Signal Display is set to OFF), blank tape is Played for 5 minutes ➞ Power turns off • This feature...
Page 26
Tape Operation (continued) Zero Search Commercial Skip To quickly return to a specifi c tape counter location. By pressing the CM/ZERO button in Playback mode you can skip over 1 to 3 minutes of recor...
Page 27
dvanced O peration Repeat Play Set to see a recording over and over. PLAY In PLAY mode, REPEAT ON press PLAY/REPEAT on the unit to turn “ON.” POWER VOL CH STOP/EJECT REW/ PLAY/REPEAT FF/ REC INPUT REC...
Page 28
Special VCR Features Weak Signal Display ON/OFF (TUNER:ON only) When “ON” is selected, the picture is displayed even when a broadcast signal is weak or non-existent. Press ACTION to display MAIN MENU....
Page 29
dvanced O peration V-Chip Control Feature Process of V-Chip Control Feature V-Chip Control Feature is... Setup Blocking Enter Code This unit has a built-in V-Chip Control which allows you to block unw...
Page 30
V-Chip Control Feature (continued) If LOCK menu is not displayed, do “Enter Secret Process of V-Chip Control Feature Code” steps on page 29. Enter Code Setup Blocking Setup US MOVIES Ratings Setup US ...
Page 31
dvanced O peration Process of V-Chip Control Feature Enter Code Setup Blocking Blocking Message US MOVIES RATINGS <When V-Chip Control is activated> GENERAL AUDIENCE: All ages admitted. CH08 • I...
Page 32
On-Screen Display (OSD) VCR Status & Clock Display Press DISPLAY to display or remove the overlay. Function Status Current Time Channel REC 1 2 : 0 0PM CH08 Rec Time Remaining -0 : 1 2 : 3 4 0 : 2...
Page 33
Warning and Instruction Displays r Yo r In fo rm atio These displays will alert you to a missed operation or provide further instructions. OSD CAUTION Page PLEASE SET CLOCK BY If you attempt to set or...
Page 34
Before Requesting Service Check the following points once again if you are having trouble with your unit. Power CORRECTION • Completely insert Power Plug into an AC outlet. No power… • Set POWER butto...
Page 35
Index r Yo r In fo rm atio Accessories Rapid Tune...................................................... Audio Mute Record............................................................. Auto Operation Fu...
Page 36
Broadcast & Digital Systems Company Panasonic Broadcast & Television Systems Company Division of Matsushita Electric Corporation of America Executive Offi ce: One Panasonic Way 4E-7, Secaucus,...
