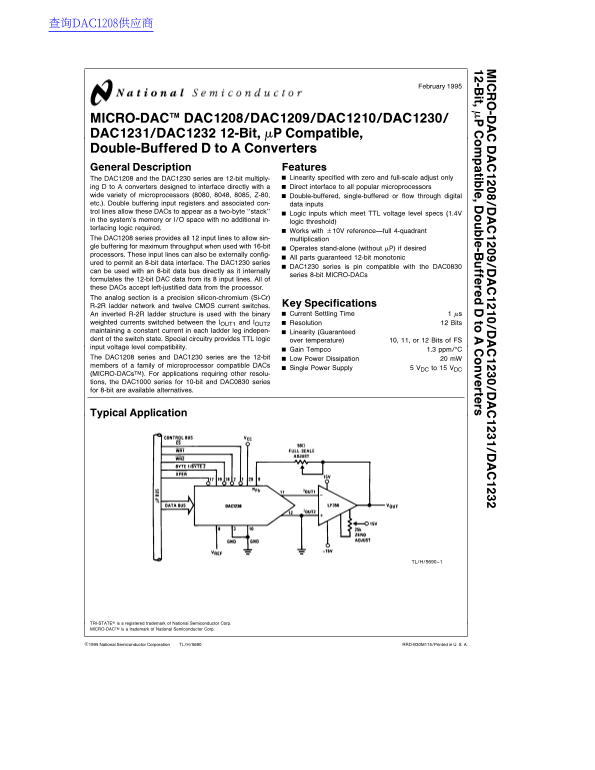

National Semiconductor MICRO-_DAC TM DAC1208 DAC1209 DAC1210 DAC1230 DAC1231 DAC1232 12-Bit mPa-Compatible, Double Buffered D-to-A Converters
Summary
These advanced 12-bit, double-buffered Digital-to-Analog Converters (DACs) are essential components for interfacing microprocessors requiring high-precision analog signals. Designed for compatibility with popular processors like the 8080 and Z-80, these converters ensure superior resolution and linearity across diverse operating environments. This guide provides comprehensive technical specifications, detailing operational ratings, voltage requirements, electrical characteristics, and mounting options for the entire DAC1208/DAC1230 series family, making it ideal for electronics engineers and product designers integrating complex data acquisition systems.
Manual Details
| Brand | National |
|---|---|
| Pages | 18 |
| File Size | 363.76 KB |
| Published | June 04, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
How does this DAC maintain high performance and throughput?
It uses double-buffered input registers, allowing it to appear as a two-byte “stack” for maximum throughput.
Is this DAC compatible with 8-bit data interfaces?
Yes, the DAC1230 series is pin compatible with the DAC0830 and can be used directly on an 8-bit data bus internally serializing the data.
What voltage range should I use for a single power supply?
The device operates using a single DC power supply ranging from 5 V to 15 V.
What alternatives are available if I need a different resolution?
For lower resolutions, the DAC1000 series is available for 10-bit, and the DAC0830 series is an alternative for 8-bit.
