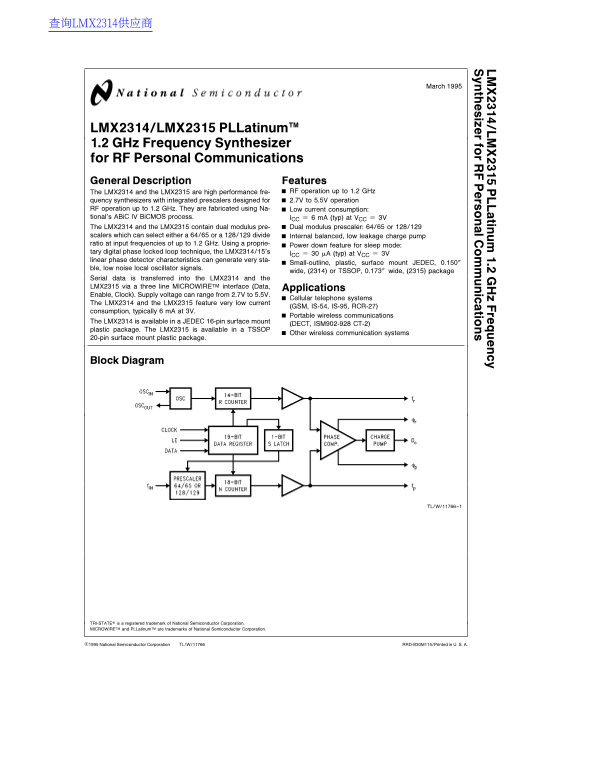

Page 1 Text Content

查询LMX2314供应商

March

tin .2 re

th iz fo rs ic tio LMX2314/LMX2315 PLLatinum TM 1.2 GHz Frequency Synthesizer for RF Personal Communications General Description Features

The LMX2314 and the LMX2315 are high performance fre- RF operation up to 1.2 GHz

quency synthesizers with integrated prescalers designed for 2.7V to 5.5V operation RF operation up to 1.2 GHz. They are fabricated using Na- Low current consumption: tional’s ABi C IV Bi CMOS process. ICC m A (typ) at VCC 3V The LMX2314 and the LMX2315 contain dual modulus pre- Dual modulus prescaler: 64/65 or 128/129 scalers which can select either 64/65 or 128/129 divide Internal balanced, low leakage charge pump ratio at input frequencies of up to 1.2 GHz. Using proprie-

Power down feature for sleep mode:

tary digital phase locked loop technique, the LMX2314/15’s

ICC m A (typ) at VCC 3V

linear phase detector characteristics can generate very sta-

Small-outline, plastic, surface mount JEDEC, 0.150×

ble, low noise local oscillator signals.

wide, (2314) or TSSOP, 0.173× wide, (2315) package

Serial data is transferred into the LMX2314 and the LMX2315 via three line MICROWIRETM interface (Data,

Applications

Enable, Clock). Supply voltage can range from 2.7V to 5.5V.

Cellular telephone systems

The LMX2314 and the LMX2315 feature very low current

(GSM, IS-54, IS-95, RCR-27)

consumption, typically m A at 3V.

Portable wireless communications

The LMX2314 is available in JEDEC 16-pin surface mount

(DECT, ISM902-928 CT-2)

plastic package. The LMX2315 is available in TSSOP

Other wireless communication systems

20-pin surface mount plastic package.

Block Diagram

TL/W/11766–1

TRI-STATEÉ is registered trademark of National Semiconductor Corporation. MICROWIRETM and PLLatinum TM are trademarks of National Semiconductor Corporation.

C1995 National Semiconductor Corporation TL/W/11766 RRD-B30M115/Printed in U. S. A.

Page Summary Contents For National LMX2314 LMX2315 Data Sheet

Page 1 查询LMX2314供应商 March tin .2 re th iz fo rs ic tio LMX2314/LMX2315 PLLatinum TM 1.2 GHz Frequency Synthesizer for RF Personal Communications General Description Features The LMX2314 and the LMX2315 are h...
Page 2 Connection Diagrams LMX2314 LMX2315 TL/W/11766–2 JEDEC 16-Lead (0.150× Wide) Small Outline Molded Package (M) TL/W/11766–3 Order Number LMX2314M or LMX2314MX 20-Lead (0.173× Wide) Thin Shrink See NS P...
Page 3 Functional Block Diagram TL/W/11766–4 Note 1: The power down function is gated by the charge pump to prevent any unwanted frequency jumps. Once the power down pin is brought low the part will go into ...
Page 4 Absolute Maximum Ratings (Note 1) Recommended Operating If Military/Aerospace specified devices are required, Conditions please contact the National Semiconductor Sales Power Supply Voltage Office/Dis...
Page 5 Electrical Characteristics VCC 5.0V, VP 5.0V; b40§C TA 85§C, except as specified (Continued) Symbol Parameter Conditions Min Typ Max Units IDo-source Charge Pump Output Current VDo VP/2 b5.0 m A IDo-s...
Page 6 Typical Performance Characteristics ICC vs VCC IDo TRI-STATE vs Do Voltage TL/W/11766–29 TL/W/11766–30 Charge Pump Current vs Do Voltage Charge Pump Current vs Do Voltage TL/W/11766–31 TL/W/11766–32 C...
Page 7 Typical Performance Characteristics (Continued) Input Sensitivity vs Frequency Input Sensitivity vs Frequency TL/W/11766–35 TL/W/11766–36 Input Sensitivity at Temperature Input Sensitivity at Temperat...
Page 8 Charge Pump Current Specification Definitions TL/W/11766–41 I1 CP sink current at VDo VP DV I4 CP source current at VDo VP DV I2 CP sink current at VDo VP/2 I5 CP source current at VDo VP/2 I3 CP sink...
Page 9 Functional Description The simplified block diagram below shows the 19-bit data register, the 14-bit Counter and the Latch, and the 18-bit Counter (intermediate latches are not shown). The data stream...
Page 10 Functional Description (Continued) PROGRAMMABLE DIVIDER (N COUNTER) The counter consists of the 7-bit swallow counter (A counter) and the 11-bit programmable counter (B counter). If the Control Bit (l...
Page 11 Functional Description (Continued) SERIAL DATA INPUT TIMING TL/W/11766–8 Notes: Parenthesis data indicates programmable reference divider data. Data shifted into register on clock rising edge. Data is...
Page 12 Analog Switch (2315 only) The analog switch is useful for radio systems that utilize frequency scanning mode and narrow band mode. The purpose of the analog switch is to decrease the loop filter time ...
Page 13 Typical Application Example Operational Notes: TL/W/11766–14 VCO is assumed AC coupled. RIN increases impedance so that VCO output power is provided to the load rather than the PLL. Typical values are...
Page 14 Application Information LOOP FILTER DESIGN block diagram of the basic phase locked loop is shown. TL/W/11766–16 FIGURE 1. Basic Charge Pump Phase Locked Loop An example of passive loop filter configur...
Page 15 Application Information (Continued) Therefore, if we specify the loop bandwidth, 0p, and the In choosing the loop filter components trade off must be phase margin, wp, Equations through allow us to ca...
Page 16 Application Information (Continued) Consider the following application example: Example Ý1 KVCO MHz/V Kw m A (Note 1) RFopt MHz Fref k Hz RFopt/fref 0p 2q k Hz 1.256e5 wp 45§ ATTEN d B secwp tanwp T1 ...
Page 17 Application Information (Continued) MEASUREMENT RESULTS TL/W/11766–21 TL/W/11766–22 FIGURE 5. PLL Reference Spurs FIGURE 7. PLL Phase Noise k Hz Offset The reference spurious level is b74 d Bc, due to...
Page 18 Application Information (Continued) EXTERNAL CHARGE PUMP EXAMPLE The LMX PLLatimum series of frequency synthesizers are Typical Device Parameters bn e100, bp equipped with an internal balanced charge ...
Page 19 Physical Dimensions inches (millimeters) JEDEC 16-Lead (0.150× Wide) Small Outline Molded Package (M) Order Number LMX2314M For Tape and Reel Order Number LMX2314MX (2500 Units per Reel) NS Package Nu...
Page 20 ti .2 re th iz fo rs ic ti Physical Dimensions millimeters (Continued) NS Package Number MTC20 20-Lead (0.173× Wide) Thin Shrink Small Outline Package (TM) Order Number LMX2315TM For Tape and Reel Ord...
