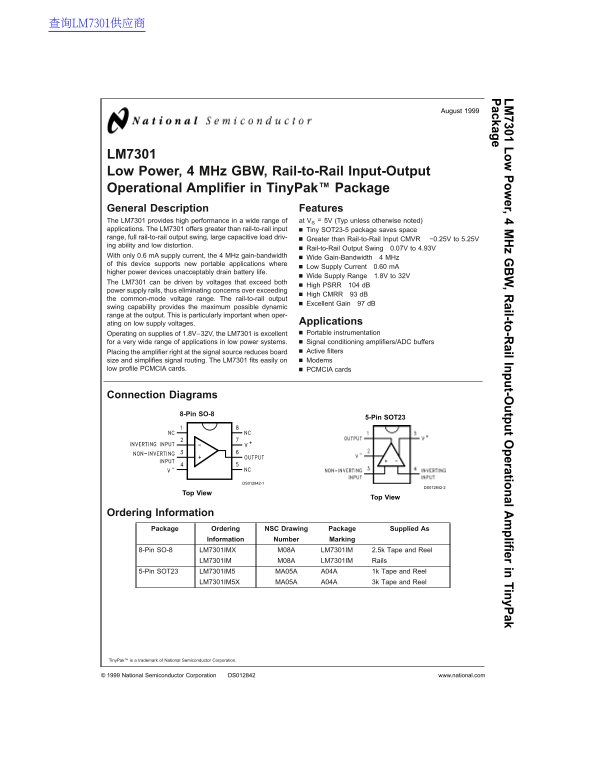

National LM7301 Data Sheet
Summary
The LM7301 is a high-performance, ultra low-power operational amplifier designed for demanding portable and space-constrained applications. Featuring excellent 4 MHz Gain-Bandwidth Product and full rail-to-rail input/output, this op-amp operates effectively across a wide supply range (1.8V to 32V). The manual provides comprehensive details on optimal usage in signal conditioning, active filters, and ADC buffering circuits for engineers building highly reliable, energy-efficient systems.
Manual Details
| Brand | National |
|---|---|
| Pages | 11 |
| File Size | 266.01 KB |
| Published | June 01, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the operating voltage range?
The LM7301 operates on a wide supply range from 1.8V up to 32V.
How much current does it draw?
It uses only a low supply current of 0.6 mA, making it ideal for portable applications.
What is the maximum common-mode voltage (VCM) range?
The device can handle a wide V_ICM range from -0.25V to 5.25V.
Which package fits on low profile cards?
It comes in an ultra-small TinyPak SOT-23-5 package, suitable for minimizing board size.
