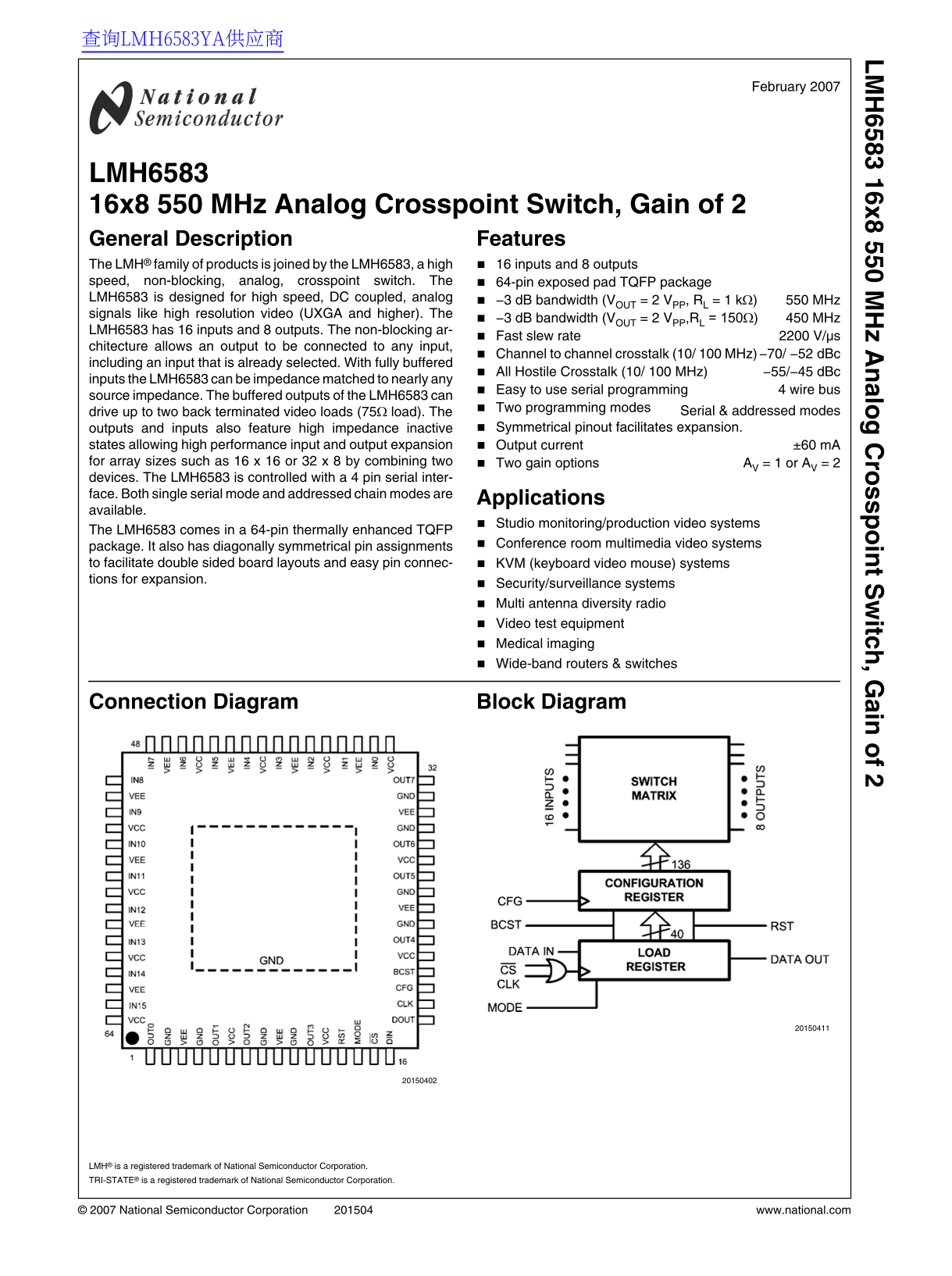

Page 1 Text Content
查询LMH6583YA供应商
z A lo ro in t S itc , G in f 2
February 2007
LMH6583 16x8 550 MHz Analog Crosspoint Switch, Gain of 2 General Description Features
The LMH® family of products is joined by the LMH6583, a high 16 inputs and 8 outputs
speed, non-blocking, analog, crosspoint switch. The 64-pin exposed pad TQFP package LMH6583 is designed for high speed, DC coupled, analog −3 d B bandwidth (VOUT = 2 VPP, RL = 1 kΩ) 550 MHz signals like high resolution video (UXGA and higher). The
−3 d B bandwidth (VOUT = 2 VPP,RL = 150Ω) 450 MHz
LMH6583 has 16 inputs and 8 outputs. The non-blocking ar-
Fast slew rate 2200 V/μs
chitecture allows an output to be connected to any input,
Channel to channel crosstalk (10/ 100 MHz)−70/ −52 d Bc
including an input that is already selected. With fully buffered
All Hostile Crosstalk (10/ 100 MHz) −55/−45 d Bc
inputs the LMH6583 can be impedance matched to nearly any
Easy to use serial programming 4 wire bus
source impedance. The buffered outputs of the LMH6583 can
Two programming modes
drive up to two back terminated video loads (75Ω load). The Serial & addressed modes
outputs and inputs also feature high impedance inactive Symmetrical pinout facilitates expansion.
states allowing high performance input and output expansion Output current ±60 m A for array sizes such as 16 x 16 or 32 x 8 by combining two Two gain options AV = 1 or AV = 2 devices. The LMH6583 is controlled with a 4 pin serial inter- face. Both single serial mode and addressed chain modes are
Applications
available.
Studio monitoring/production video systems
The LMH6583 comes in a 64-pin thermally enhanced TQFP
package. It also has diagonally symmetrical pin assignments Conference room multimedia video systems
to facilitate double sided board layouts and easy pin connec- KVM (keyboard video mouse) systems tions for expansion.
Security/surveillance systems Multi antenna diversity radio Video test equipment Medical imaging Wide-band routers & switches
Connection Diagram Block Diagram
LMH® is a registered trademark of National Semiconductor Corporation. TRI-STATE® is a registered trademark of National Semiconductor Corporation.
© 2007 National Semiconductor Corporation www.national.com
