National LM733 LM733C Differential Amplifier Data Sheet
Summary
This comprehensive guide details the LM733/LM733C Differential Amplifier, a high-performance, wide-band video amplifier. Designed as a two-stage differential input and output circuit, it offers selectable gains (10, 100, 400) and robust performance across industrial and military temperature ranges. The manual provides comprehensive specifications, including electrical characteristics, absolute maximum ratings, and detailed application notes for engineers developing memory element drivers, pulse amplifiers, or critical linear gain stages requiring high stability and low distortion.

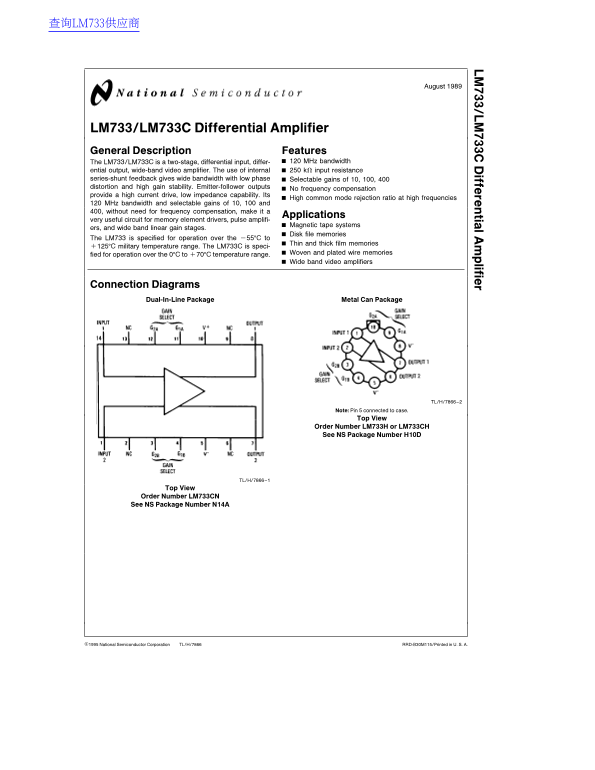

Page 1 Text Content
查询LM733供应商
August
iffe re tia lifie
LM733/LM733C Differential Amplifier General Description Features
The LM733/LM733C is two-stage, differential input, differ- MHz bandwidth
ential output, wide-band video amplifier. The use of internal k X input resistance series-shunt feedback gives wide bandwidth with low phase Selectable gains of 10, 100, distortion and high gain stability. Emitter-follower outputs No frequency compensation provide high current drive, low impedance capability. Its
High common mode rejection ratio at high frequencies
MHz bandwidth and selectable gains of 10, and 400, without need for frequency compensation, make it
Applications
very useful circuit for memory element drivers, pulse amplifi-
Magnetic tape systems
ers, and wide band linear gain stages.
Disk file memories
The LM733 is specified for operation over the b55§C to
Thin and thick film memories
a125§C military temperature range. The LM733C is speci-
fied for operation over the 0§C to a70§C temperature range. Woven and plated wire memories Wide band video amplifiers
Connection Diagrams
Dual-In-Line Package Metal Can Package
TL/H/7866–2
Note: Pin connected to case.
Order Number LM733H or LM733CH See NS Package Number H10D
TL/H/7866–1
Order Number LM733CN See NS Package Number N14A
C1995 National Semiconductor Corporation TL/H/7866 RRD-B30M115/Printed in U. S. A.
Page Summary Contents For National LM733 LM733C Differential Amplifier Data Sheet
Manual Details
| Brand | National |
|---|---|
| Pages | 6 |
| File Size | 170.27 KB |
| Published | June 18, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the key difference between the LM733 and LM733C?
The LM733 is designed for a military temperature range (55°C to 125°C), while the LM733C operates in a commercial range (0°C to 70°C).
What kinds of applications are suitable for this amplifier?
It is recommended for memory element drivers, pulse amplifiers, and wide band linear gain stages like magnetic tape systems erasers.
What is the maximum operating bandwidth?
The device features a specified wide bandwidth up to 120 MHz.
Does the TO-100 package require special setup considerations?
Yes, for operation at elevated temperatures, devices in the TO-100 package must be derated based on thermal resistance.
