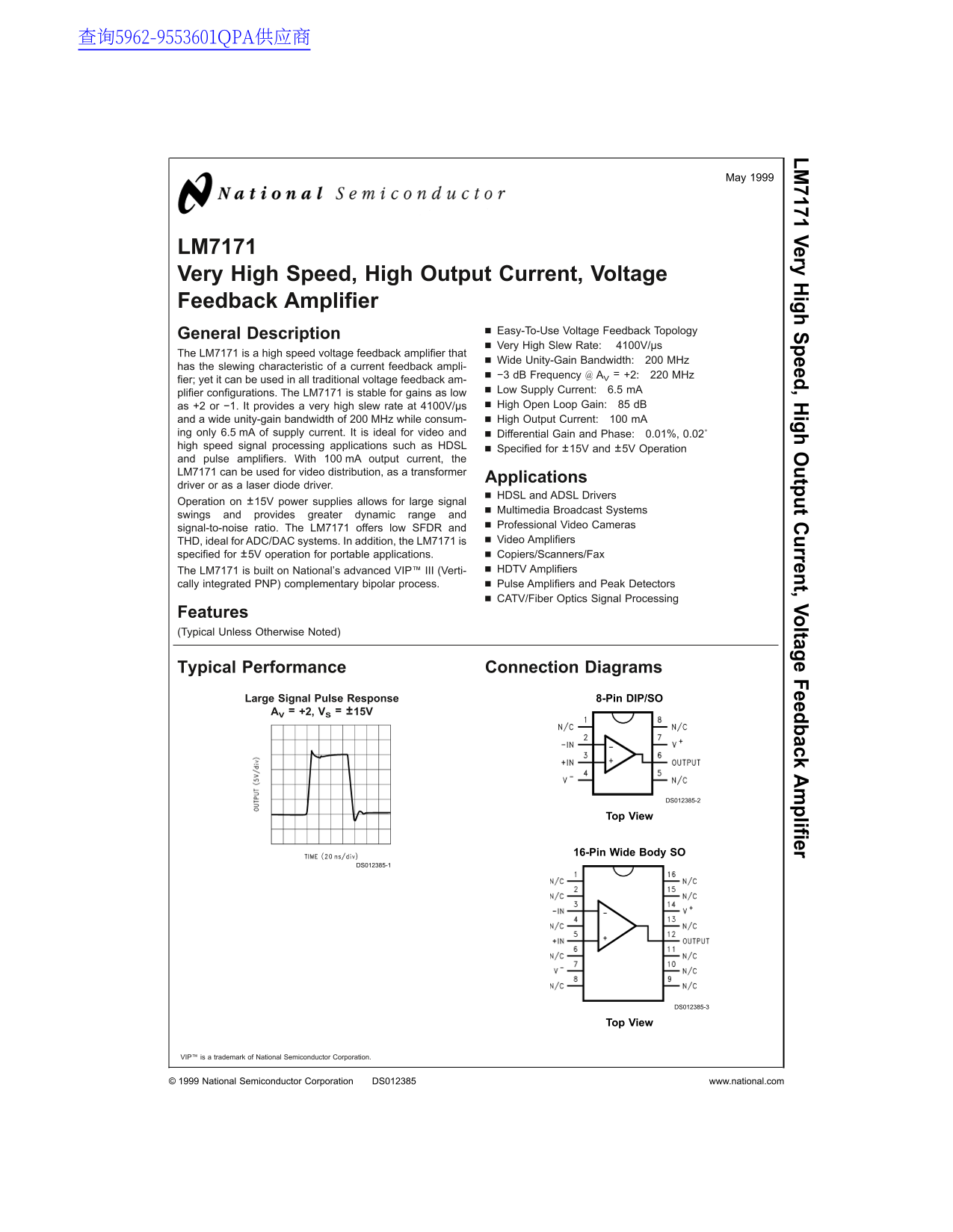

National LM7171 Data Sheet
Summary
This high-performance voltage feedback amplifier is engineered for demanding professional applications, offering exceptional speed with a 200 MHz bandwidth and 4100V/μs slew rate. Ideal for video distribution, HDSL/ADSL drivers, and broadcast multimedia systems requiring stable signal integrity. The accompanying technical manual provides comprehensive operational specifications, detailed electrical characteristics, packaging information, and usage guidelines, ensuring proper implementation in high-speed signal processing and professional camera equipment.
Manual Details
| Brand | National |
|---|---|
| Pages | 20 |
| File Size | 619.13 KB |
| Published | July 22, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the LM7171 ideal for in signal processing applications?
It is suitable for high speed applications such as HDSL/ADSL drivers, video distribution, and laser diode drivers.
What are its main performance specifications?
The device features a very high slew rate of 4100V/µs and a wide unity-gain bandwidth of 200 MHz.
What operational voltage ranges does the LM7171 support?
It is specified for operation with supplies ranging from ±15V down to ±5V, allowing use in portable applications.
How does it perform regarding output current?
It provides a high output current of 100 mA at $\text{R} = 100\Omega$ (open loop).
