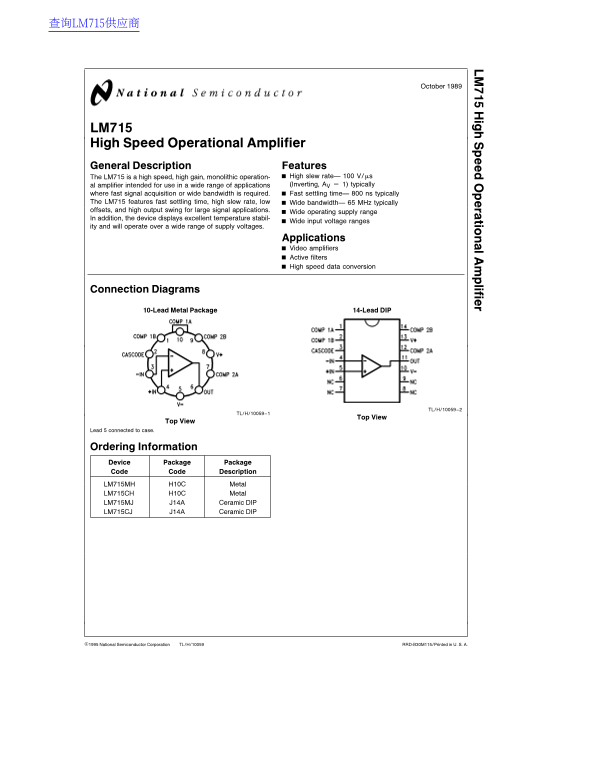

ig ra tio lifie LM715 High Speed Operational Amplifier General Description Features
The LM715 is high speed, high gain, monolithic operation- High slew rateÐ V/ms al amplifier intended for use in wide range of applications (Inverting, AV 1) typically
where fast signal acquisition or wide bandwidth is required. Fast settling timeÐ ns typically The LM715 features fast settling time, high slew rate, low Wide bandwidthÐ MHz typically offsets, and high output swing for large signal applications. Wide operating supply range In addition, the device displays excellent temperature stabil-
Wide input voltage ranges
ity and will operate over wide range of supply voltages.
Applications Video amplifiers Active filters High speed data conversion
Connection Diagrams
10-Lead Metal Package 14-Lead DIP
TL/H/10059–2
TL/H/10059–1
Lead connected to case.
Ordering Information Device Package Package Code Code Description LM715MH H10C Metal LM715CH H10C Metal LM715MJ J14A Ceramic DIP LM715CJ J14A Ceramic DIP
