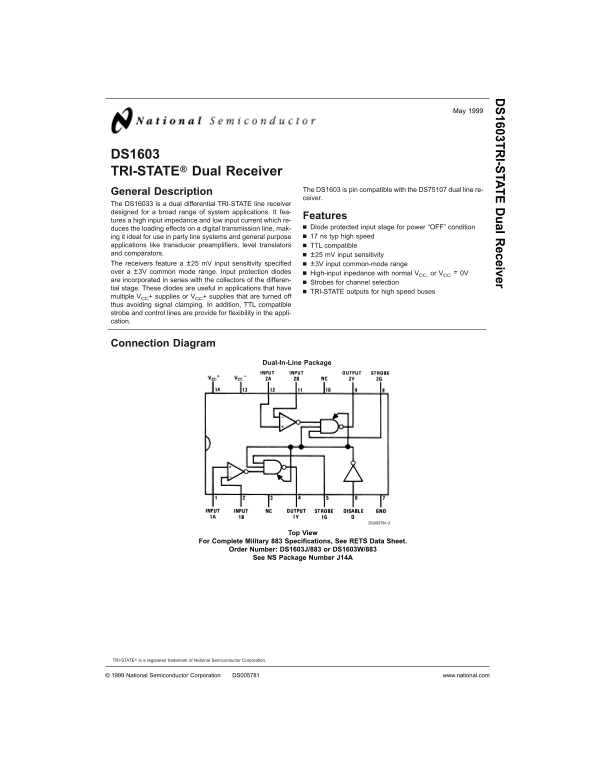

1603TR I-S TA TE ual R eceiver
DS1603 TRI-STATE® Dual Receiver
The DS1603 is pin compatible with the DS75107 dual line re-
General Description
ceiver.
The DS16033 is dual differential TRI-STATE line receiver designed for broad range of system applications. It fea-
Features
tures high input impedance and low input current which re-
duces the loading effects on digital transmission line, mak- Diode protected input stage for power “OFF” condition ing it ideal for use in party line systems and general purpose ns typ high speed
applications like transducer preamplifiers, level translators TTL compatible and comparators. ±25 m V input sensitivity
The receivers feature ±25 m V input sensitivity specified ±3V input common-mode range
over ±3V common mode range. Input protection diodes High-input inpedance with normal VCC, or VCC 0V are incorporated in series with the collectors of the differen-
Strobes for channel selection
tial stage. These diodes are useful in applications that have
TRI-STATE outputs for high speed buses
multiple VCC+ supplies or VCC+ supplies that are turned off thus avoiding signal clamping. In addition, TTL compatible strobe and control lines are provide for flexibility in the appli- cation.
Connection Diagram
Dual-In-Line Package
DS005781-2
For Complete Military Specifications, See RETS Data Sheet.
Order Number: DS1603J/883 or DS1603W/883
See NS Package Number J14A
TRI-STATE® is registered trademark of National Semiconductor Corporation.
National Semiconductor Corporation DS005781 www.national.com
