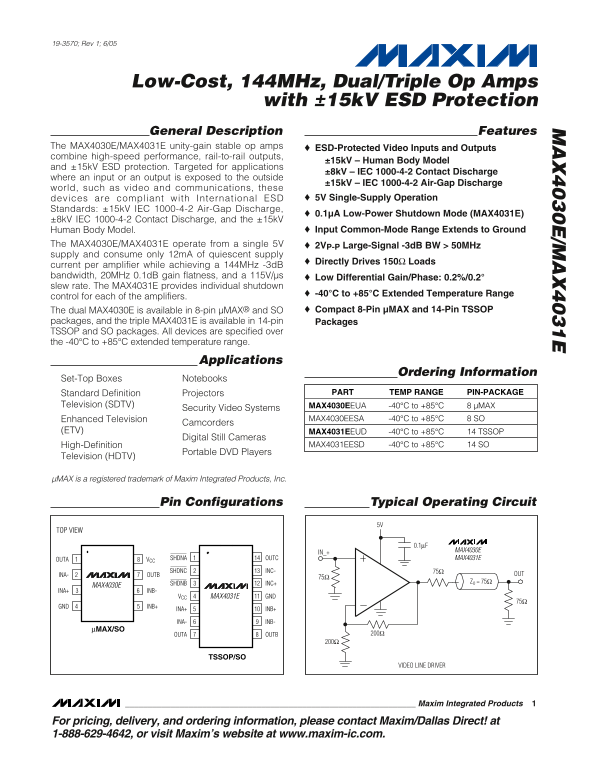

Page 1 Text Content
19-3570; Rev 1; 6/05
Low-Cost, 144MHz, Dual/Triple Op Amps
with ±15k V ESD Protection
General Description Features
The MAX4030E/MAX4031E unity-gain stable op amps ESD-Protected Video Inputs and Outputs combine high-speed performance, rail-to-rail outputs,
±15k V – Human Body Model
and ±15k V ESD protection. Targeted for applications
±8k V – IEC 1000-4-2 Contact Discharge
where an input or an output is exposed to the outside
±15k V – IEC 1000-4-2 Air-Gap Discharge
world, such as video and communications, these
devices are compliant with International ESD 5V Single-Supply Operation
Standards: ±15k V IEC 1000-4-2 Air-Gap Discharge,
0.1µA Low-Power Shutdown Mode (MAX4031E)
±8k V IEC 1000-4-2 Contact Discharge, and the ±15k V
Human Body Model. Input Common-Mode Range Extends to Ground
The MAX4030E/MAX4031E operate from a single 5V 2VP-P Large-Signal -3d B BW > 50MHz supply and consume only 12m A of quiescent supply
Directly Drives 150Ω Loads
current per amplifier while achieving a 144MHz -3d B bandwidth, 20MHz 0.1d B gain flatness, and a 115V/µs Low Differential Gain/Phase: 0.2%/0.2° slew rate. The MAX4031E provides individual shutdown
-40°C to +85°C Extended Temperature Range
control for each of the amplifiers.
The dual MAX4030E is available in 8-pin µMAX® and SO Compact 8-Pin µMAX and 14-Pin TSSOP
packages, and the triple MAX4031E is available in 14-pin Packages TSSOP and SO packages. All devices are specified over the -40°C to +85°C extended temperature range.
Applications
Ordering Information
Set-Top Boxes Notebooks
Standard Definition Projectors PART TEMP RANGE PIN-PACKAGE
Television (SDTV) MAX4030EEUA -40°C to +85°C 8 µMAX
Security Video Systems
Enhanced Television MAX4030EESA -40°C to +85°C 8 SO
Camcorders
(ETV) MAX4031EEUD -40°C to +85°C 14 TSSOP
Digital Still Cameras
High-Definition MAX4031EESD -40°C to +85°C 14 SO
Portable DVD Players
Television (HDTV)
µMAX is a registered trademark of Maxim Integrated Products, Inc.
Pin Configurations Typical Operating Circuit
TOP VIEW
MAX4030E
OUTA VCC SHDNA OUTC MAX4031E
SHDNC INC- 75Ω
OUTBINA- OUT
SHDNB INC+ Zo = 75Ω
MAX4030E
INA+ INB-
MAX4031E GNDVCC
INB+GND
INA+ INB+
INA- INB-
µMAX/SO
OUTBOUTA 200Ω
TSSOP/SO
VIDEO LINE DRIVER
Maxim Integrated Products
For pricing, delivery, and ordering information, please contact Maxim/Dallas Direct! at 1-888-629-4642, or visit Maxim’s website at www.maxim-ic.com.
